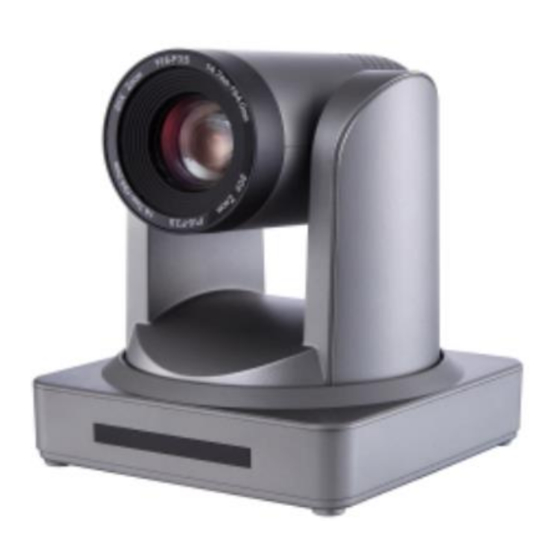

BG-LVPTZ-30XHSP
HD Color Video Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-LVPTZ-30XHSP and is the answer not in the manual?

Questions and answers

Related Manuals for BZB Gear BG-LVPTZ-30XHSP

Summary of Contents for BZB Gear BG-LVPTZ-30XHSP

  • Page 1 BG-LVPTZ-30XHSP HD Color Video Camera User Manual...
  • Page 2 Attention Electric Safety Installation and operation must accord with electric safety standard Caution to transport Avoid stress, vibration and soakage in transportation, storage and installation. Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A .Polarity of the power supply drawing. Careful of installation Never move the camera by seizing the camera head.

  • Page 3: Table Of Contents

    Content 1. Fast Installation ..............................4 1.1 Camera Interface Explanation ........................4 1.2 Power on initial configuration ........................4 1.3 Video Output ............................4 2. Product overview ............................... 5 2.1 Product Introduction ..........................5 2.1.1 Dimension ............................. 5 2.1.2 Accessories ............................ 5 2.2 Main Features ............................
  • Page 4 4.2.5 Video configuration........................24 4.2.6 Network configuration ......................... 26 4.2.7 System configuration ........................26 4.2.8 Logout ............................27 4.2.9 Wireless network ......................... 27 5. Serial Communication Control .......................... 28 5.1 VISCA protocol list ..........................28 5.1.1 Camera return command ......................28 5.1.2 Camera control command ......................

  • Page 5: Fast Installation

    1. Fast Installation 1.1 Camera Interface Explanation Figure 1.1 Interface RS485 Input (left +, right-) Camera Lens Audio Input Interface Camera Base 3G-SDI interface Remote Controller Receiver Light HDMI Interface Bottom Dial Switch 10/100M Network Interface Tripod Screw Hole DC12V Input Power Supply Socket RS232 Control Interface (input) RS232 Control Interface (output) 1.2 Power on initial configuration...
  • Page 6 a. HDMI Video Cable Connection: refer to No.11 in Figure1.1. b. Connect the camera and the monitor via HDMII video cable; video output is available after camera self-test. 3) 3G-SDI Video Output a. 3G-SDI video cable connection: refer to No.10 in Figure1.1 b.
  • Page 7 2. Upside down mount step...

  • Page 8: Product Overview

    2. Product overview 2.1 Product Introduction 2.1.1 Dimension Figure 2.2 Camera dimension 2.1.2 Accessories When you unpack, check that all the supplied accessories are included:...

  • Page 9: Main Features

    Accessories Power adapter 1piece RS232 cable 1 piece User manual 1 Standard Double-side glue shim 4pcs Warranty card 1 piece BG-LVPTZ-30XHSP IR Remote controller 1 piece Wireless controller 1 piece Optional Wall mounting bracket Upside-down mounting bracket(optional) Cascade cable USB2.0 Video cable: If need USB2.0 cable to provide power but not a power adapter, USB2.0 Video cable with two ports is needed, among which red port is for power supply and black port for transmitting USB video signals.

  • Page 10: Network Performance

    Emergency command systems. 2.2.2 Network performance Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding. Multiple Audio/Video Compression: Support H.264/H.265 video compression; AAC,MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channel 1920x1080p with 30 fps compression. Multiple network protocol: Support ONVIF,RTSP,RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS) 5G WIFI function: If the product contains 5G wifi module, you can set up a wireless wifi connection in a webpage, the specific...

  • Page 11: Interface Instruction

    Pan Rotation ±170° Tilt Rotation -30°～+90° Pan Control Speed 0.1 -180°/sec Tilt Control Speed 0.1-80°/sec Preset Speed Pan: 60°/sec, Tilt: 30°/sec Preset Number 255 presets (10 presets by remote controller) Other Parameter Supply Adapter AC110V-AC220V to DC12V/2A Input Voltage DC12V±10% Input Current 1A(Max) Consumption...

  • Page 12: Rs-232 Interface

    Figure 2.6 Bottom Dial Switch diagram Figure 2.7 Bottom Dial Switch diagram Two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2 Table 2.2 Dial Switch setting Explanation Working mode Updating mode 2.4.3 RS-232 Interface 1) RS-232C interface specification as shown below...
  • Page 13 System Ground Receive Data System Ground IR Commander Signal IR OUT No Connection 3) RS232 (DB9) Port Definition Definition Port Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator VISCA networking as shown below: Camera cascade connection method...

  • Page 14: Application Instruction

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera return to the HOME position (middle position for P/T),and lens finish zoom in/out, the auto-testing is finished. IR led will also stop flashing. If the preset 0 is set, camera will rotate to the 0 preset position after initial configuration.

  • Page 15: Remote Controller

    3.2 Remote Controller 3.2.1 Keys Instruction 1. Standby Key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.

  • Page 16: Applications

    3.2.2 Applications Finishing initialization, it can receive and execute the IR commands. Press the remote controller button, the indicator light is flashing; release the button, the indicator light stops flashing. Users can control the pan/tilt/zoom, setting and running preset positions via the IR remote controller. Key Instruction: 1.

  • Page 17: Menu Setting

    6) Presets Setting, Running, Clearing 1. Preset setting: to set a preset position, the users should press the “【SET PRESET】” key first and then press the number key 0-9 to set a relative preset, Note: 10 preset positions in total are available by remote controller.

  • Page 18: System Setting

    VERSON: camera version setting Restore Default: Reset setting [↑↓] Select: for selecting menu [← →] Change Value: for modify parameters [MENU] Back: Press [MENU] to return [Home] OK: Press [Home] to confirm 3.3.2 System Setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System Setting) as shown below, SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 19 1) EXPOSURE SETTING Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follow, EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Anti-Flicker 50Hz Gain Limit [↑↓]Select [← →]Change Value Mode : Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV : On/Off (only available in auto mode) Compensation Level: -7~7 (only available in auto mode when EV is ON) BLC: ON/OFF for options (only available in auto mode)
  • Page 20 Saturation: 60%,70%,80%,90%,100%,110%,120%,130% Hue: 0~14 AWB Sensitivity: high/middle/low Color Style: Default, style1~4. Color Temp: high/middle/low 3) IMAGE Move the pointer to the (IMAGE) in the Menu, click the【HOME】and enter the (IMAGE) as follow, IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Brightness Contrast Sharpness Flip-H Flip-V B&W-Mode Color Gamma Default...

  • Page 21: P/T/Z

    NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D Dynamic Hot Pixel [← →]Change [↑↓]Select Value [Menu]Back 2D Noise Reduction: Auto, close, 1~7 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5 3.3.4 P/T/Z Move the pointer to the (P/T/Z) in the Main Menu, click the【HOME】and enter the (P/T/Z) as follow, P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...

  • Page 22: Version

    VIDEO FORMAT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 720P30 720P25 1080P59.94 1080I59.94 1080P29.97 720P59.94 720P29.97 ↑ ↓ ]Select [Menu]Back [Home]OK Note: 1. S: 1080P60 Downward Compatibility; M: 1080P30 Downward Compatibility 2. Exit menu after modifying parameter to save it after powered off 3.3.6 Version Move the pointer to the (VERSION) in the Main Menu, click the【HOME】and enter the (VERSION) as follow, VERSION...

  • Page 23: Network Connection

    4. Network Connection 4.1 Connecting Mode Direct connection: Connect the camera and computer by network connecting cable. Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser. Note: Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
  • Page 24 Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding. Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added.
  • Page 25 Click “OK” and open the DOS command window, input ping 192.168.5.26 and press Enter key, it will show message as below: which means network segment adding is succeed. User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163,then press Enter key.

  • Page 26: Ie Log In

    4.2 IE Log In 4.2.1 Web client 1) Web client Log In Input the IP address 192.168.5.163 of the device in the address filed of browser and click Enter button to enter into Web Client login page as below picture. User can login as administrator and normal user. If login as administrator (Default User name/Password: admin), users can preview, playback, configuration and cancel in the Web Client;...

  • Page 27: Video Configuration

    Including audio compressing format,sampling frequency,sampling precision,compressing code rate Audio configure settings etc. Including video encoding,video parameters,character-overlapping,character size,video output Video configure setting etc. Network configure Including basic parameters,Ethernet,DNS,wireless network setting, GB28181 etc. Including equipment property,system time,user management,version update,Reset,Reboot device System configure settings etc.
  • Page 28 Focus range: set the focus range (the default middle,the upper and lower optional) Focus Sensitivity: Set the focus sensitivity (default is low,high,medium optional) b,Exposure:Eexposure mode,exposure compensation,back light compensation,anti-flicker,gain limit,wide dynamic,shutter speed,aperture value and brightness can be set. Exposure Mode: Set the exposure mode (the default automatic,manual,shutter priority,aperture priority,Brightness priority optional) Exposure compensation: Exposure compensation setting is active when it is auto status (default is off).

  • Page 29: Network Configuration

    Output Format: Set the video output format (default 1080P60,1080P50,1080P30,1080P25,1080I60,1080I50,720P60,720P50,720P30,720P25,1080P59.94,1080I59.94,1080P29.97,720P59. 94,720P29.97 optional). Click on the "Save" button,it will be valid when display "Save successful". 7) USB subtitle Display subtitles: Check the box (after checking, USB video output is displayed on the screen caption content) Font color: Default white, black.

  • Page 30: Logout

    System Language: Set the system language (default Simplified Chinese,English optional).Need to re-login after modify and save the setting. Click on the "Save" button,it will be valid when display "Save successful". 2) System Time Date Format: Set the date format (YYYY-MM-DD default That year - month - day,MM-DD-YYYY namely Month - Day - Year,DD-MM-YYYY date - month - year Optional).

  • Page 31: Serial Communication Control

    Network interface enable: can check,to set the following items after checked. DHCP:can check,if check,it can obtain IP automatically. IP address:set wirelss WIFI IP(default 192.168.1.250,if checked DHCP,IP could assigned automatically) Note:wireless IP address can not be in the same segment with wired IP address. Subnet Mask: Set the wireless IP subnet mask (default255.255.255.0) Default Gateway: Set the wireless IP default gateway (default 192.168.1.1) SSID: The user can modify their own (the default test)
  • Page 32 Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard)
  • Page 33 Command Function Command packet Note Down 8x 01 04 0A 03 FF Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting CAM_Iris Down 8x 01 04 0B 03 FF...

  • Page 34: 3,Inquiry Command

    Command Function Command packet Note 8x 01 7D 01 03 00 00 FF IR(remote commander)receive message via the IR_ReceiveReturn 8x 01 7D 01 13 00 00 FF VISCA communication ON/OFF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF...
  • Page 35 CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AEModeInq 8x 09 04 39 FF...

  • Page 36: Pelco-D Protocol Command List

    C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E： 720P29.97 7:1080P25 ww: Pan Max Speed zz: Tilt Max Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Speed y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Tilt Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF Position Note:[X] in the above table indicates the camera address to be operated,【y】=【x + 8】.

  • Page 37: Camera Maintenance And Troubleshooting

    Right 0xA0 Address 0x00 0x02 Pan Speed Tilt Speed 0xAF Upleft 0xA0 Address 0x00 0x0C Pan Speed Tilt Speed 0xAF Upright 0xA0 Address 0x00 0x0A Pan Speed Tilt Speed 0xAF DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF DownRight 0xA0 Address...
  • Page 38 4) Remote controller can not work ——a,Remote control address is set to 1 (if the machine is set back to the factory defaults,remote control addresses need to be back to 1 too) b,Check whether the battery is installed on the remote controller or low . c,Check the camera working mode is the normal operating mode d,Check the menu whether is closed,camera control through remote controller is only available after exiting the menu.If video output from LAN,menu will not be displayed,menu will automatically exists 30s later,then it can be controlled by remote controller.

  • Page 39: Warranty

    7. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*! Taking advantage of this program is simple: 1.

  • Page 40: Mission Statement

    8. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.

  • Page 41: Copyright Notice

    9. Copyright Notice All the contents of this manual and the copyright ownership belong to BZBGEAR. Without the approval of BZBGEAR, no one can copy, imitate, reproduce, or translate arbitrarily. This manual does not have any form of warranty, expressed or implied. Specifications and information in this manual is for informational purposes only, and the content can be updated at any time without notice.
