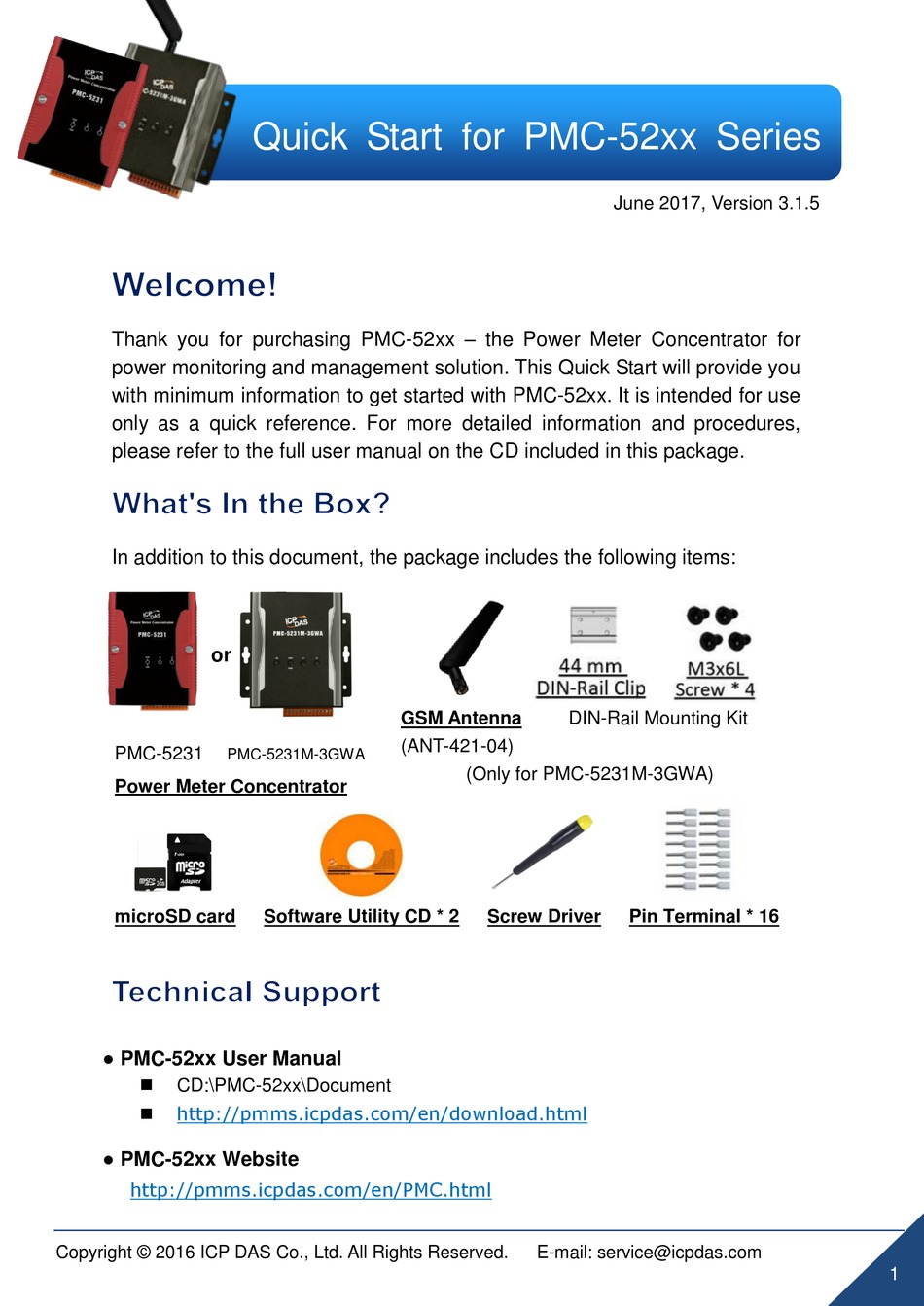

ICP DAS USA PMC-52 Series Quick Start Manual

Power meter concentrator
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Thank you for purchasing PMC-52xx – the Power Meter Concentrator for
power monitoring and management solution. This Quick Start will provide you
with minimum information to get started with PMC-52xx. It is intended for use
only as a quick reference. For more detailed information and procedures,
please refer to the full user manual on the CD included in this package.
In addition to this document, the package includes the following items:
or

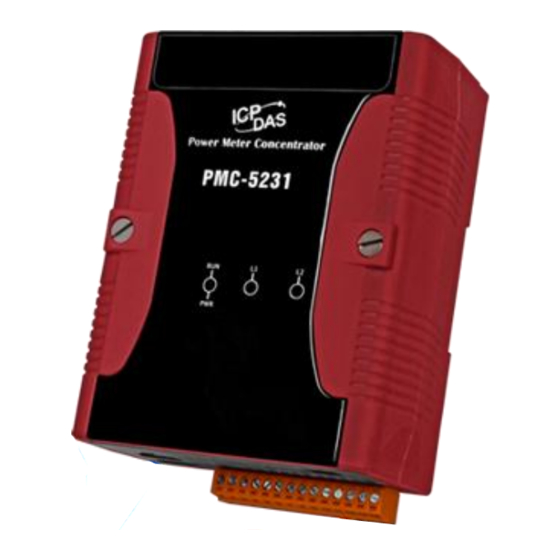

PMC-5231
PMC-5231M-3GWA
Power Meter Concentrator
microSD card
● PMC-52xx User Manual
CD:\PMC-52xx\Document
http://pmms.icpdas.com/en/download.html
● PMC-52xx Website
http://pmms.icpdas.com/en/PMC.html
Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved.
Quick Start for PMC-52xx Series
GSM Antenna
(ANT-421-04)
Software Utility CD * 2
June 2017, Version 3.1.5
DIN-Rail Mounting Kit
(Only for PMC-5231M-3GWA)
Screw Driver
Pin Terminal * 16
E-mail: service@icpdas.com
1
