ICP DAS USA PM-3133P Quick Start Manual

Hide thumbs Also See for PM-3133P:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

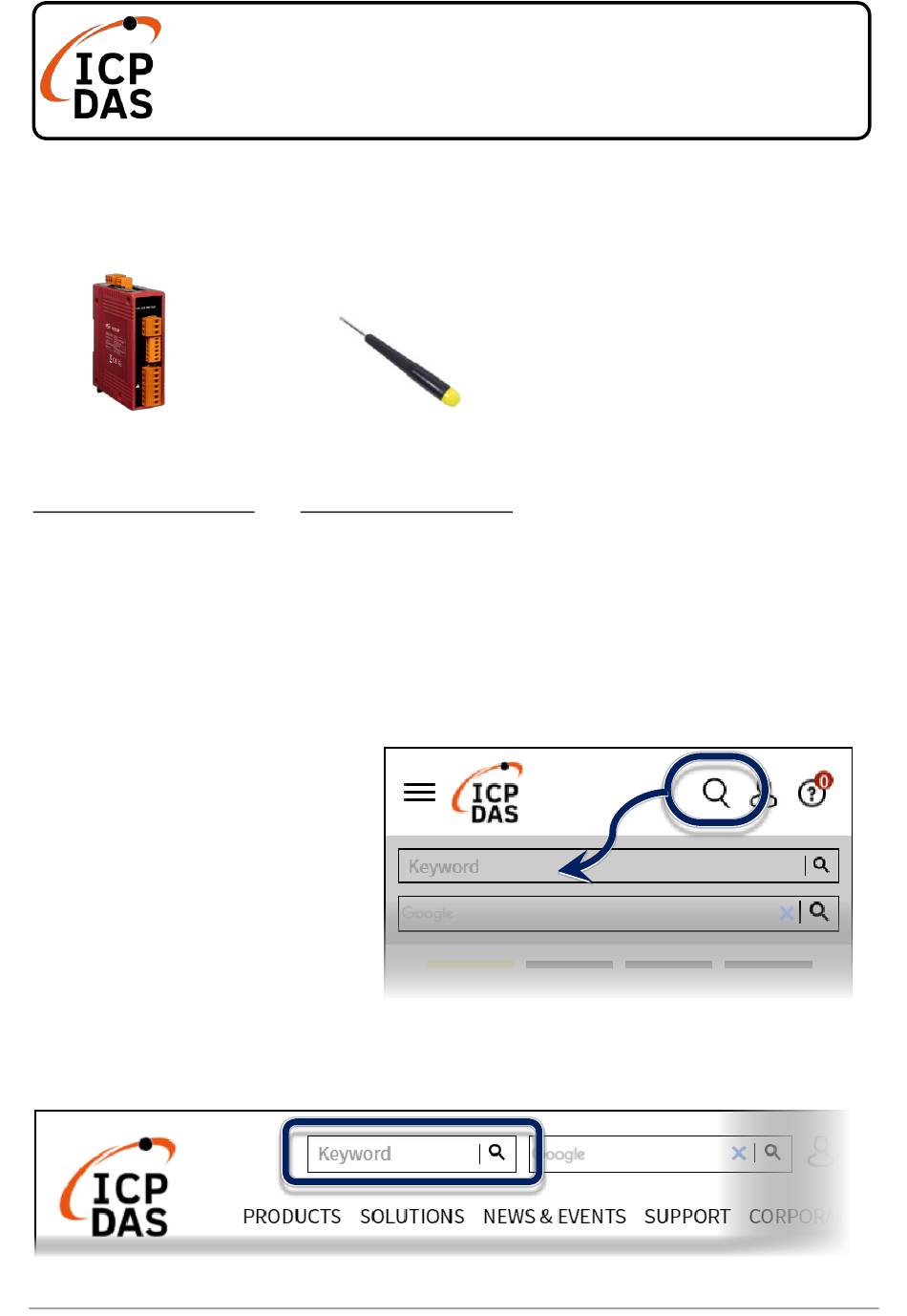

Packing List
In addition to this guide, the package includes the following items:
PM-3133P /
PM-3133iP
Technical Support
service@icpdas.com
www.icpdas.com
 For Desktop Web
PM-3133P/PM-3133iP Quick Start
Screw Driver * 1
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
 For Mobile Web
Model Name
Model Name
v1.0, April 2025
P1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-3133P and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA PM-3133P

Summary of Contents for ICP DAS USA PM-3133P

  • Page 1 PM-3133P/PM-3133iP Quick Start v1.0, April 2025 Packing List In addition to this guide, the package includes the following items: PM-3133P / PM-3133iP Screw Driver * 1 Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.

  • Page 2: Caution And Warning

    Please ensure that the arrow direction marking on the CT aligns with the current flow direction (K→L). Note: it must be in the same direction. Connect the voltage input terminal N C B A. for PM-3133P/PM-3133iP, in the three phase order as follows on N C B A.

  • Page 3: Voltage Input

    2.3.Current Input 1. The external CT’s are fragile, please handle with care. 2. The current input of PM-3133P/PM-3133iP series is in mV range. The other CT’s, for example, from panel will damage the instrument due to its large current (around 5A) 3.
  • Page 4 2.4.Wiring  1P2W-1CT  1P3W-2CT...
  • Page 5  3P3W-3CT  3P3W-2CT (If phase B is in a floating state, it may pick up induced voltage signals. To avoid this, phase B can be connected to the neutral (N) line.)
  • Page 6  3P4W-3CT...
  • Page 7 3. Communication 3.1.RS-485 & CAN setting  Default setting for RS-485: 19200, n, 8, 1 ,for CAN: 125K bps  DIP switch (SW1-SW6) is used for Modbus address(or CANopen Node ID) setting, default is 1, i.e. all OFF For example: Modbus address(or CANopen Node ID) is 10，find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF ...

  • Page 8: Questions And Answers

     Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used) PM-3133P PM-3133P -MTCP/ Models PM-3133iP PM-3133iP -MTCP Wiring SW 9 SW 10 SW 1 SW 2 Software setting 3P3W-2CT 3P3W-3CT 3P4W-3CT Ethernet default settings：...

This manual is also suitable for:

Pm-3133ip
