Packing List

In addition to this guide, the package includes the following items:

PM-3033/

PM-3033-CPS/

PM-3033-MTCP

Technical Support

service@icpdas.com

www.icpdas.com

 For Desktop Web

Screw Driver * 1

Resources

How to search for drivers, manuals and

spec information on ICP DAS website.

 For Mobile Web

Model Name

PM-3033 Quick Start

v1.3, February 2025

Need help?

Do you have a question about the PM-3033 and is the answer not in the manual?

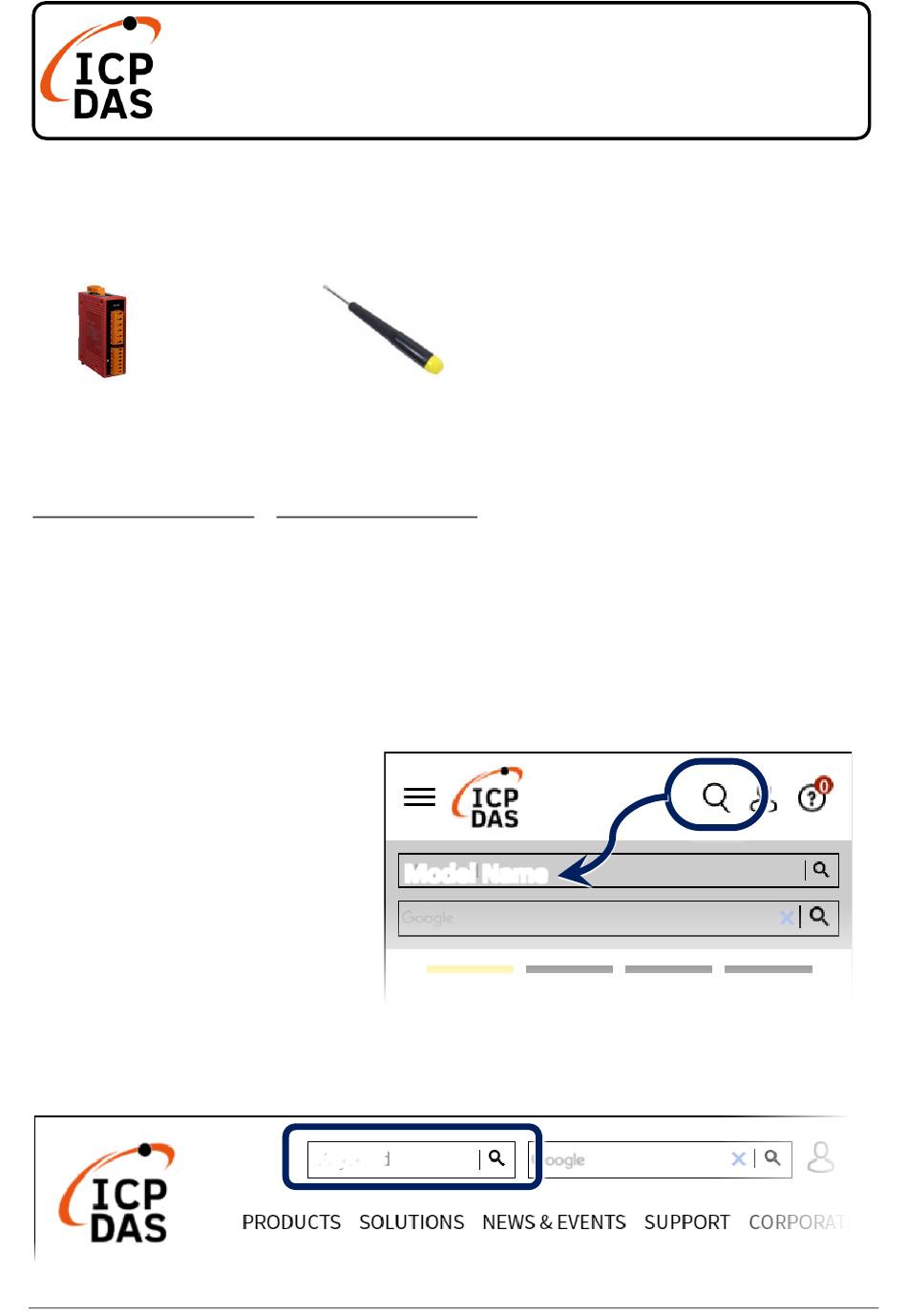

Page 1 PM-3033 Quick Start v1.3, February 2025 Packing List In addition to this guide, the package includes the following items: Screw Driver * 1 PM-3033/ PM-3033-CPS/ PM-3033-MTCP Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
Page 2: Caution And Warning
 Please read this operation manual carefully before using.  Please re-confirm the measure position.  Reconfirm the RST (ABC) phase sequence of the power system.  Meter auxiliary power for PM-3033 series is DC +12V ~+48V. 2.2.Voltage Input 1. Input Voltage up to 500V.
Page 3 Note: it must be in the same direction. Connect the voltage input terminal N C B A. for PM-3033 series, in the three phase order as follows on N C B A. 800A/5A Primary CT Installation and Wiring...
Page 4 2.4.Wiring  1P2W-1CT  1P3W-2CT...
Page 5  3P3W-3CT  3P3W-2CT...
Page 6  3P4W-3CT...
Page 7 3. Communication 3.1.RS-485 & CAN Setting  Default setting for RS-485: 19200, n, 8, 1 ,for CAN: 125K bps  DIP switch (SW1-SW6) is used for Modbus address(or CANopen Node ID) setting, default is 1, i.e. all OFF For example: Modbus address(or CANopen Node ID) is 10，find the table of DIP switch 1-6 is ON, OFF, OFF, ON, OFF, OFF ...
Page 8 250k bps (Default) bps 38400 bps 500k bps 115200 bps 1M bps Select the different wiring mode (Please select the Software setting, if 1P2W-1CT or 1P3W-2CT is used) PM-3033/ Models PM-3033-MTCP PM-3033-CPS Wiring SW 9 SW 10 SW 1 SW 2...
