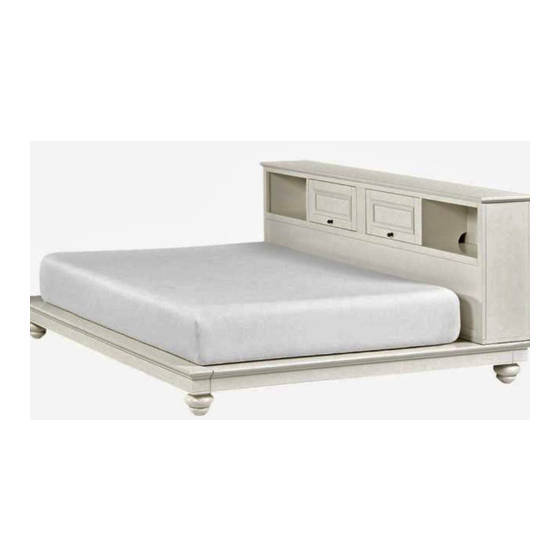

Chelsea Platform Bed
Pre-assembly:
•
Please read all instructions before
beginning assembly.
•
Two-adult assembly is recommended.
•
Save all packing materials until assembly
complete to avoid accidentally discarding
smaller parts or hardware.
Parts included:
A – Storage - 1 pc
D – Left Side Rail - 1 pc
G – Slat Roll - 1 pc
B – Head Rail - 1 pc
E – Right Side Rail - 1 pc
H – Support Rail - 2 pcs
www.pbteen.com
C – Foot Rail - 1 pc
F – Center Rail - 1 pc
I – Leg- 4 pcs
1
Advertisement
Table of Contents
Related Manuals for PB TEEN Chelsea
Summary of Contents for PB TEEN Chelsea
- Page 1 Chelsea Platform Bed Pre-assembly: • Please read all instructions before beginning assembly. • Two-adult assembly is recommended. • Save all packing materials until assembly complete to avoid accidentally discarding smaller parts or hardware. Parts included: A – Storage - 1 pc C –...
- Page 2 Hardware Included: J – Large Bolts (M8) - 8 pcs K – Small Bolts (M6) - 12 pcs L – Large Spring Washer(M8) - 8 pcs M – Small Spring Washer (M6)-12 pcs O – Small Flat Washer (M6) - 12 pcs N –...
- Page 3 4. Assemble the Left Side Rail (D) to the Foot Rail (C) by inserting 3 Iron Dowels (Q) into the pre-drilled holes of the Left Side Rail (D) and the Foot Rail (C), as shown below. Insert a Large Bolt (J) a Large Spring Washer (L) and a Large Flat Washer (N) through the pre-drilled holes of the Foot Rail (C) and into the pre-drilled holes of the Left Side Rail (D).
- Page 4 6. Insert the exposed screw of the Leg (I) into the pre-drilled hole on each corner of the bed rail. Turn clockwise until tight. 7. Turn the Platform Bed upright and assemble the Storage (A) to the bed by placing the Storage (A) onto the top of the Right Side Rail (E) and Center Side Rail (F), making sure to align the pre- drilled holes of the Right Side Rail (E) with the pre-drilled holes on the underside of the Storage (A).
- Page 5 8. Lay the Slat Roll (G) on the inner ledges of the Left Side Rail (D) and the Center Rail (F). Using a Phillips Head Screwdriver, fasten the Slat Roll (G) onto the rails with 32 Wood Screw (P), as shown below.
