Summary of Contents for PB TEEN CHELSEA

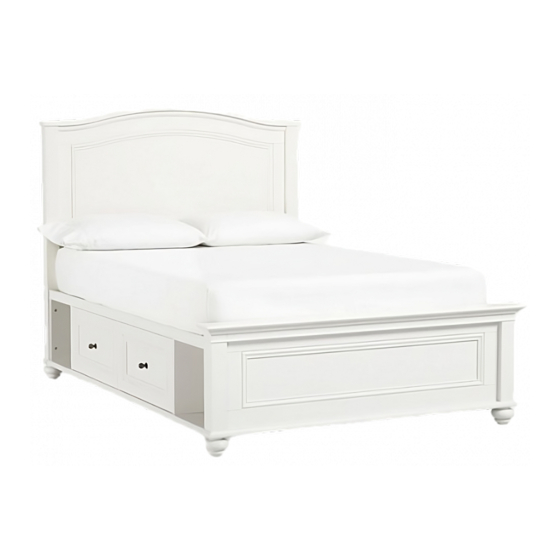

- Page 1 CHELSEA STORAGE BED ASSEMBLY INSTRUCTIONS Date: 2013-Jul.-08 Rev: www.pbteen.com Page 1 of 6...
- Page 2 Important Safety Instructions: • Please read all instructions carefully before assembling this Storage Bed. • For your safety, assembly by two or more adults is strongly recommended. • Keep these instructions for future use. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Assembly Instruction Steps: 1. Place all parts on a soft, scratch-free surface such as a rug or carpet. 2. Determine the desired location of the bed and prepare all parts at this location before beginning assembly. 3. Attach Headboard Panel (C) and Headboard Rail (D) to Headboard Post (A&B) by inserting 10 sets of: Half Moon Washer (J), Spring Washer (N), and Long Bolt (L), as seen in the illustration below 4.
- Page 4 Hardware needed for 2 Storages 11. Secure Storage (F) to the Headboard (from Step #4) and Footboard (from Step #5) by aligning the pre-fixed wooden dowels at the 2 ends of Storage (F), to the pre-drilled holes on the post of the Headboard and Footboard.
- Page 5 16. To adjust the Levelers (Q), remove the side drawers in the Storages (F) by pulling them straight out. 17. Adjust the Levelers (Q) with a Philips Head Screwdriver (Not Included), as seen in the illustration below. Date: 2013-Jul.-08 Rev: www.pbteen.com Page 5 of 6...
- Page 6 18. Put the drawers back into Storage (F). Care Instructions: • Dust often using a clean, soft, dry, and lint-free cloth. • Blot spills immediately and wipe with a clean, damp cloth. • We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered finish.
