Page 1

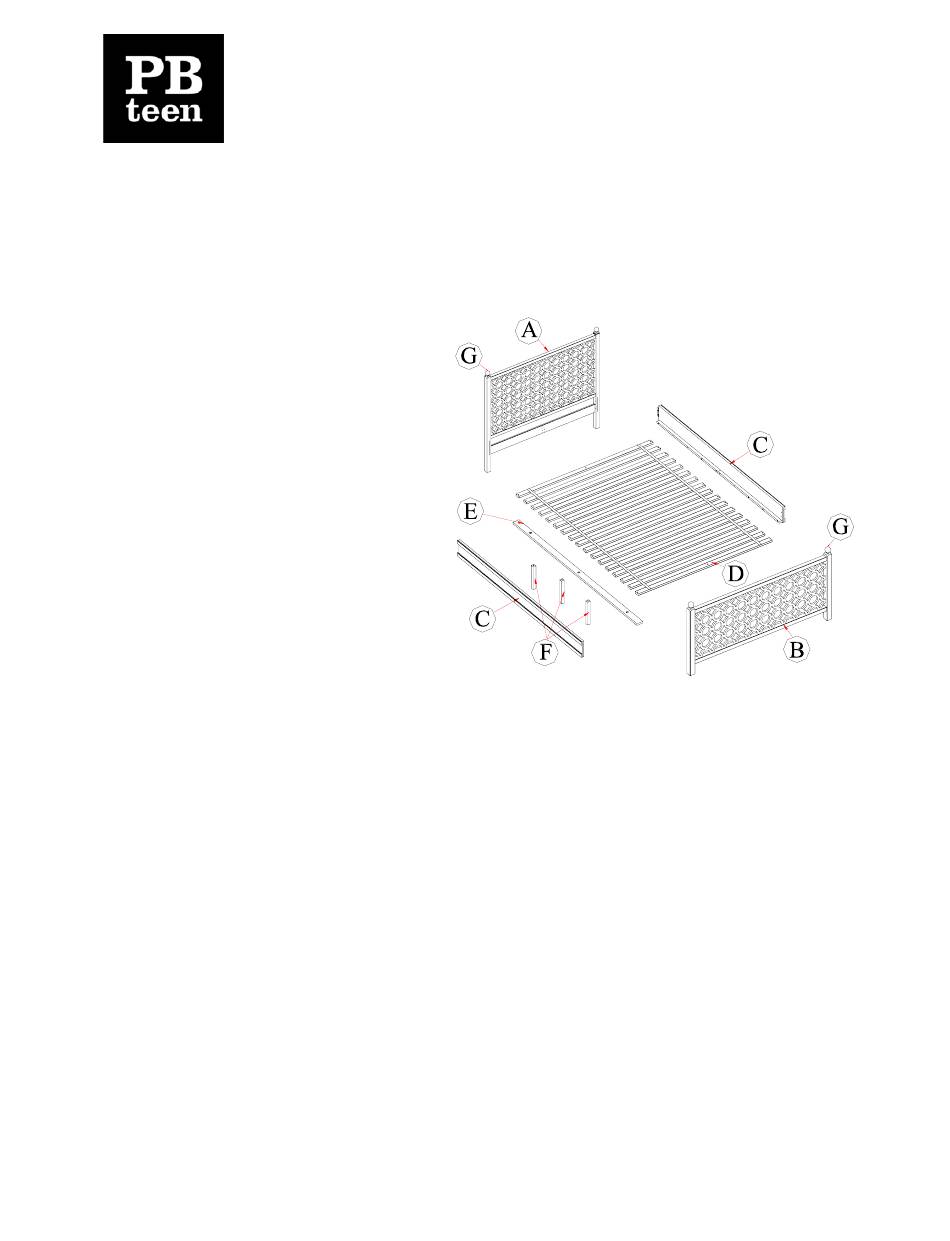

Circolo Bed- Queen PRE-ASSEMBLY: • Please read all instructions carefully before assembly. • For your safety and ease, assembly by two adults is recommended. • Save all packing materials until assembly is complete to avoid accidentally discarding small parts or hardware.
Page 2
ASSEMBLY INSTRUCTIONS: 1. Determine the desired location of the bed. Attach the Side Rails (C) to the Headboard (A) and Footboard (B) by inserting the hooked ends into the corresponding slots as shown below. Push firmly on Side Rail (C) to set into place. Please Note: Side Rails (C) can be adjusted to two settings, L1 (highest setting) and L2 (lowest setting);...
Page 3
5. Lay the Slat Roll (D) on the Side Rails (C), insert Large Philips Head Screws (H) threw the pre-drilled holes on the Slat Roll (D) and into the Side Rails (C), tighten using a Philips Head Screwdriver. Then insert Large Philips Head Screws (H) into the pre-drilled holes located in the middle of the first and last slat, tighten using a Philips Head Screwdriver as shown below.
Page 4
Circolo Trundle PRE-ASSEMBLY: • Please read all instructions carefully before assembly. • For your safety and ease, assembly by two adults is recommended. • Save all packing materials until assembly is complete to avoid accidentally discarding small parts or hardware.
Page 5
HARDWARE INCLUDED: F- Large Phillips Head Screw (8x38mm) (12pcs) G- Allen Key (1pc) H- Long Bolt (1/4”x2-1/2x13.5mm) (8pcs) I- Barrel Nut (1/4”x15x9.5mm) (8pcs) J- Small Phillips Head Screw 8x25mm (10 pcs) K- Pan Head Screw 8x17mm (24pcs) L- Casters (6pcs) TOOLS REQUIRED (but not included): 1.
Page 6
2. Turn assembled base over so it is right side up. Insert the wooden dowels on the ends on the Bottom Board Supports (E) into the pre-drilled holes on the Long Side Rails (A) as shown below. Figure 2 3. Insert Barrel Nut (I) into the pre-drilled hole on the Long Side Rail (A) making sure the hole of the Barrel Nut (Z) is facing toward the pre-drilled hole on the end of the Long Side Rail (A) so the Long Bolt will slide in.
Page 7
4. Turn assembled piece upside down; insert the Small Phillips Head Screws (J) to the pre-drilled holes as shown below, tighten using a Phillips Screwdriver. 5. Align the pre-drilled holes on the Casters (L) to the pre-drilled holes of the assembled trundle as shown below, insert Pan Head Screws (K) and tighten using a Phillips Screwdriver.
