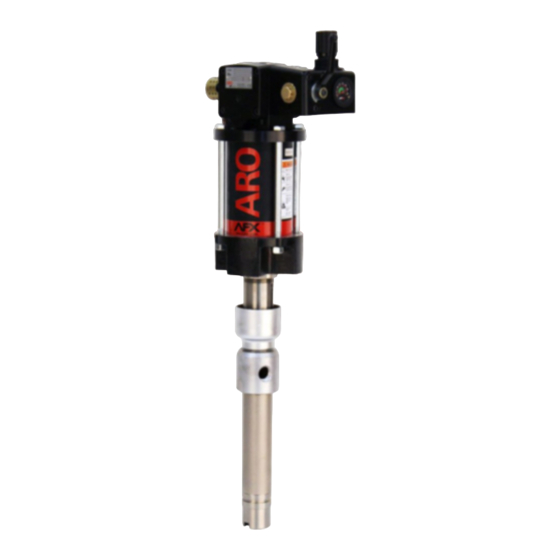

Ingersoll-Rand ARO AF0409AX3 Series Operator's Manual & Sales & Engineering Data

OPERATOR'S MANUAL AND SALES AND ENGINEERING DATA
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, PARTS, TROUBLESHOOTING.
INCLUDE MANUALS: AF04XX-XX Air Motor (pn 97999-1466) & S-632 General Information Manual (pn 97999-624).
4-1/4" AIR MOTOR
9:1 RATIO
4" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure compat-
ible pressure rating and longest service life.
637489 for repair of AF044X-XX air motor.
637486 for lower end pump.
65823 packing kit assembly.
SPECIFICATIONS
Model Series
(refer to option chart)
Pump Type . . . . . . . . . . . . . . . . . . . . . . . . . Air Operated, Two-Ball Pump
Drum Size . . . models AF0409AX3P31 . . . . Remote Mounting
models AF0409AX3P34 . . . . 16 gallon
models AF0409AX3P35 . . . . 55 gallon
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9:1
Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AF044X-XX
Motor Repair Kit . . . . . . . . . . . . . . . . . . . . . . . 637489
Motor Diameter . . . . . . . . . . . . . . . . . . . . . . . 4-1/4" (10.8 cm)
Stroke (double acting) . . . . . . . . . . . . . . . . . 4" (10.2 cm)
Air Inlet (female) . . . . . . . . . . . . . . . . . . . . . . . 1/2 - 14 NPTF - 1
Air Exhaust (female). . . . . . . . . . . . . . . . . . . . 1-1/4 - 11-1/2 NPTF - 1
Material Outlet (female) . . . . . . . . . . . . . . . 3/4 - 14 NPTF
Lower End Pump
models AF0409A13XXXX . . . . . . . . . . . . . . 60873
models AF0409A43XXXX . . . . . . . . . . . . . . . 65033-1
models AF0409A53XXXX . . . . . . . . . . . . . . . 65033
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . . . see fi gure 1
PUMP PERFORMANCE
Air Inlet Pressure Range . . . . . . . . . . . 0 - 150 p.s.i.g. (0 - 10.3 bar)
Fluid Pressure Range . . . . . . . . . . . . . . 0 - 1350 p.s.i.g. (0 - 93.1 bar)
Maximum Rec'd Cycles / Minute . . . . . . . . . 75
Displacement In.3 Per Cycle . . . . . . . . . . . . . . 12.0
Volume / Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.65 oz. (196.8 ml)
Cycles Per Gallon . . . . . . . . . . . . . . . . . . . . . . . . 19.2
Maximum Working Flow Rate . . . . . . . . . . . . 3.9 g.p.m. (14.8 l.p.m.)
Noise Level @ 60 p.s.i. - 40 c.p.m.
The pump sound pressure level has been updated to an Equivalent Continuous
Sound Level (LAeq) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1
using four microphone locations.
GENERAL DESCRIPTION
The 9:1 ratio is an expression of the relationship between the eff ec-
tive air motor area and the eff ective lower pump area. When 150 p.s.i.
(10.3 bar) of air pressure is supplied to the air motor, the lower pump
end will develop a maximum 1350 p.s.i. (93.1 bar) of fl uid pressure (at
no fl ow). As the fl uid control is opened, the fl ow rate will increase as
the air motor cycle rate increases to keep up with demand.
AF0409AX3XXXX-XX-X
Basic Oil Pump
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
The original language of this manual is English.
. . . . . . . . . . . AF0409AX3XXXX-XX-X
. . . . . . 81.8 db(A)
PUMP DATA
AF0409A13XXXX
"A"
"B"
"C"
NOTE: Dimensions are shown in inches and (mm) and are supplied for reference only.
Model "A" (mm)
AF0409A13XXXX 29.363"
(745.8)
AF0409A43XXXX 42.376"
(1076.4)
AF0409A53XXXX 50.782"
(1289.9)
IMPORTANT
This is one of five documents which support the pump. Re-
placement copies of these forms are available upon request.
AF0409AX3XXXX Model Operator's Manual (pn 97999-1490)
S-632 General Information - Air / Hydraulic Operated Piston
Pumps (pn 97999-624)
60873 Lower End Pump Manual
65033 Lower End Pump Manual
AF04XX-XX Air Motor Operator's Manual (pn 97999-1466)
9-15-10
RELEASED:
(REV. 01)
Air Inlet (female)
1/2 - 14 NPTF - 1
AF044X Air Motor
(see manual AF044X-X)
Material Outlet (female)
3/4 - 14 NPTF
Lower End Pump
(see Specifi cations Chart for
details)

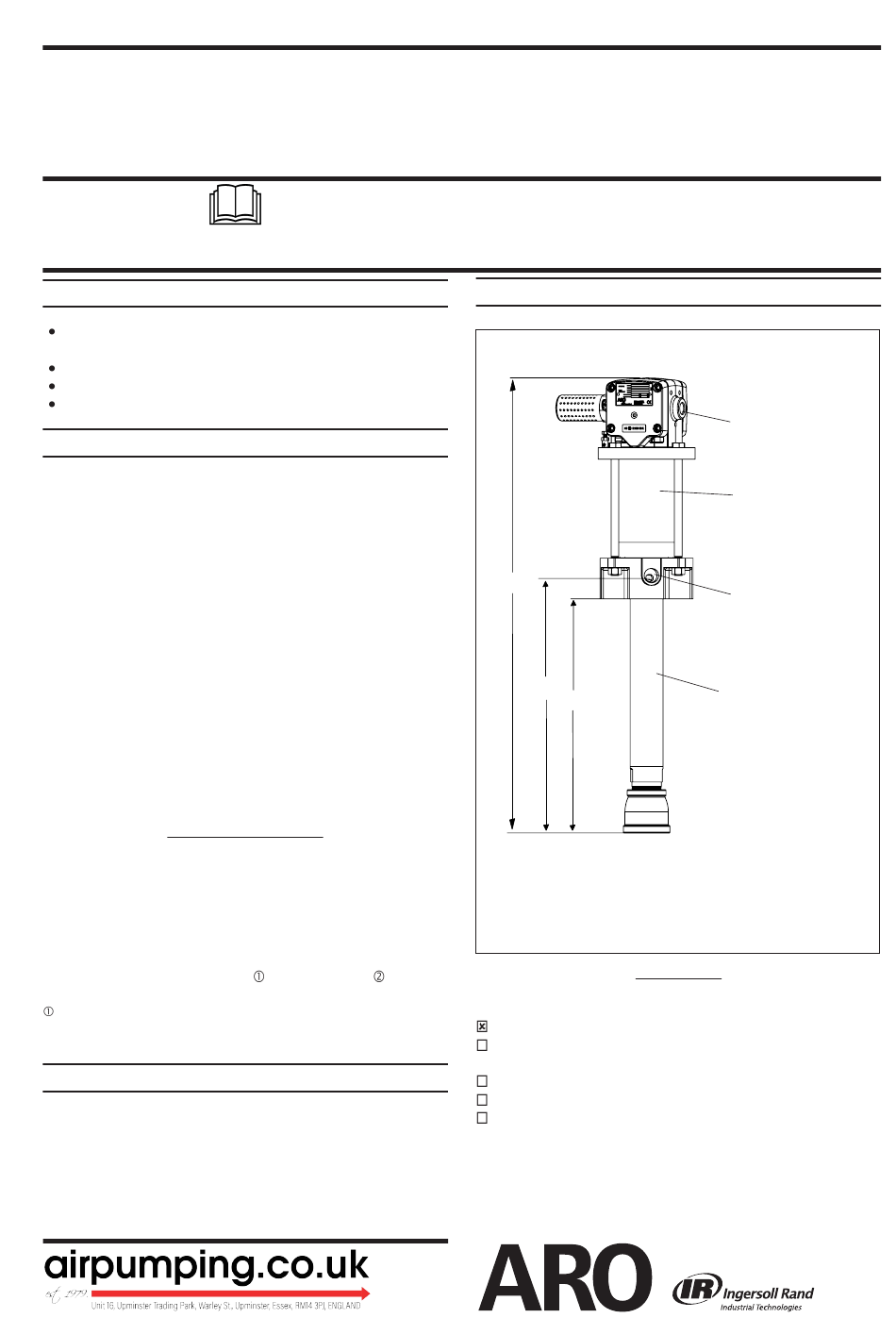

Figure 1
"B" (mm) "C" (mm)
16.613" 15.112"
(422.0) (383.8)
29.626" 28.125"
(752.5) (714.4 )
38.032" 36.532"
(966.0) (927.9)
