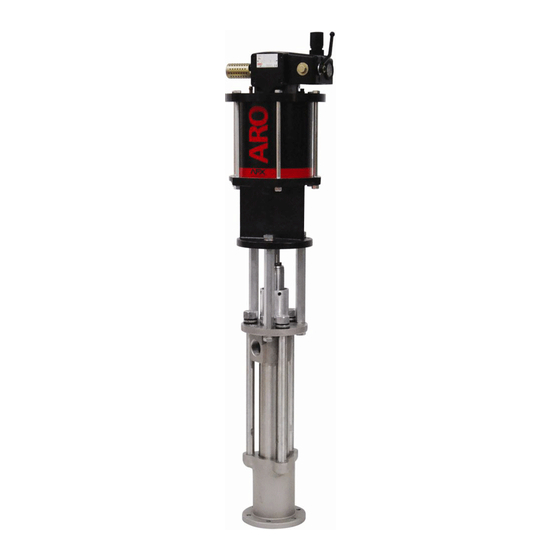

Ingersoll-Rand ARO AF0813S Series Operator's Manual

OPERATOR'S MANUAL & SALES AND ENGINEERING DATA
INCLUDING: SPECIFICATIONS, SERVICE KITS, GENERAL INFORMATION, TROUBLESHOOTING.
INCLUDE MANUALS: AF0860-XX Air Motor (pn 97999-1472), 66236-XXX-B Lower Pump End (pn 97999-489)
& S-632 General Information Manual (pn 97999-624).
8" AIR MOTOR
13:1 RATIO
6" STROKE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Use only genuine ARO® replacement parts to assure compat-
ible pressure rating and longest service life.
637489 for repair of air motor section.
637128-XX4-B for repair of lower pump end. Refer to the chart
on page 2 for description of -XXX options.
SPECIFICATIONS
Model Series
(refer to option chart)
Pump Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air Operated, Extrusion
Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13:1
Air Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AF0860-XX
Motor Repair Kit . . . . . . . . . . . . . . . . . . . . . . . 637489
Motor Diameter . . . . . . . . . . . . . . . . . . . . . . . 8" (20.3 cm)
Stroke (double acting) . . . . . . . . . . . . . . . . . 6" (15.2 cm)
Air Inlet (female) . . . . . . . . . . . . . . . . . . . . . . . 3/4 - 14 N.P.T.F. - 1
Air Exhaust (female). . . . . . . . . . . . . . . . . . . . 1-1/4 - 11-1/2 N.P.T.F. - 1
Lower Pump End Series . . . . . . . . . . . . . . . . . . 66236-XXE-B
Lower Pump Repair Kit . . . . . . . . . . . . . . . . 637128-XX4-B
Material Outlet (female) . . . . . . 1-1/2 - 11-1/2 N.P.T.F. - 1
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125.5 lbs (56.9 kgs)
PUMP PERFORMANCE
Air Inlet Pressure Range . . . . . . . 30 - 120 p.s.i.g. (2.1 - 8.3 bar)
Fluid Pressure Range . . . . . . . . . . . . 390 - 1900 p.s.i.g. (26.9 - 131.0 bar)
Maximum Rec'd Cycles / Minute . . . . . . . . . 70
Displacement In.3 Per Cycle. . . . . . . . . . . . . . . . 40.4
Volume / Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.4 oz. (661.8 ml)
Cycles Per Gallon . . . . . . . . . . . . . . . . . . . . . . . . 5.7
Flow @ 70 Cycles / Minute . . . . . . . . . . . . . . . . 12.2 g.p.m. (46.3 l.p.m.)
Noise Level @ 60 p.s.i. - 40 c.p.m. . . . . . . . . 89.8 db(A)
The pump sound pressure level has been updated to an Equivalent Continuous
Sound Level (LAeq) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1
using four microphone locations.
AF0813SXXXXXX-XX-X
EXTRUSION PUMP SERIES
Carbon Steel
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . . . . AF0813SXXXXXX-XX-X
Double Acting Pump
PUMP DATA
"A"
"B"
"C"
NOTE: Dimensions are shown in inches and (mm) and are supplied for reference only.
"A" "B"
(mm) (mm)
52.313" 31.343"
(1328.8)
for -1 models
"A" (mm) "B" (mm)
54.398" (1381.7) 31.343" (796.1)
IMPORTANT
This is one of four documents which support the pump. Re-
placement copies of these forms are available upon request.
AF0813SXXXXXX-XX-X Model Operator's Manual (pn 97999-
1515)
S-632 General Information - Industrial Piston Pumps (pn
97999-624)
66236-XXX-B Lower Pump End Operator's Manual (pn 97999-
489)
AF0860-XX Air Motor Operator's Manual (pn 97999-1472)
RELEASED:
(REV. 01)
Air Inlet (female)
3/4 - 14 N.P.T.F. - 1
AF0860-XX Air Motor
(see manual AF0860-XX)
Y14-750-K Lock Washer (6)
Spacer Section
Connector (see fi gure 2)
93866 Spacer Rod (3)
Y6-128-C Hex Cap Screw (6)
Material Outlet (female)
1-1/2 - 11-1/2 N.P.T.F. - 1
66236-XXX-B Lower Pump
(see manual 66236-XXX-B)

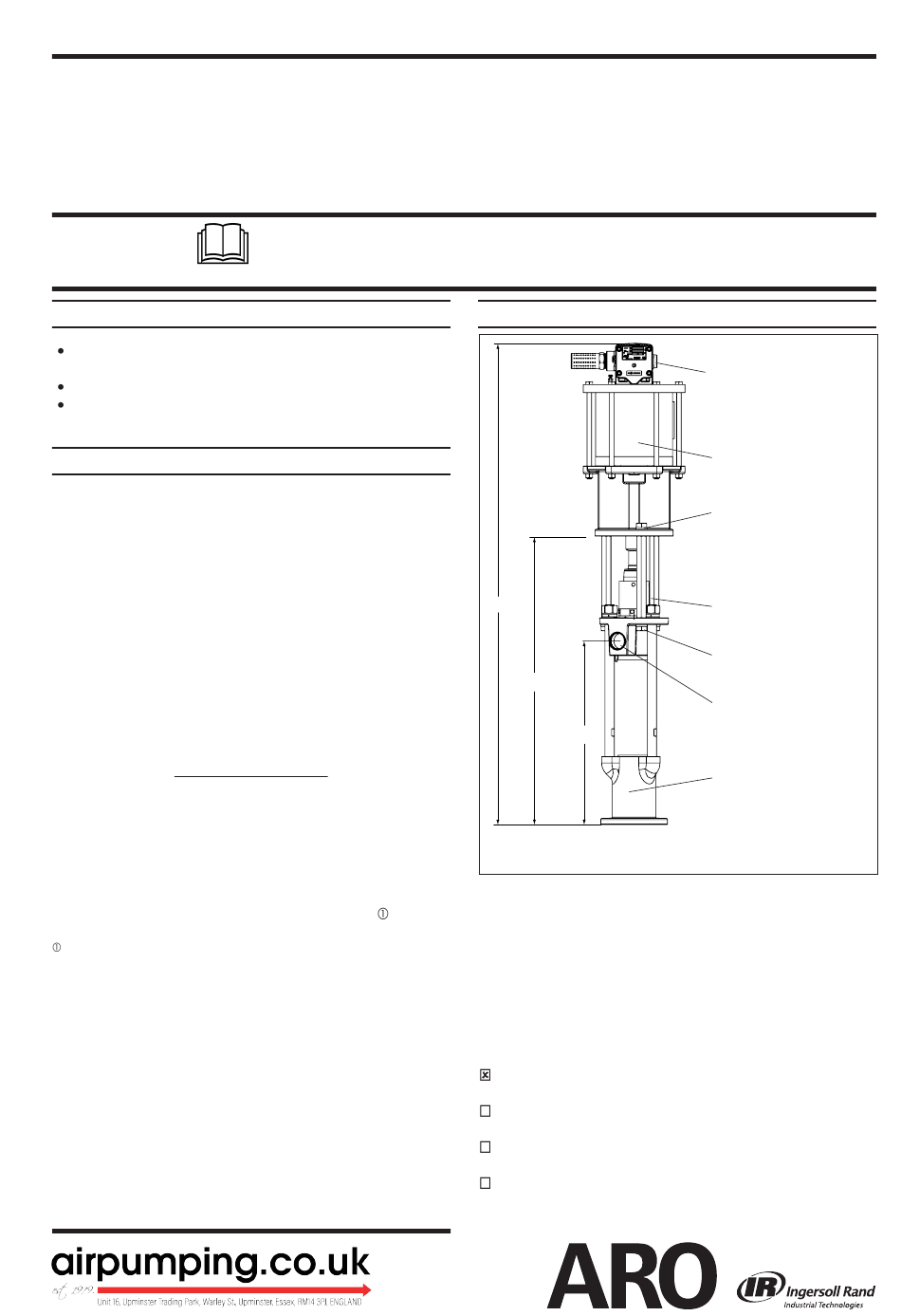

Figure 1
"C"
(mm)
19.937"
(796.1) (506.4)
"C" (mm)
19.937" (506.4)
10-1-10
