OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
2" DRY POWDER DIAPHRAGM PUMP
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
7102 valve kit for repair of H254PS control valve.
104255 for repair of P29122 100 filter / regulator.
118597 002 spool kit for repair of A212PD 4 way alpha valve.
637309 XX for fluid section repair (see page 6). NOTE: This kit also con
tains several air motor seals which will need to be replaced.
637421 for air section repair (see page 8).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for  XXX".
Pump Type . . . . . . . . . . Metallic , Dry Powder, Diaphragm Pump
Material . . . . . . . . . . . . . see Model Description Chart.
Specific Application . . . for pumping powders up to 50 lb. / ft
Weight PP20A XAX AAA . . . . . . . . . . .
PP20A XSX AAA . . . . . . . . . .
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Fluidizing Pressure
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
Nitrile . . . . . . . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . . . . . 9 1/16" x 10 1/16" (230 mm x 256 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.
À Tested with 94085 muffler assembly installed.
Á The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain combina
tions may not be recommended, consult a representative or the factory if you have
questions concerning availability.
INGERSOLL-RAND COMPANY
P.O. BOX 151 ONE ARO CENTER
D
&
D
(800) 276-4658 FAX (800) 266-7016
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
99.4 lbs (45.1 kgs)
157.8 lbs (71.6 kgs)
50 p.s.i.g. (3.4 bar)
. . . . . . . 100 p.s.i.g. (6.9 bar)
1/4" dia. (6.4 mm)
10_ to 180_ F ( 12_ to 82_ C)
40_ to 225_ F ( 40_ to 107_ C)
see page 12
. . . . 83.0 db(A)
À Á
BRYAN, OHIO 43506 0151
D
E
2005 CCN 15235526

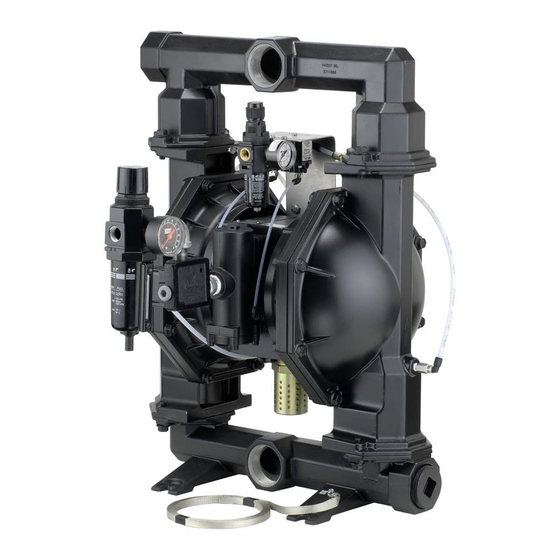

PP20A XXX AAA Powder Pump
3
PP20A XAX AAA
Figure 1
MODEL DESCRIPTION CHART
THREAD
A 2 11 1/2 N.P.T.F. 1
B 2 11 BSP
FLUID CAPS & MANIFOLD MATERIAL
A Aluminum
S Stainless Steel
HARDWARE MATERIAL
P Plated Steel
S Stainless Steel
SEAT MATERIAL
A Santoprene
BALL MATERIAL
A Santoprene
DIAPHRAGM MATERIAL
A Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PP20A AAS AAA
FLUID SECTION SERVICE KIT # 637309 AA
PP20A-X-X
RELEASED: 6-2-05
REVISED: 11-16-05
(REV. 02)
PP20A XSX AAA
PP20A X X X X X X
PP20A XXX A A A
637309 X X
Ball Diaphragm
