OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637118-C for Air Section repair (see page 6).
637165-XX for Fluid Section repair (see page 4).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart
Material Inlet / Outlet . . . . . . . . . . . . . . 2" A.N.S.I. Flange
Weight. . . . . . . . . . Polypropylene. . . . . . . 62 lbs (28.1 kg)
P.V.D.F. (Kynar). . . . . . . 92 lbs (41.7 kg)
[add 23 lbs (10.4 kgs) for cast iron air motor section]
Maximum Air Inlet Pressure . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 p.s.i.g. (8.3 bar)
Maximum Material Inlet Pressure . . . 10 p.s.i.g. (0.69 bar)
Maximum Flow Rate (fl ooded inlet) . . . 145 g.p.m. (548.8 l.p.m.)
Maximum Particle Size . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
Polypropylene . . . . . . . . . . . 35
P.V.D.F . . . . . . . . . . . . . . . . . . 10
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . 77.7 db(A)
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, how-
ever, certain combinations may not be recommended,
consult a representative or the factory if you have ques-
tions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET ± BRYAN, OHIO 43506
(800) 495-0276 FAX(800) 892-6276
www.ingersollrandproducts.com

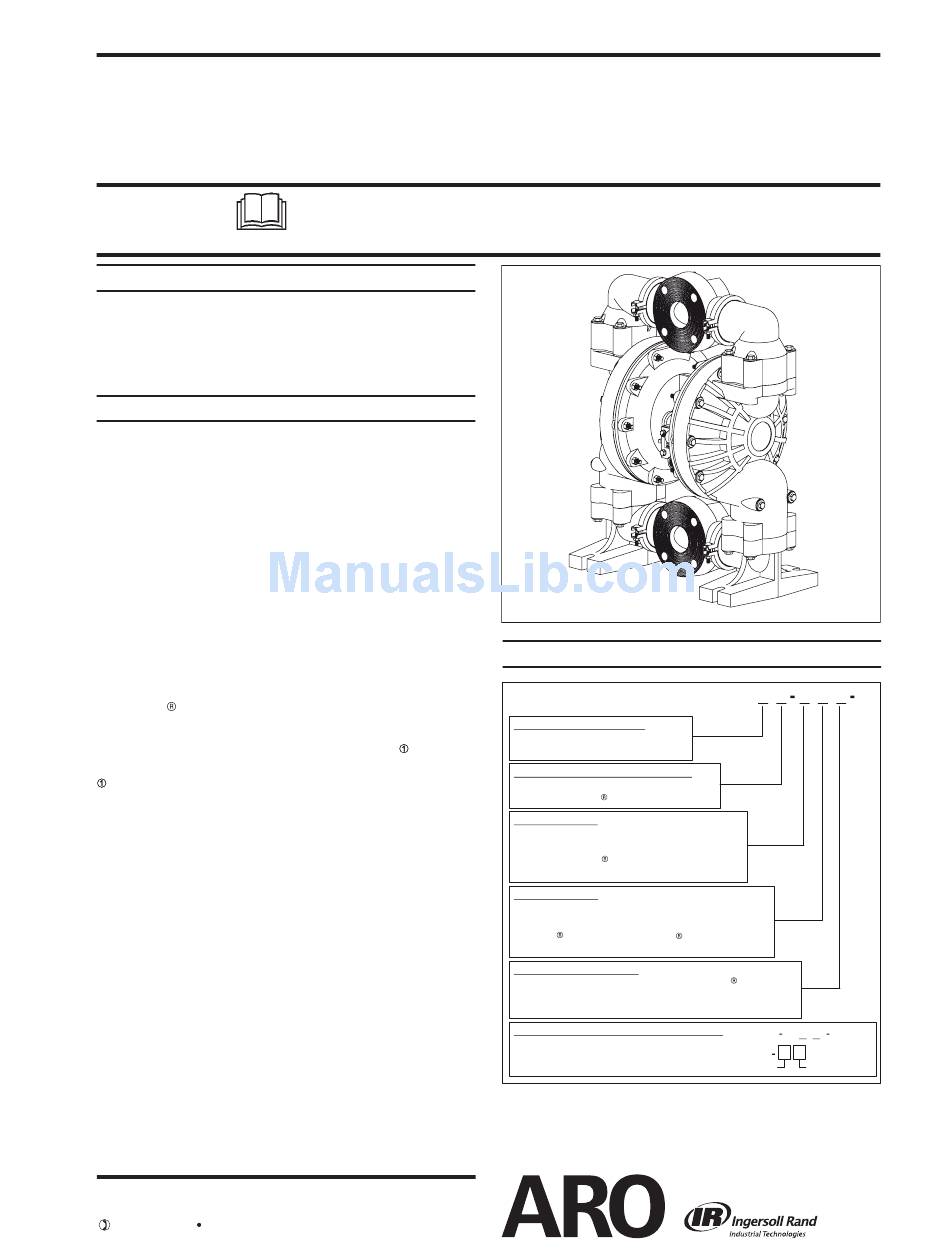

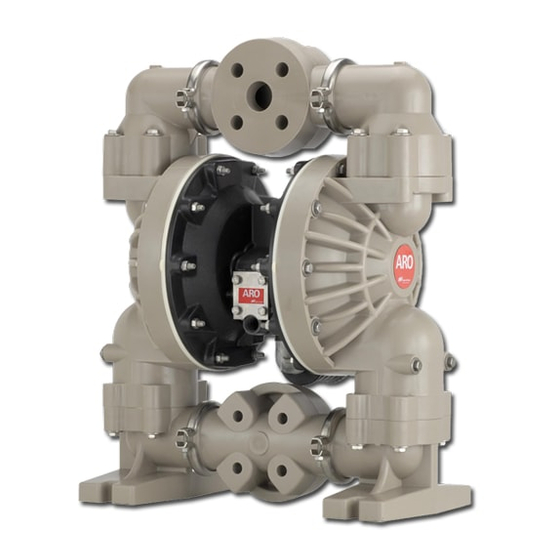

2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
0 0 0 0
to 175 F (1.7 to 79 C)
0 0 0 0
to 200 F (-12 to 93 C)
CCN 99443517
© 2010
6662AX-X-C
6662A3-XXX-C
MODEL DESCRIPTION CHART
CENTER BODY MATERIAL
A - Aluminium
B - Cast Iron
FLUID CAP / MANIFOLD MATERIAL
3 - Polypropylene
4 - P.V.D.F. (Kynar )
SEAT MATERIAL
2 - 316 Stainless Steel
3 - Polypropylene
4 - P.V.D.F. (Kynar )
8 - 440 Stainless Steel
BALL MATERIAL
1 - Neoprene 5 - E.P.R.
2 - Nitrile 8 - Polyurethane
3 - Viton E - Santoprene
4 - PTFE
DIAPHRAGM MATERIAL
1 - Neoprene 3 - Viton
9 - Hytrel
2 - Nitrile
5 - E.P.R. B - Santoprene
4 - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # 6662A3-321-C
FLUID SECTION SERVICE KIT # 637165-21
RELEASED: 5-3-88
REVISED: 5-12-10
(REV. R)
6662 X X X X X C
6662XX X X X C
637165 X X
BALL DIAPHRAGM
