Ingersoll-Rand AF060BL Series Operator's Manual

OPERATOR'S MANUAL & SALES AND ENGINEERING DATA
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
INCLUDE MANUAL: AF06XX-XX Air Motor (pn 97999-1467) & S-632 GENERAL INFORMATION (PN 97999-694)

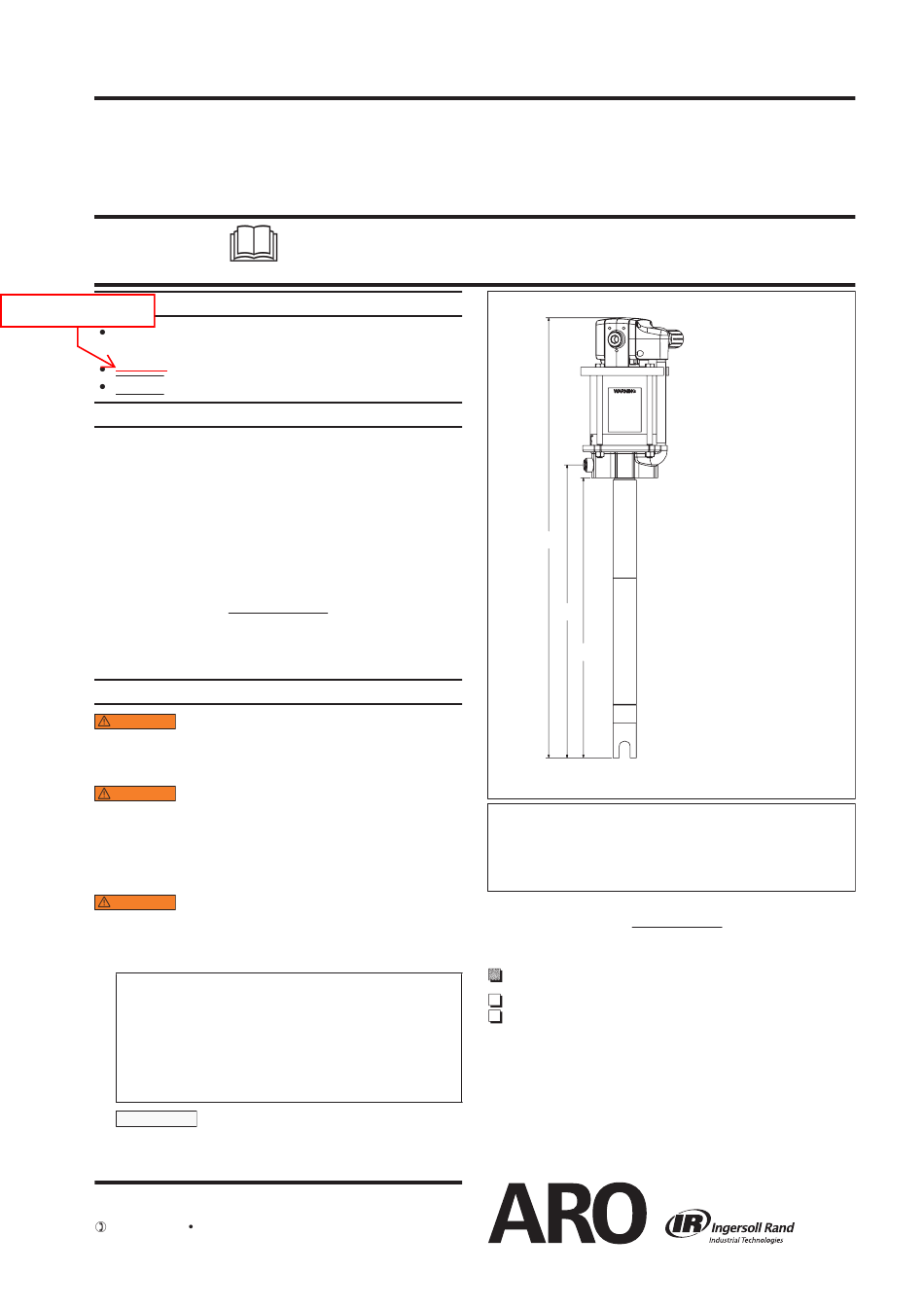

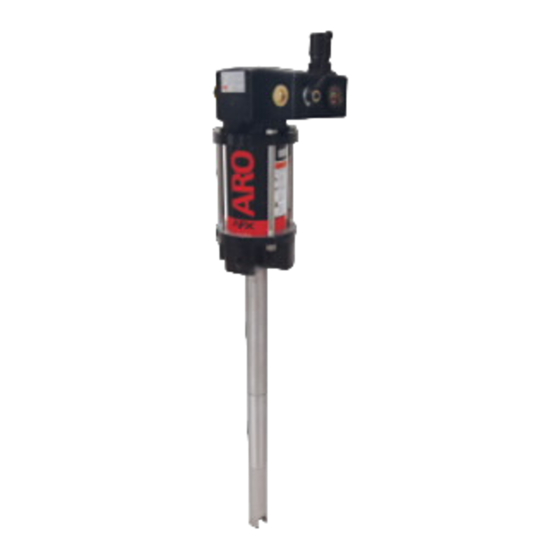

6" AIR MOTOR
100:1 RATIO
0 - 10,000 PSI. RANGE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
Per ARO (1/8/2016), use
part #: 63150
Use only genuine ARO® replacement parts to assure com-
patible pressure rating and longest service life.
637483 packing kit.
637489 for air motor service only.
Model Series . . . . . . . . . AF060BLXXXXXX-XX-X.
Type . . . . . . . . . . . . . . . . . Air Operated Grease Pump
Ratio . . . . . . . . . . . . . . . 100:1
Air Motor Diameter. . . . . . . . . . . . . . 6" (15.2 cm)
Stroke. . . . . . . . . . . . . . . . . . . . . . 4" (10.2 cm)
Air lnlet (female) . . . . . . . . . . . . . 1/2-14 N.P.T.F.
Material Outlet (female). . . . . . . 1/2 - 14 N.P.T.F.
Dimensional Data . . . . . . . . . . . . . . . . see chart
Air Inlet Pressure Range . . . . . 0 - 100 p.s.i.g (0 - 6.9 bar)
Fluid Pressure Range . . . . . . . 0 - 10,000 p.s.i.g (0 - 690 bar)
Maximum Delivery/ Min . . . . 2.1 lbs (0.95 kg)

OPERATING AND SAFETY PRECAUTIONS

WARNING
UAL INCLUDED FOR ADDITIONAL OPERATING AND
SAFETY PRECAUTIONS AND OTHER IMPORTANT IN-
FORMATION.
WARNING
explosion resulting in severe injury or death. Do not
exceed maximum operating pressure of 10,000 p.s.i.g
(690 bar) at 100 p.s.i.g (6.9 bar) inlet air pressure. Do
not run pump without using a regulator to limit air
supply pressure to the pump.
WARNING
equipment failure resulting in severe injury or prop-
erty damage. Do not exceed the maximum material
pressure of any component in the system.
PUMP RATIO X
INLET PRESSURE TO PUMP MOTOR
Pump ratio is an expression of the relationship between the pump
motor area and the lower pump end area. EXAMPLE: When 100 p.s.i.g
(6.9 bar) inlet pressure is supplied to the motor of a 100:1 ratio pump it
will develop a maximum of 10,000 p.s.i.g (690 bar) fl uid pressure (at no
fl ow) - as the fl uid control is opened, the fl ow rate will increase as the
motor cycle rate increases to keep up with the demand.
NOTICE
terial lines is exposed to elevated temperatures. Example: Material lines
located in a non-insulated roof area can warm due to sunlight. Install a
pressure relief valve in the pumping system.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276 FAX (800) 892-6276
www.ingersollrandproducts.com
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,

SERVICE KITS

SPECIFICATIONS

PERFORMANCE

READ THE GENERAL INFORMATION MAN-
EXCESSIVE INLET PRESSURE. Can cause
EXCESSIVE MATERIAL PRESSURE. Can cause
MAXIMUM PUMP
=
FLUID PRESSURE
Thermal expansion can occur when the fl uid in the ma-
© 2010
AF060BLXXXXXX-XX-X
PUMP ASSEMBLY
OPERATING OR SERVICING THIS EQUIPMENT.
"A"
NOTE: Dimensions are shown in inches and (mm), supplied for reference only.
MODELS
AF060BL4XXXXX
AF060BL4XXXXX-1
AF060BL5XXXXX
AF060BL5XXXXX-1
This is one of six documents which support the pump.
Replacement copies of these forms are available upon request.
AF060BLXXXXXX-XX-X MODEL OPERATOR'S MANUAL
-1511)
AF066XX-XX AIR MOTOR OPERATOR'S MANUAL
S-632 GENERAL INFORMATION LUBRICATION PISTON PUMPS
(97999-694)
CCN 15334006
RELEASED:
(REV. 01)
AF060BLXXXXXX-XX-X
"B"
"C"
"B" (mm)
"A" (mm)
26.622" (676.2)
40.010" (1016.3)
42.094" (1069.2) 26.622" (676.2)
49.822" (1265.5) 36.434" (925.4)
51.906" (1318.4) 36.434" (925.4)
IMPORTANT
9-30-10
Figure 1
"C"
25.466" (646.8)
25.466" (646.8)
35.258 (895.6)
35.258 (895.6)
( 97999
(97999-1467)
