netvox R816B User Manual

Wireless wall-mounted power socket with consumption monitoring (us type)
Hide thumbs Also See for R816B:
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Wall-Mounted Power Socket with Consumption Monitoring,
One Gang Wireless enabled, One Gang Straight-through, US type
Wireless Wall-Mounted Power Socket
with Consumption Monitoring
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
(US type)
R816B
User Manual
Model：R816B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R816B and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R816B

Summary of Contents for netvox R816B

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ........................2 2. Appearance ........................3 3. Main Characteristic ......................3 4. Operation .......................... 4 5. Data Report ........................5 5.1 Example of ReportDataCmd ..................6 5.2 Example of ConfigureCmd ..................7 5.3 Example for MinTime/MaxTime logic ..............8 6.

  • Page 3: Introduction

    LoRaWAN protocol. The AppServer can be used to control the opening and closing of the external load of the R816B, and the external load can also be controlled by the switch that comes with the R816B device itself. The current, voltage, power and energy values of the current load can be viewed through the AppServer.

  • Page 4: Appearance

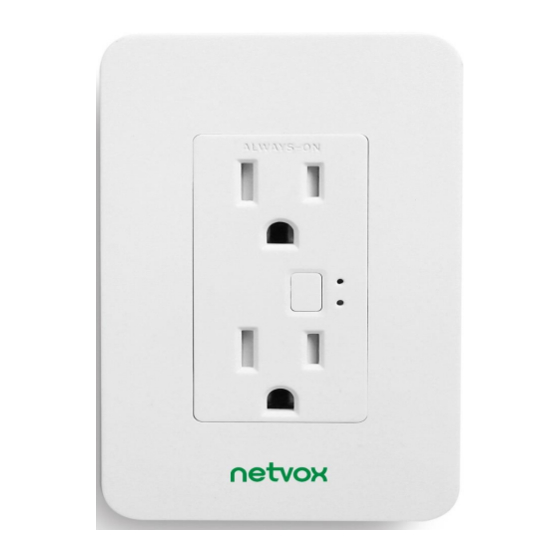

    2. Appearance Socket 1 Network Indicator Switch Button Factory Restoring Key (inside) Socket 2 Switch Indicator Note: Socket 1 is a general socket and cannot be controlled. 3. Main Characteristic  Compatible with LoRaWAN standard  100-240VAC 50/60HZ power supply ...

  • Page 5: Operation

    4. Operation On/Off Socket the R816B into the power supply of the AC 100-240V, power on the device and Power on/Turn on all the indicators flash once. When the R816B is removed from the power supply interface, the R816B will be Power off powered off and stopped.

  • Page 6: Data Report

    3. Press the switch button or receive the switch command: The device will be reported immediately. 4. The uplink data reported by the device is referenced by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index Data report configuration and sending period are as following: Current Change＜...

  • Page 7: Example Of Reportdatacmd

    Version– 1 bytes –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) PayLoadData–...

  • Page 8: Example Of Configurecmd

    ReportReq (9Bytes,Fixed 0x00) CurrentChange PowerChange Reserved ReadConfig MinTime MaxTime 0x82 (2byte) (2byte) (1Byte) ReportRsp (2bytes Unit:s) (2bytes Unit:s) Unit:1mA Unit:1W Fixed 0x00) (1) Turn off the R816B switch button Downlink: 9073000000000000000000 (2) Turn on the R816B switch button Downlink: 9173000000000000000000...

  • Page 9: Example For Mintime/Maxtime Logic

    (3) Toggle turn on/off switch button Downlink: 9273000000000000000000 (4) Clear the historical electrical energy data Downlink:9373000000000000000000 (5) Setting Min Interval = 2 seconds, Max Interval = 300 seconds, Current Change = 100mA,Power Change = 20W Downlink:01730002012C0064001400 Response: 8173000000000000000000 (successful) (6) Read the current report interval Downlink: 0273000000000000000000 Response:82730002012C0064001400 5.3 Example for MinTime/MaxTime logic...

  • Page 10: Product Installation

    This product does not have a waterproof function. After the screening is completed, please place it indoors. Note: The energy data of R816B is saved once every 10 seconds if the memory chip is AT24C02, once every 10 seconds for AT2402. After power off, the data within 10 seconds will be gone.

  • Page 11: Important Maintenance Instruction

    7. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid, might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
