- Page 1 R816B Model： Wireless Power Socket with Power Meter Wireless Power Socket with Power Meter User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction....................................................2 2. Appearance....................................................3 3. Main Characteristic.................................................. 4 4. Operation....................................................4 5. Data Report....................................................5 6. Load Property...................................................7 7. Product Installation.................................................. 8 8. Important Maintenance Instruction............................................8... -
Page 3: Introduction
R816B is a long-distance wireless socket device for Netvox ClassC type devices based on the LoRaWAN open protocol, compatible with the LoRaWAN protocol. The AppServer can be used to control the opening and closing of the external load of the R816B, and the external load can also be controlled by the switch that comes with the R816B device itself. -
Page 4: Appearance

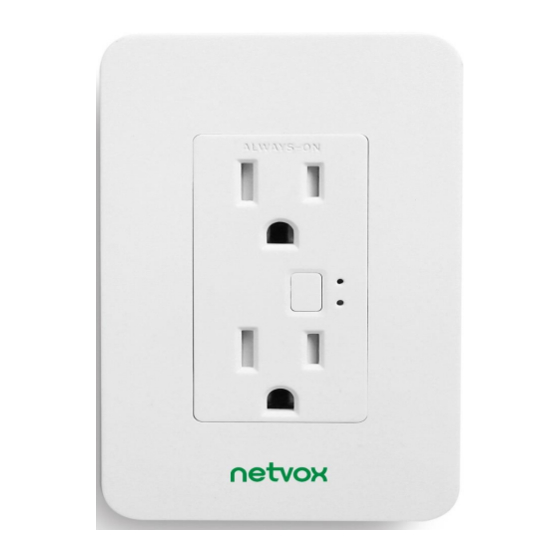

2. Appearance Load Socket 1 Network Indicator Switch Indicator Load Socket 2 Manual Switch Restore to Factory Setting L Input N Input E Input... -
Page 5: Main Characteristic
Control the relay switch on R816B for Toggle operation: When R816B is on, the green indicator of the switch Press the switch button indicator is on and the red indicator is off. When R816B is off, the red indicator of the switch indicator is on and the green indicator is off. -
Page 6: Data Report
(Report the switch status first, and after 10 seconds reports the power, current and voltage measurement information status.) R816B default Max Interval = 15min, Min Interval = 2s (if there is a special custom shipping, the configuration is changed according to customer requirements) The uplink data reported by the device is referenced by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index... - Page 7 Toggle operation through the downlink control R816B: 9273000000000000000000 Clear and reset energy accumulation value operation through the downlink control R816B: 9373000000000000000000 Set the downlink to report if there is a change within 2 seconds. Report every 5mins if there is no change.
-
Page 8: Load Property
Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. PowerChange=2W. MaxTime (MinTime) MinTime MinTime MinTime collects data collects data collects data collects data collects data REPORT 10W Does not report Does not report Does not report REPORTS 11W Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. -
Page 9: Product Installation
This product does not have a waterproof function. After the screening is completed, please place it indoors. Note: The energy data of R816B is saved once every 10 seconds if the memory chip is , once every 10 seconds for AT2402. After power off, the AT24C02 data within 10 seconds will be gone.
