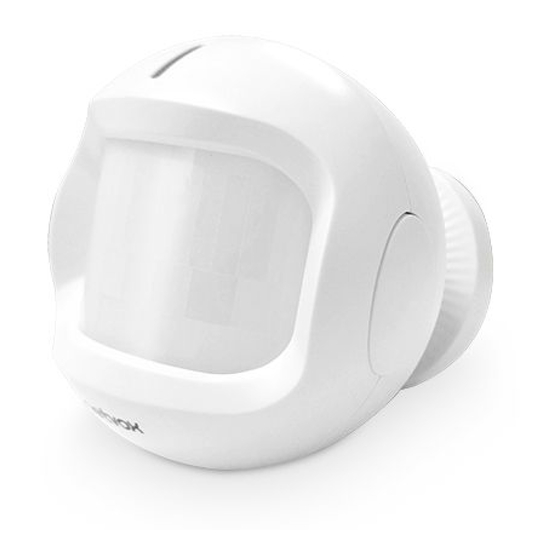

- Page 1 RB11E Wireless Occupancy & Temperature & Light Sensor Wireless Occupancy & Temperature & Light Sensor User Manual...
- Page 2 Table of Content 1. Introduction................................2 2. Appearance................................. 3 3. Main Features................................3 4. Set up Instruction................................4 4.1 Power on and Turn on / off..........................4 4.2 Join Into Lora Network............................ 4 4.3 Function Key..............................4 4.4 Data Report...............................4 4.5 IR Delay Configuration............................5 5.
- Page 3 RB11E combines infrared detection, temperature, and illumination sensors. During infrared real-time detection, if a people or other organism which is active in the monitoring area, RB11E will detect the infrared signal and report status information to the gateway. Users can execute different instructions or scenes according to the different status configuration.
- Page 4 2. Appearance Indicator（Red / Green） Function Key 1 Function Key 2 nfrared Sensor Lighting Sensitivity Adjustment Knob Infrared Sensitivity Adjustment Knob Open Button Case 3. Main Features Compatible with LoRaWAN 2 section 3.6V lithium battery powered Detect temperature, light illumination ...
- Page 5 The network operation is as following: (1) If RB11E had never joined any network or at factory setting mode, turn on the device; it will search an available LoRa network to join. The green indicator will stay on for 5 seconds to show it joins into the network, otherwise, the green indicator will be off.
- Page 6 Note: MinInterval is the sampling period (voltage, temperature, illuminance). Sampling period >= MinInterval. When infrared is triggered: The red LED will flash once after RB11E detects infrared signal, and immediately report the status of all current sensor value (voltage, temperature, illuminance).
- Page 7 1. Press and hold function key for 5 seconds till the green indicator flashes and then release; LED flashes quickly 20 times. 2. RB11E will stay off after restoring to factory setting. Press function key to turn on RB11E and to join a new LoRa network.
- Page 8 Handle your device, battery, and accessories with care. The suggestions above help you keep your device operational. For damaged device, please contact the authorized service center in your area.
