Table of Content 1. Introduction ................................2 2. Appearance ................................3 3. Main Features ................................3 4.Set up Instruction ..............................4 4.1 Power on and Turn on / off ..........................4 4.2 Join Into LoRa Network ..........................4 4.3 Function Key ..............................4 4.4 Data Report ..............................
Introduction R718F2 is a long-distance door Sensor based on the LoRaWAN open protocol (Class A). The device is equipped with 2-gang reed sensors, The reed switch is on (conducting) within the magnetic range, and is off (nonconducting) when it's out of the magnetic range. The module can detect the closing and opening signals so that the state of the door window status can be detected.

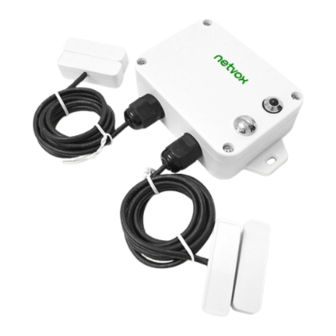

2. Appearance Fig.1 R718F2 Appearance 3. Main Features ⚫ Compatible with LoRaWAN protocol. ⚫ Powered by 2 x ER14505 3.6V Lithium AA battery ⚫ Objects to be detected open / close status ⚫ Easy set up and installation...
4.Set up Instruction 4.1 Power on and Turn on / off (1) Power on: insert batteries: open the battery cover; insert two sections of 3.6V ER14505 AA batteries and close the battery cover. (2) Turn on: if the device had never joined in any network or at factory setting mode, after powering on, the device is at off mode by default setting.
(B) When it is not in the network → R718F2 will enter sleeping mode and wake up every 15 seconds to search a network to join in the first two minutes. After two minutes, it will wake up every 15 minutes to request to join the network.
7. Low Voltage Alarming The operating voltage threshold is 3.2V. If the voltage is lower than 3.2V, R718F2 will send a low-power warning message to the LoRa network. 8. Installation Connect the reed switch sensor of the connection module to the door edge, and align the magnet with the door along the corresponding door frame position.
