Model：R311FA
Wireless Activity Detection Sensor
Wireless Activity Detection Sensor
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX
Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole
or in part, without written permission of NETVOX Technology. The specifications are subject to change
without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the R311FA and is the answer not in the manual?

Questions and answers

Related Manuals for netvox R311FA

Summary of Contents for netvox R311FA

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ....................... 2 2. Appearance ........................ 3 3. Main Features ......................4 4. Set up Instruction ....................... 5 5. Data Report ........................ 7 6. Installation ....................... 12 7. Relative Devices ...................... 13 8. Important Maintenance Instruction ................. 13...

  • Page 3: Introduction

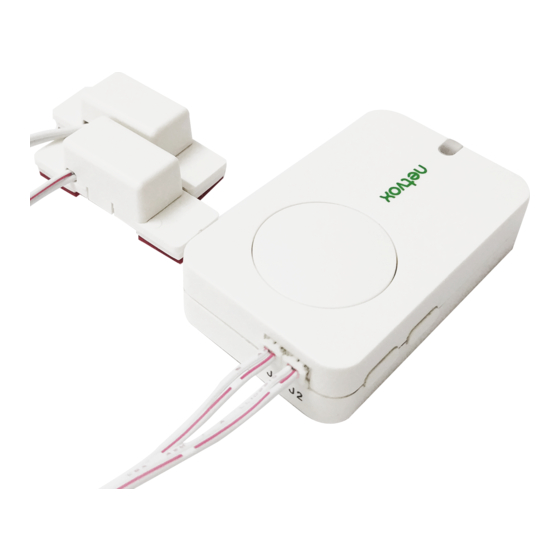

    1. Introduction The R311FA is a Wireless Activity Detection Sensor for Netvox ClassA type devices based on the LoRaWAN open protocol and is compatible with the LoRaWAN protocol. When the device detects movement or vibration, it immediately triggers an alarm.

  • Page 4: Appearance

    2. Appearance Indicator Battery cover Function Key Function Key...

  • Page 5: Main Features

     Improved power management for longer battery life Battery Life: ⁻ Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html ⁻ At this website, users can find battery life time for variety models at different configurations. 1. Actual range may vary depending on environment.

  • Page 6: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert two sections of 3V CR2450 button batteries and close the battery cover Turn on Press any function key till the green and red indicator flash once. Turn off Press and hold the function key for 5 seconds till the green indicator flashes for (Restore to factory setting) 20 times.
  • Page 7 Function Key Restore to factory setting / Turn off Press and hold for 5 seconds The green indicator flashes for 20 times: success The green indicator remains off: fail The device is in the network: the green indicator flashes once and sends a report Press once The device is not in the network: the green indicator remains off Sleeping Mode...

  • Page 8: Data Report

    The device report interval will be programmed based on the default firmware which may vary. The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://www.netvox.com.cn:8888/page/index to resolve uplink data.
  • Page 9 MinTime MaxTime 0x01 (1byte (4Bytes,Fixed ReportReq (2bytes Unit:s) (2bytes Unit:s) Unit:0.1v) 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes,Fixed 0x00) R311FA 0x4F ReadConfig Reserved 0x02 ReportReq (9Bytes,Fixed 0x00) BatteryChange Reserved ReadConfig MinTime MaxTime 0x82 (1byte (4Bytes,Fixed ReportRsp (2bytes Unit:s) (2bytes Unit:s) Unit:0.1v)
  • Page 10 (2) Read device configuration parameters Downlink: 024F000000000000000000 The device returns: 824F003C003C0100000000 (current device configuration parameters) Device Description Device NetvoxPayLoadData Type R311FType SetR311F Reserved 0x03 (1Bytes,0x01_R311FA,0x02_R TypeReq (8Bytes,Fixed 0x00) 311FB,0x03_R311FC) SetR311F Status Reserved 0x83 TypeRsp (0x00_success) (8Bytes,Fixed 0x00) GetR311F Reserved 0x04 TypeReq (9Bytes,Fixed 0x00) R311FType...
  • Page 11 Example for MinTime/MaxTime logic: Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V MaxTime MaxTime Sleeping(MinTime) Sleeping(MinTime) Wakes up and collects data Wakes up and collects data Wake up and collects data REPORTS 2.8V REPORTS 2.8V REPORTS 2.8V Note: MaxTime=MinTime.
  • Page 12 Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Wakes up and collects Users push the button, data REPORTS 2.7V. 2.7V |2.7-2.8|=0.1 Recalculate MaxTime. REPORTS 2.7V Wakes up and collects data 2.7V sleeping sleeping Does not report 1H 10...

  • Page 13: Installation

    6. Installation 1.Remove the 3M adhesive on the back of the Activity Detection Sensor (R311FA) is suitable for Activity Detection Sensor and attach the body to the following scenarios: Valuables (Painting, Safe) the surface of a smooth object (please do not stick Industrial Equipment...

  • Page 14: Relative Devices

    7. Relative Devices Model Function Appearance R718MBA Send an alarm when detecting vibration or movement R718MBB Count the number of vibration or movement R718MBC Count the time interval of vibration or movement 8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: •...
