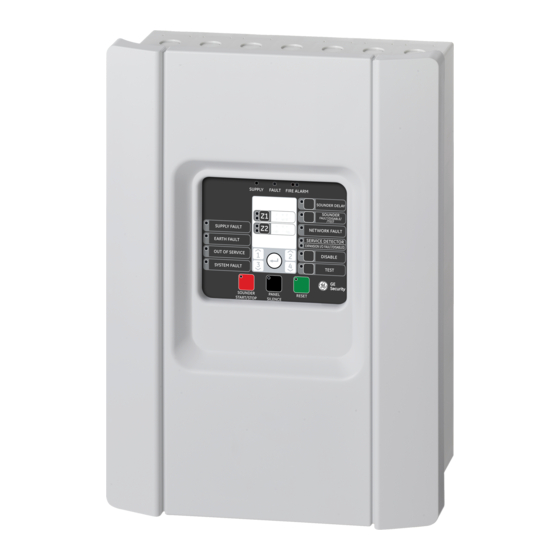

1X-E4 Series Installation
Manual
P/N 501-415403-1-50 • ISS 13JUN22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1X-E4 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aritech 1X-E4 Series

Summary of Contents for Aritech 1X-E4 Series

  • Page 1 1X-E4 Series Installation Manual P/N 501-415403-1-50 • ISS 13JUN22...
  • Page 2 Copyright © 2022 Carrier. All rights reserved. Trademarks and CleanMe and the 1X-E4 Series name and logo are trademarks of patents Carrier. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    Fire network specifications 76 Cabinet drawings and dimensions 77 Appendix A Configuration presets 79 Operating mode presets 80 Expansion board presets 82 Appendix B Regulatory information 89 European standards 90 European regulations for construction products 91 Index 93 1X-E4 Series Installation Manual...

  • Page 4: Important Information

    Important information This is the installation manual for 1X-E4 Series fire and evacuation control panels. Read these instructions and all related documentation entirely before installing or operating this product. Software compatibility Information in this document applies to control panels with software version 2.3 or later.
  • Page 5 Note: Note messages advise you of the possible loss of time or effort. They describe how to avoid the loss. Notes are also used to point out important information that you should read. 1X-E4 Series Installation Manual...
  • Page 6 This symbol indicates that the installation manual should be consulted when operating or maintaining the device or control close to where the symbol is placed. 1X-E4 Series Installation Manual...

  • Page 7: Introduction

    Chapter 1 Introduction Summary This chapter provides an introduction to your control panel and the available operating modes. Content Product range 2 Product compatibility 2 Operating modes 2 1X-E4 Series Installation Manual...

  • Page 8: Product Range

    Chapter 1: Introduction Product range Panels in the 1X-E4 Series are conventional fire and evacuation control panels. The series includes the models shown below. Model Description 1X-E4 Four-zone conventional fire alarm and evacuation control panel, supporting four evacuation areas without alarm counter...

  • Page 9: Installation

    Connecting the mains power supply 18 Selecting 115 or 230 VAC operation 19 Connecting the batteries 20 Powering auxiliary equipment (24 VDC auxiliary output) 20 Connecting alarm and fault relays 21 Connecting expansion boards 21 Connecting a fire network 21 1X-E4 Series Installation Manual...

  • Page 10: Cabinet Layout

    Chapter 2: Installation Cabinet layout Figure 1: Cabinet layout for 1X-E4 Series control panels 1. Seven-segment display 8. Key connector 2. Zone and system connectors 9. Alarm counter connector 3. Cable knockouts 10. Fuse terminal block 4. Mounting screw knockouts 11.

  • Page 11: Cabinet Installation

    The cabinet should be mounted so that the user interface is at eye level. Note that the control panel must be assembled and installed according to the ordinances and codes that are in effect in your market or region. 1X-E4 Series Installation Manual...

  • Page 12: Fixing The Cabinet To The Wall

    2. Drill all required holes and insert a 6 mm wall plug into each. 3. Insert screw (1) half way and hang the cabinet onto this screw. 4. Insert screws (2) and tighten. 5. Insert screws (3) and tighten. 6. Tighten screw (1). 1X-E4 Series Installation Manual...

  • Page 13: Menu Inserts

    3. Remove the control panel cover. 4. Insert each segment in the appropriate slot, as shown in Figure 3 below. Make sure that the inserts are positioned correctly. 5. Replace the control panel cover. Figure 3: Applying the menu inserts 1X-E4 Series Installation Manual...

  • Page 14: Connections

    Other types of cable may be used subject to site-specific EMI conditions and installation testing. Use 20 mm cable glands to ensure clean and secure connections at the control panel cabinet. All cables should be fed through the cable guides in the cabinet housing to eliminate movement. 1X-E4 Series Installation Manual...

  • Page 15: Overview Of Fire And Evacuation System Connections

    Overview of fire and evacuation system connections Standard, EN 54-13, active end-of-line, and intrinsically-safe system connections are shown in the following figures. Figure 4: Standard system connections, no EN 54-13 requirement Figure 5: Standard system connections, for EN 54-13 compliance 1X-E4 Series Installation Manual...
  • Page 16 1. A diode must be connected on the detector base. (Consult your detector installation manual for more details). Figure 7: Intrinsically-safe system connections 1. Galvanic barrier for intrinsically-safe conventional detectors. 2. Galvanic barrier for intrinsically-safe fire notification devices. 1X-E4 Series Installation Manual...

  • Page 17: Connecting Zones And Zone Devices

    EOL-Z end-of-line device (polarity sensitive) Active EOL Active end-of-line device Note: Unused zones must be terminated with an active end-of-line device or configured as passive end-of-line and terminated with a 4.7 kΩ, 5%, 1/4 W end- of-line resistor. 1X-E4 Series Installation Manual...
  • Page 18 [1] Resistance must be rated at 1 W minimum. Note: The default zone detection settings for each operating mode can be found in Appendix A “Configuration presets” on page 79. To change the zone detection setting, see “Advanced configuration” on page 40. 1X-E4 Series Installation Manual...

  • Page 19: Connecting Inputs

    Extended fire routing delay ≤ 9 kΩ > 9 kΩ Fire routing inhibit delay ≤ 9 kΩ > 9 kΩ Class change ≤ 9 kΩ > 9 kΩ Delays off ≤ 9 kΩ > 9 kΩ 1X-E4 Series Installation Manual...
  • Page 20 [2] For EN 54-13 compliance, the active impedance should be in the range of 220 Ω to 3.9 kΩ. [3] High impedance fault. [4] For the open circuit supervision of the fault warning output with the input, a 2010-FS EOL board must be installed. See “Connecting the fault warning output” on page 17. 1X-E4 Series Installation Manual...

  • Page 21: Connecting Supervised Outputs

    3 or zone 4 zone 3 or zone 4 NEN 2575 with Evacuation Evacuation Evacuation Evacuation one evacuation sounders for any sounders for any sounders for any sounders for any area zone zone zone zone 1X-E4 Series Installation Manual...
  • Page 22 Connecting sounders or other notification devices to supervised outputs Depending on the operating mode, up to four sounder or notification device circuits can be connected. See Table 10 on page 15. 1X-E4 Series Installation Manual...
  • Page 23 The wiring must be returned back to the control panel to the 2010-FS-EOL user supervisory board connected to INPUT2, as shown below. Figure 9: Connecting to fault warning output 1. 2010-FS-EOL user board 2. Control panel PCB connectors 3. 2010-1-SB expansion board connectors 1X-E4 Series Installation Manual...

  • Page 24: Connecting The Mains Power Supply

    Always secure mains cables to the cabinet to prevent movement. Figure 10: Connecting the mains power supply 1. Mains fuse 2. Live 3. Earth 4. Neutral For fuse specifications, see Chapter 5 “Technical specifications” on page 71. 1X-E4 Series Installation Manual...

  • Page 25: Selecting 115 Or 230 Vac Operation

    Figure 11 below. Caution: Risk of equipment damage. An incorrect power setting can destroy the power supply. Figure 11: Selecting 115 or 230 VAC operation 1X-E4 Series Installation Manual...

  • Page 26: Connecting The Batteries

    Figure 4 on page 9. The 24 VDC auxiliary output is supervised for short circuit and voltage output level. WARNING: Never use the auxiliary output to power expansion boards connected to the same control panel as this might damage the control panel hardware. 1X-E4 Series Installation Manual...

  • Page 27: Connecting Alarm And Fault Relays

    Each 2010-1-NB network board has two ports. Each port is connected (point to point) to the corresponding ports of the network board in another control panel. Figure 13: Network board connections Two wiring options are possible: • Ring configuration • Bus configuration 1X-E4 Series Installation Manual...
  • Page 28 (sounder and fire routing outputs) are not remote between panels. Bus network configuration is not normally recommended, as it does not provide for redundancy in the transmission path. For bus configuration (Class B), connect control panels as shown below. Figure 15: Fire network bus configuration 1X-E4 Series Installation Manual...

  • Page 29: Configuration And Commissioning

    The advanced configuration menu 40 Sounder operation during a zone test 42 Sounder re-sound 43 Zone configuration 44 Zone delay 45 Zone type 46 Input configuration 47 Changing user level passwords 49 Auxiliary 24 V reset 50 1X-E4 Series Installation Manual...
  • Page 30 Expansion board configuration 53 Fire network and repeaters configuration 56 Basic configuration options 57 Advanced configuration options 59 Commissioning 63 Before commissioning the control panel 63 Commissioning the control panel 64 Functional tests 66 Response times 66 1X-E4 Series Installation Manual...

  • Page 31: The User Interface

    19. Earth Fault LED 9. Service Detector LED 20. Supply Fault LED 10. Expansion I/O Fault/Disabled LED 21. Fire Routing Delay button and LED 11. General Disable button and LED 22. Fire Routing On/Acknowledge button and LEDs 1X-E4 Series Installation Manual...

  • Page 32: User Levels

    This level is also required for installers that require minor customizations after configuring a basic installation. Passwords and indications for each user level are described in “User level passwords and indications” on page 27. 1X-E4 Series Installation Manual...
  • Page 33 If you have used advanced configuration options to set a custom input configuration, zone delay, zone configuration, or zone type, then the seven- segment display defaults to the custom display operating mode. See “Panel mode” on page 36 for details. 1X-E4 Series Installation Manual...

  • Page 34: Configuration Overview

    Confirms a menu selection or a value selection entry. [1] [1] Panels configured as repeaters in a fire network normally display the status of several panels. Pressing this button for 3 seconds provides a temporary display of local panel status. 1X-E4 Series Installation Manual...
  • Page 35 Select a menu using buttons 1 and 3 when this LED is steady. — or — Select a submenu using buttons 1 and 3 when this LED is flashing. Value Select a value using buttons 2 and 4 when this LED is steady 1X-E4 Series Installation Manual...

  • Page 36: Common Configuration Tasks

    1. Set the display as shown below, and then press Enter. The Panel Silence LED flashes to confirm that a configuration change has been applied. Note: Make all the configuration changes required before exiting configuration mode and saving your changes. 1X-E4 Series Installation Manual...
  • Page 37 Both decimal points on the display are off To restore the previous configuration: 1. Set the display as shown below, and then press Enter. To restore the factory configuration: 1. Set the display as shown below, and then press Enter. 1X-E4 Series Installation Manual...

  • Page 38: Basic Configuration

    Fire routing delay 00 to 10 minutes Extended fire routing delay 00 to 10 minutes Add an expansion board [1] 00 to 04 modules Fire network identifier [2] 00 to 32 Restore previous configuration Restore factory configuration 1X-E4 Series Installation Manual...
  • Page 39 [2] Additional menu options are available if the panel is configured for connection to a fire network (i.e. the fire network identifier is not 00). This requires an optional fire network board. See the topics “Connecting a fire network” on page 18 and “Fire network and repeaters configuration” on page 46. 1X-E4 Series Installation Manual...

  • Page 40: Basic Default Configuration

    (via the advanced configuration menu), then the second digit is a zero, as shown below. Display Configuration NEN 2575 four evacuation areas preset configuration NEN 2575 two evacuation areas preset configuration NEN 2575 one evacuation area preset configuration NEN 2575 custom configuration 1X-E4 Series Installation Manual...

  • Page 41: En 54-13 Supervision Mode

    The available settings for this feature are shown below. Display Description Default setting. EN 54-13 zone supervision is disabled and all outputs are configured as Class B. EN 54-13 zone supervision is enabled and all outputs are configured as Class A. 1X-E4 Series Installation Manual...

  • Page 42: Panel Mode

    • Zone delay • Zone configuration • Zone type • Input configuration The seven-segment display will alternate the custom and base operating mode indications, as shown above. 1X-E4 Series Installation Manual...

  • Page 43: Fire Routing Delay

    A fire routing inhibit delay input is not activated (if configured) • Any input using the delays off function must not be active If the delay is not enabled, the control panel activates fire routing (if configured) immediately after the detection of the fire alarm. 1X-E4 Series Installation Manual...

  • Page 44: Extended Fire Routing Delay

    The extended fire routing delay becomes the active delay to activate fire routing when an extended fire routing delay switch (connected to an input configured accordingly) is activated while the standard fire routing delay elapses. 1X-E4 Series Installation Manual...

  • Page 45: Adding Expansion Boards

    “Expansion board configuration” on page 53. Adding a fire network board For information on how to add a fire network board to the system and how to configure it, see “Fire network and repeaters configuration” on page 56. 1X-E4 Series Installation Manual...

  • Page 46: Advanced Configuration

    ON/OFF Fire routing delay 00 to 10 minutes Extended fire routing delay 00 to 10 minutes Add an expansion board 00 to 04 modules Fire network identifier 00 to 32 Software version Read-only Configuration version Read-only 1X-E4 Series Installation Manual...
  • Page 47 User level 3 basic password 0 to 4444 User level 3 advanced password 0 to 4444 Control panel PCB serial number Read only Auxiliary 24 V reset ON/OFF Restore previous configuration Restore factory configuration Exit without saving Exit and save 1X-E4 Series Installation Manual...

  • Page 48: Sounder Operation During A Zone Test

    Description The internal buzzer and sounders sound for 5 seconds when an alarm is activated in a zone test. The internal buzzer and sounders do not sound when an alarm is activated in a zone test. 1X-E4 Series Installation Manual...

  • Page 49: Sounder Re-Sound

    Note: For new fire alarm events in the same zone, sounders will always re- sound if the first alarm is reported by a detector and the new alarm is reported by a manual call point. 1X-E4 Series Installation Manual...

  • Page 50: Zone Configuration

    Passive end-of-line with CleanMe [1] Active end-of-line with CleanMe [1] Intrinsically-safe zone [1][2] [1] Option not available if EN 54-13 supervision is enabled. [2] By default, even zones are configured as manual and odd zones are set as automatic. 1X-E4 Series Installation Manual...

  • Page 51: Zone Delay

    The available settings for this feature are shown below. Display Description Configured delays are applied when the alarm is reported from this zone. Configured delays are not applied. Outputs activate immediately when the alarm is reported from this zone. 1X-E4 Series Installation Manual...

  • Page 52: Zone Type

    Manual zone. All fire alarms are treated as reported by a manual call point, even if the fire alarm is reported by a detector in the zone. [1] This option is not available if EN 54-13 is enabled or an intrinsically-safe zone is configured. 1X-E4 Series Installation Manual...

  • Page 53: Input Configuration

    Fire routing inhibit delay Input active deactivates fire routing delays. Class change Sounders are activated while the input is active Fault warning output open supervision An inactive input indicates the fault warning output has an open circuit wiring fault. 1X-E4 Series Installation Manual...
  • Page 54 An active input in other condition generates a fire routing fault. [1] Can be configured for only one input per control panel. [2] Supervision for wiring open and short conditions is available. A 15 kΩ end-of-line is required. 1X-E4 Series Installation Manual...

  • Page 55: Changing User Level Passwords

    1. Set the display for the desired user level password, and then press Enter. 2. Set the display as shown below, and then press Enter. 3. Select a value using the value selection buttons (2 and 4). 4. Press Enter. 5. Save your changes. 1X-E4 Series Installation Manual...

  • Page 56: Auxiliary 24 V Reset

    3. Press Enter. 4. Save your changes. The available settings for this feature are shown below. Display Description Resetting the control panel resets the AUX 24V output. Resetting the control panel does not reset the AUX 24V output. 1X-E4 Series Installation Manual...

  • Page 57: Software, Configuration, And Serial Number Information

    B Display the software version or serial number for expansion board C Display the software version or serial number for expansion board D Display the software version or serial number for the network board 1X-E4 Series Installation Manual...
  • Page 58 4. The software version is displayed in three consecutive segments, as shown below. Segment Description Example Is the major release identifier Is the minor release identifier Is the version cycle number In the above example, the reading is for software version 1.1.7. 1X-E4 Series Installation Manual...

  • Page 59: Expansion Board Configuration

    Once an expansion board is installed and added to the control panel configuration, the following additional configuration options appear on the basic and advanced configuration menus. Note: These configuration options are repeated for each of the installed expansion boards (A, B, C, and D). 1X-E4 Series Installation Manual...
  • Page 60 ON LED on the expansion board flashes fast to indicate that the module function configuration menu is active. 2. Select a value from 01 to 94 using the value selection buttons (2 and 4). 3. Press Enter. 4. Save your changes. 1X-E4 Series Installation Manual...
  • Page 61 2. Select a value from 00 to 10 using the value selection buttons (2 and 4). 3. Press Enter. 4. Repeat steps 1 to 3 as required for each output (1 to 4) on each installed module (A, B, C, and D) where a delay is required. 5. Save your changes. 1X-E4 Series Installation Manual...

  • Page 62: Fire Network And Repeaters Configuration

    (depending on repeater configuration settings). To display information for only that panel, press the Enter key for 3 seconds to provide a temporary, 30-second display of the local status indications. 1X-E4 Series Installation Manual...

  • Page 63: Basic Configuration Options

    If nI is not 0 (networking activated), a network fault is reported if the network card is not present. The Network Fault LED blinks every 10 seconds to indicate that the panel is connected to the network without faults. 1X-E4 Series Installation Manual...
  • Page 64 The control panel will repeat faults in the repeater panel. • The control panel will enter alarm and generate activations with remote zones. • The control panel will control its outputs (no addressable system in the network). 1X-E4 Series Installation Manual...

  • Page 65: Advanced Configuration Options

    On/ OFF Default: On Firenet repeater type 2n = Zones Repeater Pn = Panels Repeater Default: 2n Firenet map Submenu: 1 – 32 Values: On/OFF Default: ON for nodes 1 and 2, OFF for the rest 1X-E4 Series Installation Manual...
  • Page 66 Any control panel in the fire network can repeat the information of other nodes that form part of its firenet map. A unique panel or several panels can be repeated at the same time (including addressable panels) by defining the repeater map. 1X-E4 Series Installation Manual...
  • Page 67 If we disable zone 1 in control panel 1 but control panel 2 is not repeated, zone 1 in panel 2 will not be disabled. (This allows disabling only part of the shared zone). 1X-E4 Series Installation Manual...
  • Page 68 By default, firenet remote output control is off for standalone applications or pure conventional fire networks where the control panel controls its outputs. 1X-E4 Series Installation Manual...

  • Page 69: Commissioning

    • The batteries are connected correctly, and comply with all requirements described in “Connecting the batteries” on page 20 • All fire alarm and evacuation system configuration complies with the corresponding operating mode and local regulations 1X-E4 Series Installation Manual...

  • Page 70: Commissioning The Control Panel

    If the fault status persists after reset, the control panel aborts the startup sequence and turns on the System Fault LED. When this happens, check all control panel connections and configuration, as described in “Before commissioning the control panel” on page 63. 1X-E4 Series Installation Manual...
  • Page 71 To power up the control panel from the batteries, press the battery start button on the control panel PCB (marked as BAT. START, see Figure 19 below). Keep the button pressed for approximately 5 seconds. Figure 19: Battery startup button 1X-E4 Series Installation Manual...

  • Page 72: Functional Tests

    Less than 3 minutes Mains fault Less than 3 minutes Out of service fault Less than 100 seconds Fuse/protection fault Less than 3 minutes System fault Less than 100 seconds Battery high resistance fault Less than 4 hours 1X-E4 Series Installation Manual...

  • Page 73: Maintenance

    Chapter 4 Maintenance Summary This chapter includes information on fire alarm and evacuation system maintenance and battery maintenance. Content System maintenance 68 Quarterly maintenance 68 Annual maintenance 68 Cleaning the control panel 68 Battery maintenance 69 1X-E4 Series Installation Manual...

  • Page 74: System Maintenance

    Keep the outside and inside of the control panel clean. Carry out periodic cleaning using a damp cloth for the outside. Do not use products containing solvents to clean the control panel. Do not clean the inside of the cabinet with liquid products. 1X-E4 Series Installation Manual...

  • Page 75: Battery Maintenance

    1. Disconnect and remove the existing batteries from the cabinet. 2. Install and connect the replacement batteries using the bridge provided. Observe correct polarity. 3. Dispose of the batteries as required by local or regional regulations. 1X-E4 Series Installation Manual...
  • Page 76 Chapter 4: Maintenance 1X-E4 Series Installation Manual...

  • Page 77: Technical Specifications

    This chapter includes technical specifications for your fire alarm and evacuation control panel. Content Zone specifications 72 Input and output specifications 73 Power supply specifications 75 Mechanical and environmental specifications 76 Fire network specifications 76 Cabinet drawings and dimensions 77 1X-E4 Series Installation Manual...

  • Page 78: Zone Specifications

    Zone impedance < 55 Ω Open circuit reference range Zone impedance > 8 kΩ Zone device current consumption ≤ 2.6 mA [1] Mixed zones are not allowed on installations requiring EN 54-13 compliance or intrinsically- safe zones 1X-E4 Series Installation Manual...

  • Page 79: Input And Output Specifications

    1 mA max. (for activation with short-circuit contact) Voltage between terminals 28 V max. (for deactivation with open circuit) [1] Fire routing acknowledgement inputs [2] For EN 54-13 compliance, the active impedance should be from 220 Ω to 3.9 kΩ 1X-E4 Series Installation Manual...
  • Page 80 28 VDC max. 21 VDC min. Current 250 mA max. [1] The number of available outputs depends on the control panel model, supervision type, and operating mode. See “Operating mode presets” on page 80 for more information. 1X-E4 Series Installation Manual...

  • Page 81: Power Supply Specifications

    0.069 A Max. current consumption in standby (Imax a) 0.39 A Max. current consumption in alarm (Imax b) 2.78 A [1] With a single power source. [2] No faults, no battery charging, with standard resistive EOL. 1X-E4 Series Installation Manual...

  • Page 82: Mechanical And Environmental Specifications

    For detailed cabinet drawings and dimensions, see “Cabinet drawings and dimensions” on page 77. Fire network specifications Table 37: Fire network specifications Maximum distance between control 1.2 km panels Maximum capacity 32 nodes and 64 zones Communication protocol Proprietary peer-to-peer protocol based on RS-485 1X-E4 Series Installation Manual...

  • Page 83: Cabinet Drawings And Dimensions

    Chapter 5: Technical specifications Cabinet drawings and dimensions Figure 20: Cabinet with cover 1X-E4 Series Installation Manual...
  • Page 84 Chapter 5: Technical specifications Figure 21: Cabinet without cover 1X-E4 Series Installation Manual...

  • Page 85: Appendix A Configuration Presets

    This appendix includes detailed information on operating mode and expansion board configuration presets. Content Operating mode presets 80 NEN 2575 4E presets 80 NEN 2575 2E presets 81 NEN 2575 1E presets 81 Additional configuration characteristics 82 Expansion board presets 82 1X-E4 Series Installation Manual...

  • Page 86: Operating Mode Presets

    [1] In this mode, EN 54-13 requires an additional 2010-1SB expansion board, configured with four separate outputs. An alarm in zone 3 will activate output 1 and output 2. An alarm in zone 4 will activate output 3 and output 4. 1X-E4 Series Installation Manual...

  • Page 87: Nen 2575 2E Presets

    Fire routing (activated by a manual fire alarm device) NEN 2575 1E presets Table 42: Configuration presets Preset Control panel One evacuation area EOL type Passive Output type Class B Evacuation sounder outputs Fire routing outputs Zone type Odd: Automatic Even: Manual 1X-E4 Series Installation Manual...

  • Page 88: Expansion Board Presets

    An additional (optional) supervised expansion board may be installed for individual automatic and manual fire routing outputs. Expansion board presets The following tables include the display settings for relay and supervised output expansion board configuration presets. 1X-E4 Series Installation Manual...
  • Page 89 7 or 8 1 and 2 3 and 4 5 and 6 7 and 8 1, 2, 3, or 4 5, 6, 7, or 8 1 and 2 3 and 4 1 or 2 3 or 4 1X-E4 Series Installation Manual...
  • Page 90 3 to 4 Alarm Fault [1] Buzzer on Reset on Buzzer on Reset on Buzzer on Reset on 34 [2] Fire Routing (Auto) Fire routing (Manual) 35 [2] Fire routing Fault warning output [3] Fault [1] 1X-E4 Series Installation Manual...
  • Page 91 Display Events Output Delay Sounders evacuation output 1 Sounders evacuation output 2 Sounders evacuation output 1 Sounders evacuation output 2 Sounders evacuation output 1 Sounders evacuation output 2 Sounders evacuation output 3 Sounders evacuation output 4 1X-E4 Series Installation Manual...
  • Page 92 3 and 4 Alarm 1 and 2 Fault 3 and 4 Fault [1] 1 and 2 3 and 4 Alarm 1 and 2 Fault [1] 3 and 4 Buzzer on 1 and 2 Reset on 3 and 4 1X-E4 Series Installation Manual...
  • Page 93 Sounders evacuation output 2 3 and 4 Sounders evacuation output Sounders evacuation output 2 Sounders evacuation output 3 Sounders evacuation output 4 [1] Each evacuation area is linked to a respective indication, button and functionality in the user interface 1X-E4 Series Installation Manual...
  • Page 94 Appendix A: Configuration presets 1X-E4 Series Installation Manual...

  • Page 95: Appendix B Regulatory Information

    Appendix B Regulatory information Summary This appendix contains regulatory information that applies to your control panel. Content European standards 90 European regulations for construction products 91 1X-E4 Series Installation Manual...

  • Page 96: European Standards

    European standards European standards for fire control and indicating equipment The 1X-E4 Series fire and evacuation control panels have been designed in accordance with European EN 54-2, EN 54-4, and NEN 2575 standards. In addition, all models comply with the following EN 54-2 optional requirements.

  • Page 97: European Regulations For Construction Products

    Year of first CE marking Year of first UKCA marking Declaration of Performance 360-3100-1099 number Product identification See model number on product identification label Intended use See the product Declaration of Performance Declared performance See the product Declaration of Performance 1X-E4 Series Installation Manual...
  • Page 98 Appendix B: Regulatory information 1X-E4 Series Installation Manual...

  • Page 99: Index

    12 connecting expansion boards, 21 important information, ii connecting fire routing equipment to input and output specifications, 73 supervised outputs, 17 input configuration, 47 connecting inputs, 13 input functionality, 13 connecting manual call points, 12 1X-E4 Series Installation Manual...
