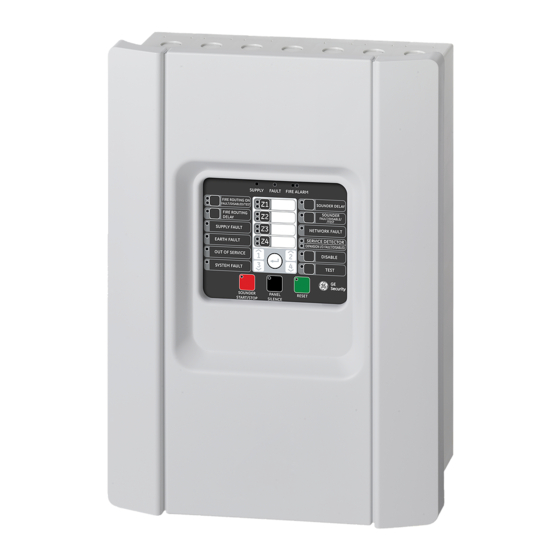

1X-F Series Quick Installation Guide
Figure 1: Zone and device connections
Overview
This document provides quick installation information for
your product. For detailed installation information,
including EN 54-13, intrinsically safe, and BS 5839-1
operating mode requirements, see the installation
manual.
Zones and zone devices
Connect zone wires and devices as shown in Figure 1.
Line resistance
Mixed zones
Automatic / manual zones
Detectors and manual call points per zone
Dx700 series detectors
Other detectors
Manual call points
[1] Or as defined by local codes and standards
Manual call point resistance [1]
Mixed zone
Manual zone
[1] Resistance must be rated at 1 W min.
P/N 501-415003-4-20 • REV 2.0 • ISS 06JUL11
40 Ω max.
55 Ω max.
20 max.
32 max. [1]
32 max.
100 Ω
100 to 680 Ω
Inputs and outputs
The function of inputs and outputs is defined by the
operating mode.
Inputs
EN 54-2 Remote reset
EN 54-2 Evacuation Remote reset
EN 54-2 Scandinavia Fire routing / extended fire
routing delay [1]
BS 5839-1 Class change
NBN S21-100 Remote reset
NEN 2535 Fire routing inhibit delay
[1] Four- and eight-zone control panels only.
Input circuits should have a maximum resistance of
100 Ω (including any cable resistance).
Sounder outputs
EN 54-2 OUT1, OUT2, and OUT3
EN 54-2 Evacuation OUT1, OUT2, OUT3, and OUT4
EN 54-2 Scandinavia OUT1, OUT2, and OUT3
BS 5839-1 OUT1, OUT2, OUT3, and OUT4
NBN S21-100 OUT1 and OUT2 (Evacuation sounders)
OUT3 and OUT4 (Warning sounders)
NEN 2535 OUT1 and OUT2
Delays off
Delays off
Delays off
Delays off
Delays off
Delays off
