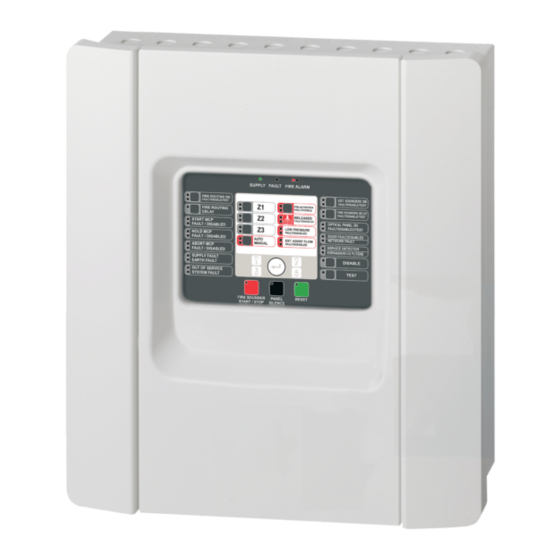

Aritech 1 3E Series Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1X-X3E Series Installation
Manual
P/N 501-419303-1-20 • ISS 20JUL21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1 3E Series and is the answer not in the manual?

Questions and answers

Related Manuals for Aritech 1 3E Series

Summary of Contents for Aritech 1 3E Series

  • Page 1 1X-X3E Series Installation Manual P/N 501-419303-1-20 • ISS 20JUL21...
  • Page 2 Copyright © 2021 Carrier. All rights reserved. Trademarks and 1X-X3E Series is a trademark of Carrier. patents Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. Manufacturer Carrier Manufacturing Poland Spòlka Z o.o., Ul.

  • Page 3: Table Of Contents

    Content Important information ii Chapter 1 Introduction 1 Product description 2 Product compatibility 2 Operating modes 2 Chapter 2 Installation 3 Control panel cabinet layout 4 Cabinet installation 5 Connections 7 Chapter 3 Configuration and commissioning 23 The user interface 25 User levels 26 Configuration overview 27 Basic configuration 31...

  • Page 4: Important Information

    Important information This is the installation manual for the 1X-X3E Series Extinguishing and Fire Alarm Control Panels. Read these instructions and all related documentation entirely before operating this product. Firmware compatibility Information in this document covers control panels with firmware version 2.0 or later.
  • Page 5 Product warnings and disclaimers THESE PRODUCTS ARE INTENDED FOR SALE TO AND INSTALLATION BY QUALIFIED PROFESSIONALS. CARRIER FIRE & SECURITY B.V. CANNOT PROVIDE ANY ASSURANCE THAT ANY PERSON OR ENTITY BUYING ITS PRODUCTS, INCLUDING ANY “AUTHORIZED DEALER” OR “AUTHORIZED RESELLER”, IS PROPERLY TRAINED OR EXPERIENCED TO CORRECTLY INSTALL FIRE AND SECURITY RELATED PRODUCTS.
  • Page 6 Product symbols The following symbols are used on the product. This symbol indicates that caution is necessary when operating or maintaining the device or control close to where the symbol is placed. This symbol indicates that the installation manual should be consulted when operating or maintaining the device or control close to where the symbol is placed.

  • Page 7: Introduction

    Chapter 1 Introduction Summary This chapter provides an introduction to your control panel and the available operating modes Content Product description 2 Product compatibility 2 Operating modes 2 1X-X3E Series Installation Manual...

  • Page 8: Product Description

    Chapter 1: Introduction Product description The 1X-X3E Series control panel provides three fire detection zones (Z1, Z2, and Z3) and several manual call point (MCP) and control inputs that control the extinguishing actions for a single extinguishing area. If a fire detection zone is not configured as part of the extinguishing detection area, the control panel provides standard fire panel functionality for that fire detection zone (for example, the panel activates fire sounders, fire routing, and other auxiliary outputs).

  • Page 9: Installation

    Chapter 2 Installation Summary This chapter explains how to install your control panel, how to connect zones, fire and extinguishing system devices, and the power supply. Note: This product must be installed and maintained by qualified personnel adhering to the CEN/TS 54-14 standard (or the corresponding national standard) and any other applicable regulations.

  • Page 10: Control Panel Cabinet Layout

    Chapter 2: Installation Control panel cabinet layout Figure 1: Control panel cabinet layout 1. Seven-segment display 7. Power supply unit 2. Zone, input, output, and relay connectors 8. Key connector (see note) 3. Cable knockouts 9. Fuse terminal block 4. Mounting screw knockouts 10.

  • Page 11: Cabinet Installation

    Chapter 2: Installation Cabinet installation Preparing the cabinet Before installing the cabinet, remove the front cover, and then remove cable knockouts from the top, bottom, and rear of the cabinet as required. Where to install the cabinet Make sure the installation location is free from construction dust and debris, and immune to extreme temperature ranges and humidity.

  • Page 12: Fixing The Cabinet To The Wall

    Chapter 2: Installation Fixing the cabinet to the wall Fix the cabinet to the wall using five M4 × 30 screws and five 6 mm diameter wall plugs, as shown below. Figure 2: Mounting hole locations To fix the control panel cabinet to the wall: 1.

  • Page 13: Connections

    Chapter 2: Installation Connections WARNING: Electrocution hazard. To avoid personal injury or death from electrocution, do not make any control panel or system connections while the control panel is connected to the mains power supply. Recommended cables Recommended cables for optimal system performance are shown in the table below.
  • Page 14 Chapter 2: Installation Connecting zones Figure 3 below shows connections for the default configuration (option 2). Figure 3: Connecting zones for the default configuration 1. Zones in the extinguishing area 2. Zone for standard (mixed) fire detection 3. Galvanic barrier (for intrinsically safe conventional detectors / intrinsically safe mode only) 4.
  • Page 15 Chapter 2: Installation Table 4: Zone termination Installation type Termination EN 54-2 4.7 kΩ, 5%, 1/4 W end-of-line resistor BS 7273 Active end-of-line device (see note below) EN 54-13 EOL-Z end of line device (polarity sensitive) Intrinsically safe 4.7 kΩ, 5%, 1/4 W end-of-line resistor Note: For BS 7273 installations an active end-of-line device must be installed (instead of an end-of-line resistor).

  • Page 16: Connecting Inputs

    Chapter 2: Installation Connecting inputs Input functionality Each control panel has eight inputs, marked IN1 to IN8 on the control panel PCB. Input functionality is shown in the table below. Table 6: Input functionality Input Function Supervision Start extinguishing manual call point Supervised Hold extinguishing manual call point Supervised...
  • Page 17 Chapter 2: Installation Connecting extinguishing system manual call points The manual call point inputs require an activation impedance between 100 and 620 Ω, 2 W. These are normally connected in series with a normally open (NO) contact. An end-of-line resistance of 15 kΩ is required. When the abort extinguishing or hold extinguishing manual call points are activated, the control panel activates the related relay outputs on the main board.
  • Page 18 Chapter 2: Installation See “Hold mode” on page 45 for instructions on setting the MCP Hold operating mode. MCP Abort. Aborts the extinguishing process. During the standby, extinguishing preactivation, extinguishing activation, and fire alarm states, activating the MCP Abort device prevents the extinguishing process until the MCP Abort device is deactivated and the control panel is reset.
  • Page 19 Chapter 2: Installation The “Extinguishing agent flow” option lets you define the functionality of this device. Here are the details. When the extinguishing agent flow option is set to OFF, the panel enters the extinguishing released state when the actuator output is activated. The panel does not require confirmation of the flow to enter this state.

  • Page 20: Connecting Outputs

    Chapter 2: Installation Connecting a remote reset device The remote reset input allows the control panel to be reset from a remote location. The reset operation is the same as using the Reset button on the control panel user interface. Note: EU ordinances and regulations require the use of a key switch to control access to this function.
  • Page 21 Chapter 2: Installation Output Function Type and status OUT8 Extinguishing actuator Supervised (extinguishing EOL) Off = −11 VDC (supervision) On = +24 VDC Connecting free-of-voltage outputs These outputs use the normally open (NO) and the common (C) terminals of a relay to provide the free-of-voltage, isolated, unsupervised switch functionality.
  • Page 22 Chapter 2: Installation Connecting standard supervised outputs All standard supervised outputs require a 15 kΩ, 5%, 1/4 W end-of-line resistor as termination for proper detection of wiring problems (open or short circuit). If an output is not used, the end-of-line resistor must be installed across the unused terminals.

  • Page 23: Connecting The Mains Power Supply

    Chapter 2: Installation Figure 7: Control panel extinguishing actuator connection 1. 2010-1EXT-EOL board 2. Extinguishing actuator device Connecting the mains power supply Note: To avoid unwanted arcing, connect the mains power supply before connecting the batteries. The control panel can be operated at 110 VAC / 60 Hz or 240 VAC / 50 Hz (+10% or −15%).
  • Page 24 Chapter 2: Installation Selecting 115 or 230 VAC operation WARNING: Electrocution hazard. To avoid personal injury or death from electrocution, remove all sources of power and allow stored energy to discharge before installing or removing equipment. The default power setting is 230 VAC. For 115 VAC operation change the power setting switch, located on the side of the power supply unit, as shown in Figure 9 below.

  • Page 25: Connecting The Batteries

    Chapter 2: Installation Connecting the batteries The control panel requires two 12 V, 7.2 or 12 Ah rechargeable, sealed, lead- acid batteries. Batteries must be installed in series, at the base of the control panel cabinet. Use the battery lead and bridge provided and connect batteries to the BATT connector on the control panel PCB, as shown below.

  • Page 26: Connecting Other Equipment

    Chapter 2: Installation Connecting other equipment Connecting auxiliary equipment Connect auxiliary equipment to the 24VAUX output as shown in Figure 11 below. The 24 VDC auxiliary output is supervised for short circuit and voltage output. Figure 11: Auxiliary power supply output connection (24VAUX) 1.

  • Page 27: Connecting Expansion Boards

    Chapter 2: Installation Connecting expansion boards Caution: Risk of equipment damage. Always disconnect the control panel from the mains power supply before installing an expansion board. See your expansion board installation sheet for detailed installation information. Connecting a fire network Note: See the 2010-1-NB Network Board Installation Sheet for detailed installation and connection information.
  • Page 28 Chapter 2: Installation Ring configuration Ring network configuration is recommended as it provides for redundancy in the transmission path. For ring configuration (Class A), use both ports to connect all network boards or control panels to form a ring, as shown below. Figure 14: Fire network ring configuration Bus configuration Note:...

  • Page 29: Configuration And Commissioning

    Chapter 3 Configuration and commissioning Summary This chapter includes information on how to configure and commission the control panel. Configuration is divided in basic configuration and advanced configuration options. Content The user interface 25 Released tone 46 User levels 26 Extinguishing zones 47 Configuration overview 27 Manual-only mode local 48...
  • Page 30 Chapter 3: Configuration and commissioning Expansion board configuration 62 Commissioning 73 Adding an expansion board 62 Before commissioning the control Expansion board panel 73 configuration 62 Commissioning the control Fire network and repeaters panel 73 configuration 65 Functional tests 75 Basic configuration options 65 Response times 75 Advanced configuration...

  • Page 31: The User Interface

    Chapter 3: Configuration and commissioning The user interface Figure 16: The user interface 1. Zone buttons and LEDs (Z1, Z2, Z3) 16. Low Pressure LEDs 2. Supply LED 17. Extinguishing Agent Flow LEDs 3. General Fault LED 18. Reset button and LED 4.

  • Page 32: User Levels

    Chapter 3: Configuration and commissioning BS 7273 user interface For control panels configured for BS 7273, the labels for some interface buttons change, as shown in the table below. Table 9: Configured changes to interface buttons and LEDs Item BS 7273 user interface Auto/Manual mode and Only Manual mode button and LEDs Extinguishing disabled switch LEDs User levels...

  • Page 33: Configuration Overview

    Chapter 3: Configuration and commissioning Passwords and indications for each user level are described in “User level passwords and indications” below. User level passwords and indications The default user level passwords and the corresponding LED and seven- segment display indications are shown in Table 10 below. The seven-segment display is only visible when the control panel cover is removed.
  • Page 34 Chapter 3: Configuration and commissioning Figure 17: Front panel configuration controls Button Function Scroll to the next configuration menu on the seven-segment display. Scroll to the next configuration value for the active menu on the seven-segment display. Scroll to the previous configuration menu on the seven-segment display. Scroll to the previous configuration value for the active menu on the seven-segment display.

  • Page 35: Common Configuration Tasks

    Chapter 3: Configuration and commissioning Common configuration tasks To enter configuration mode: 1. Remove the control panel cover so that the seven-segment display is visible. 2. Enter a valid installer user level password (3333 for basic configuration or 4444 for advanced configuration). 3.
  • Page 36 Chapter 3: Configuration and commissioning The control panel will exit configuration mode after 5 minutes if no button is pressed. Visible indications for current value and selected value Current and selected values are indicated as follows. Table 12: Visible indications for values Status Indication Current value...

  • Page 37: Basic Configuration

    Chapter 3: Configuration and commissioning Basic configuration The default password for basic configuration is 3333. After entering the password, the first displayed menu will be Basic default configuration (indicating the basic installer user level). For more information see “User level passwords and indications”...
  • Page 38 Chapter 3: Configuration and commissioning Display Menu Values Restore previous configuration Restore factory configuration Exit without saving Exit and save [1] Additional menu options are available if one or more expansion boards are installed. See “Expansion board configuration” on page 62. [2] Additional menu options are available if Firenet is configured.

  • Page 39: Basic Default Configuration

    Chapter 3: Configuration and commissioning Basic default configuration Use this menu to select operating mode configuration presets. In both basic standard and basic evacuation modes, zone detection is the same. The extinguishing area uses Z1 and Z2 (automatic). Fire detection uses Z3 (mixed).

  • Page 40: Supervision Mode

    Chapter 3: Configuration and commissioning Supervision mode Use this menu to configure the supervision mode. To configure the supervision mode: 1. Set the display as shown below, and then press Enter. 2. Select a value using the value selection buttons (2 and 4). The Zone LEDs flashes fast to indicate that the supervision mode is active.

  • Page 41: Panel Mode

    Chapter 3: Configuration and commissioning Panel mode Use this read-only menu to view the operating mode of the control panel. To view the panel mode: 1. Set the display as shown below, and then press Enter. Display indications for each operating mode are shown below. Display Panel mode Description...

  • Page 42: Actuator Delay

    Chapter 3: Configuration and commissioning Actuator delay When the control panel enters the extinguishing activation state, the actuator delay starts counting down. The extinguishing actuator output is activated when the delay time expires. (Activation of the MCP Hold or MCP Abort point prevents the panel from entering the extinguishing activation state.) Use this menu to configure an actuator delay of up to 60 seconds (in steps of 5 seconds).

  • Page 43: Fire Sounders Delay

    Chapter 3: Configuration and commissioning Fire sounders delay Use this menu to configure a fire sounders delay of up to 10 minutes. The default setting is 00 (no delay). For more information on delay operation, see “Fire delay operation” on page 38. To configure a fire sounders delay: 1.

  • Page 44: Fire Delay Operation

    Chapter 3: Configuration and commissioning Once configured the delay must be enabled at the operator user level. To enable a configured delay: 1. Exit the installer user level. 2. Enter the operator user level password. 3. Press the Fire Routing Delay button. A steady Fire Routing Delay LED indicates that the delay is enabled.

  • Page 45: Advanced Configuration

    Chapter 3: Configuration and commissioning Advanced configuration The default password for advanced configuration is 4444. After entering the password, the first displayed menu is the Advanced default configuration (indicating advanced installer user level). For more information see “User level passwords and indications” on page 27. The advanced configuration menu Configuration options for this menu are shown in the table below.
  • Page 46 Chapter 3: Configuration and commissioning Display Menu Values Released tone Pulsed Continuous Default: Continuous Extinguishing zones Z1 extinguishing, Z2 and Z3 fire Z1 and Z2 extinguishing. Z3 fire Z1, Z2, and Z3 extinguishing No extinguishing zones, Z1, Z2, Z3 fire Default: Z1, Z2 –...
  • Page 47 Chapter 3: Configuration and commissioning Display Menu Values Fault latch ON/OFF Default: On Module number 00 to 04 See “Expansion board function” on page 63. Firenet identifier 0 to 32 0: Stand-alone (no networking) Default: 0 Firenet group. Allows you to configure 0000 to 0218 the panel to work in a 32-node network Default: 0000...
  • Page 48 Chapter 3: Configuration and commissioning Display Menu Values Firenet analogue repeater remote node ON/OFF Default: Off Firenet remote output control ON/OFF Default: Off Extinguishing Firenet global controls ON/OFF Default: Off Software version Read-only Configuration version Read-only Configuration time stamp Read-only Configuration date stamp Read-only Passive EOL...

  • Page 49: Safety Door Monitoring

    Chapter 3: Configuration and commissioning Display Menu Values Restore previous configuration Restore factory configuration Exit without saving Exit and save Note: See “Basic configuration” on page 31 for details on the settings available in basic configuration: Panel mode, Actuator delay, Reset disabled delay, Fire sounders delay, and Fire routing delay.

  • Page 50: Safety Door Fault Delay

    Chapter 3: Configuration and commissioning Safety door fault delay Use this menu to configure a delay from 10 to 90 seconds (in steps of 5 seconds) in reporting safety door faults caused by incorrect status (open or closed). The default setting is 30 seconds. To configure a safety door delay: 1.

  • Page 51: Hold Mode

    Chapter 3: Configuration and commissioning Hold mode Use this menu to set the operating mode for this device (mode A or B). The default setting is mode A. For a description of the emergency MCP Hold function and device, see “Connecting extinguishing system manual call points”...

  • Page 52: Released Tone

    Chapter 3: Configuration and commissioning The available settings for this feature are shown below. Display Description Pulsed mode Continuous mode Released tone Use this menu to set the extinguishing released tone of the extinguishing sounders on the control panel PCB: continuous or pulsed. The pulsed pattern is 1 second on, 1 second off.

  • Page 53: Extinguishing Zones

    Chapter 3: Configuration and commissioning Extinguishing zones Use this menu option to define the extinguishing area required for your installation. The control panel provides three fire detection zones that can be assigned for automatic detection of an extinguishing event. Fire detection zones that are not linked to the extinguishing area are assigned standard fire detection functionality.

  • Page 54: Manual-Only Mode Local

    Chapter 3: Configuration and commissioning Display Description Z1, Z2, and Z3 are configured as extinguishing zones. No fire detection zones are provided. No extinguishing zones are provided. Z1, Z2, Z3 are configured as fire detection zones. Manual-only mode local When the control panel is in manual-only mode, the extinguishing process can only be initiated manually, using the MCP Start device.

  • Page 55: Manual Key Mode

    Chapter 3: Configuration and commissioning Manual key mode Use this menu to configure the manual key functionality if your control panel has a key switch installed in the door. The default setting is off. To configure the manual key mode: 1.

  • Page 56: Enable Flooding Time

    Chapter 3: Configuration and commissioning Enable flooding time Use this menu to enable the control of the flooding time. The flooding time is the time that the actuator remained activated (5 to 300 seconds in steps of 5 seconds). The default setting is off. To enable the flooding time: 1.

  • Page 57: Actuator Delay For Start Manual Call Point

    Chapter 3: Configuration and commissioning 3. Press Enter 4. Save your changes. The available settings for this feature are shown below. Display Description Setting the number of minutes (range is from 0 to 5). Setting the number of seconds (range is from 0 to 55). Actuator delay for start manual call point Use this menu to configure the control panel behaviour after a manual extinguishing event (from the MCP Start point): activate the actuator immediately...

  • Page 58: Extinguishing Agent Flow

    Chapter 3: Configuration and commissioning Extinguishing agent flow Use this menu to configure how the control panel enters into the extinguishing released state: using extinguishing agent flow confirmation or immediately after the activation of the actuator. The default setting does not use extinguishing agent flow confirmation: extinguishing agent flow OFF.

  • Page 59: Fire Sounder Re-Sound

    Chapter 3: Configuration and commissioning 3. Press Enter. 4. Save your changes. The available settings for this feature are shown below. Display Description The internal buzzer and sounders sound for 5 seconds when an alarm is activated in a zone test. The internal buzzer and sounders do not sound when an alarm is activated in a zone test.

  • Page 60: Fire Sounders Silence Disabled Time

    Chapter 3: Configuration and commissioning Fire sounders silence disabled time Note: For control panels in basic evacuation mode, any configured fire sounders silence disable times are ignored. To prevent the immediate silencing of fire sounders when a fire alarm is first reported, the Fire Sounder Start/Stop button may be temporarily disabled for a preconfigured period of time when a configured fire sounder delay is counting down.

  • Page 61: Battery Fault Check

    Chapter 3: Configuration and commissioning Battery fault check Use this menu to configure the battery fault check, on or off. This determines whether the battery fault is supervised or not. The default setting is On. Note: If disabled, it does not comply with EN 54-2 and EN 54-4. To configure the battery fault check: 1.

  • Page 62: Fault Latch

    Chapter 3: Configuration and commissioning The available settings for this feature are shown below. Display Description The earth fault check is enabled. The earth fault check is disabled. Fault latch Use this menu to configure the fault latch, on or off. This determines whether the power supply fault is latched or not.

  • Page 63: Zone Configuration

    Chapter 3: Configuration and commissioning Zone configuration Use this menu to configure zone settings for each zone in your fire alarm system. To configure the zone: 1. Set the display as shown below, and then press Enter. 2. Select the zone (for example, zone 1), and then press Enter. The red Zone LED flashes fast to indicate that the corresponding zone configuration menu is active.

  • Page 64: Zone Delay

    Chapter 3: Configuration and commissioning Zone delay Use this menu to configure zone delays, on or off, for each zone in your fire alarm system. The default setting is On. To configure the zone delay: 1. Set the display as shown below, and then press Enter. 2.

  • Page 65: Changing User Level Passwords

    Chapter 3: Configuration and commissioning 4. Press Enter. 5. Save your changes. The available settings for this feature are shown below. Display Description Mixed zone. The control panel automatically distinguishes between an automatic alarm (generated by a detector) and a manual alarm (generated by a manual call point fitted with a 100 Ω...

  • Page 66: Auxiliary 24 V Reset

    Chapter 3: Configuration and commissioning To change the last two digits of a user level password: 1. Set the display for the desired user level password, and then press Enter. 2. Set the display as shown below, and then press Enter. 3.

  • Page 67: Configuration, Software, And Pcb Identification

    Chapter 3: Configuration and commissioning Configuration, software, and PCB identification Use the menu options shown below to see the control panel software version, configuration version, configuration date and time stamps, and the PCB serial number. For expansion boards, you can also see the software version and PCB serial number.

  • Page 68: Expansion Board Configuration

    Chapter 3: Configuration and commissioning Expansion board configuration Adding an expansion board Use this menu, available from the basic or advanced configuration menus, to configure the number of installed expansion boards. The default value is 00. To add an expansion board: 1.
  • Page 69 Chapter 3: Configuration and commissioning Table 17: Expansion board A configuration options Display Description Value Module A function 01 to 96 Module A output 1 delay 00 to 10 minutes Module A output 2 delay 00 to 10 minutes Module A output 3 delay 00 to 10 minutes Module A output 4 delay 00 to 10 minutes...
  • Page 70 Chapter 3: Configuration and commissioning Expansion board output delay Use this menu to configure an expansion board output delay of up to 10 minutes, where the feature is available. To configure an expansion board output delay: 1. For output 1 on expansion board A, set the display as shown below, and then press Enter.

  • Page 71: Fire Network And Repeaters Configuration

    Chapter 3: Configuration and commissioning Fire network and repeaters configuration This section describes how to configure a fire network of conventional control panels in order to: • Connect repeaters (any conventional control panel can be configured to operate as a repeater) •...
  • Page 72 Chapter 3: Configuration and commissioning Display Description Value Firenet initial zone number 0001 to 9999 Default: 0001 The number has four digits. Identified by position, these are: 1234. Press Up to enter the first two digits of the number (positions 1 and 2). Press Down to enter the last two digits of the number (positions 3 and 4).
  • Page 73 Chapter 3: Configuration and commissioning Therefore, change this setting if you want to keep activations and indications independent in different control panels. Example: In a six-zone virtual panel, three-zone panel 1 can keep initial zone with the default value (1) and the three- zone panel 2 requires changing initial zone from 1 to 4.

  • Page 74: Advanced Configuration Options

    Chapter 3: Configuration and commissioning 2. Select a value using the value selection buttons (2 and 4). The Network fault LED flashes fast to indicate that the Firenet analogue remote node menu is active. 3. Press Enter. 4. Save your changes. Advanced configuration options The following table shows the options (available to an advanced configuration user) for creating an advanced fire network configuration.
  • Page 75 Chapter 3: Configuration and commissioning Display Description Value Process remote zones ON/OFF Default: On Firenet map 01 to 32 ON/OFF On for nodes 1 and 2, off for the rest Firenet repeater map 01 to 32 ON/OFF On for nodes 1 and 2, off for the rest Firenet analogue repeater remote node ON/OFF Default: Off...
  • Page 76 Chapter 3: Configuration and commissioning Process remote zones Use this menu to process (or not process) remote zones in alarm. This setting lets you decide whether the control panel enters alarm and reacts accordingly or not, with any remote zone outside its range of zones. This option lets you: •...
  • Page 77 Chapter 3: Configuration and commissioning By default, the basic setting to establish the number of nodes will set the control panel to activate in the Firenet repeater map the same control panels in the Firenet map (the control panels by default will repeat all the information of all other control panels in the fire network).
  • Page 78 Chapter 3: Configuration and commissioning Firenet remote output control Use this menu to configure an addressable compatible control panel in the fire network to command the outputs of the conventional panel (fire sounders, fire routing, and expansion board outputs) with advanced programming options. Consult the addressable control panel documentation (including its configuration utility software) if you require this type of advanced configuration.

  • Page 79: Commissioning

    Chapter 3: Configuration and commissioning Commissioning Before commissioning the control panel Before commissioning the control panel, make sure that: • The control panel has been correctly installed. • The mains power is 110 VAC or 240 VAC, is connected correctly, and complies with all requirements described in “Connecting the mains power supply”...
  • Page 80 Chapter 3: Configuration and commissioning If any other indicators are on, check your installation thoroughly before proceeding. Fault startup In accordance with EN 54-2, the control panel has a special startup sequence that is used after an internal fault has been detected by the control panel. This is indicated as follows: •...

  • Page 81: Functional Tests

    Chapter 3: Configuration and commissioning Functional tests Create a short circuit and an open circuit in each zone to test fault reporting for both types of fault. If available, activate a fire manual call point to test manual fire alarm reporting. The control panel should override any configured delays and activate alarm notification devices and fire routing (where applicable) immediately.
  • Page 82 Chapter 3: Configuration and commissioning Event Response time Fire routing fault Less than 30 seconds Earth fault Less than 100 seconds Battery charger fault Less than 100 seconds No batteries found fault Less than 3 minutes Mains fault Less than 3 minutes Low battery fault Less than 100 seconds Fuse/protection fault...

  • Page 83: Maintenance

    Chapter 4 Maintenance Summary This chapter includes information on system maintenance and battery maintenance. Content System maintenance 78 Quarterly maintenance 78 Annual maintenance 78 Cleaning the control panel 78 Battery maintenance 79 1X-X3E Series Installation Manual...

  • Page 84: System Maintenance

    Chapter 4: Maintenance System maintenance Perform the following maintenance tasks to ensure that your fire alarm and extinguishing system works correctly and complies with all required European regulations. WARNING: Risk of death or serious injury. Disconnect the extinguishing agent actuator from the control panel before you issue the actuator output test command.

  • Page 85: Battery Maintenance

    Chapter 4: Maintenance Battery maintenance Compatible batteries The control panel requires two 12V, 7.2 or 12 Ah rechargeable sealed lead-acid batteries. Compatible batteries are shown below. Table 21: Compatible batteries 12V, 7.2 Ah BS127N Fiamm FG20721/2 Yuasa NP7-12 12V, 12 Ah BS130N Fiamm FG21201/2 Yuasa NP12-12...
  • Page 86 Chapter 4: Maintenance 1X-X3E Series Installation Manual...

  • Page 87: Technical Specifications

    Chapter 5 Technical specifications Summary This chapter includes technical specifications for your control panel. Content Zone specifications 82 Input and output specifications 83 Power supply specifications 85 Mechanical and environmental specifications 86 1X-X3E Series Installation Manual...

  • Page 88: Zone Specifications

    Active end-of-line device (BS 7273 mode) EOL-Z end of line device - polarity sensitive (EN 54-13 mode) Number of detectors per zone Aritech Dx700 series 20 max. Other detectors 32 max. [1][2] Number of manual call points per zone 32 max.

  • Page 89: Input And Output Specifications

    Chapter 5: Technical specifications Table 24: Automatic and manual zone specifications EN 54-2 EN 54-13 Intrinsically safe BS 7273 Resistance (per zone) 55 Ω max. 50 Ω max. 50 Ω max. Capacitance (per zone) 500 nF max. 500 nF max. 500 nF max.
  • Page 90 Chapter 5: Technical specifications Low pressure input impedance values Configured as normally closed Standby: > 62 Ω to 8 kΩ Low pressure: > 10 kΩ to 21 kΩ Configured as normally open Standby > 10 kΩ to 21 kΩ Low pressure: > 62 Ω to 8 kΩ Table 26: Output specifications Number of outputs Outputs functionality:...

  • Page 91: Power Supply Specifications

    Chapter 5: Technical specifications Fault relay output Number of potential-free contacts 2 (normally-open NO and normally-closed NC) Current rating (when active) 2 A max. at 30 VDC Output active (energized) No fault (short between C and NO contacts) Auxiliary 24 VDC output Output voltage 21 to 28 VDC (24 VDC nominal) Output current...

  • Page 92: Mechanical And Environmental Specifications

    Chapter 5: Technical specifications Table 30: Expansion board current consumption [1] Number of expansion boards Up to 4 2010-1-SB output specifications Number of outputs 4 (OUT1 to OUT4) Output type 24 VDC supervised output Output inactive −10 to −13 VDC (reverse polarity supervision) Output active 21 to 28 VDC (24 VDC nominal) Current rating (when active)
  • Page 93 Chapter 5: Technical specifications Figure 20: Control panel cabinet without cover 1X-X3E Series Installation Manual...
  • Page 94 Chapter 5: Technical specifications Figure 21: Control panel cabinet with cover 1X-X3E Series Installation Manual...

  • Page 95: Appendix A Configuration Presets

    Appendix A Configuration presets Summary This section includes detailed information on operating mode and expansion board configuration presets. Content Input and output configuration 90 Default delays 90 Basic configuration modes 91 EN 54-2 supervision and Class B fire outputs 91 EN 54-13 supervision and Class A expansion board outputs 92 Expansion board functions 93 EN 54-2 supervision and Class B outputs 93...

  • Page 96: Input And Output Configuration

    Appendix A: Configuration presets Input and output configuration Table 34: Inputs and outputs Start MCP Supervised Hold MCP Supervised Abort MCP Supervised Disable extinguishing switch (BS 7273 Supervised mode) Manual-only mode activation Unsupervised Low pressure indication Supervised Extinguishing agent flow Supervised Safety door fault monitor Supervised...

  • Page 97: Basic Configuration Modes

    Appendix A: Configuration presets Basic configuration modes EN 54-2 supervision and Class B fire outputs Note: The following presets are available for installations that do not use EN 54-13 supervision (the SU setting is Of). See “Supervision mode” on page 34 for more information.

  • Page 98: 54-13 Supervision And Class A Expansion Board Outputs

    Appendix A: Configuration presets BS 7273 mode stage 2 Fire sounders cannot be manually activated. Fire sounders activated intermittently during the sounders delay. Table 39: Presets and zone characteristics Preset Zone description Zone detection Active EOL Z1 and Z2 automatic, for extinguishing event Z3 mixed, for fire detection Active EOL, CleanMe Z1 and Z2 automatic, for extinguishing event...

  • Page 99: Expansion Board Functions

    Appendix A: Configuration presets Basic evacuation mode Fire sounders can be manually activated at the operator user level in this operating mode (a fire alarm is not required). The actuator is activated immediately when the MCP Start is activated. Table 43: Presets and zone characteristics Preset Zone description Zone detection...
  • Page 100 Appendix A: Configuration presets Preset ON status Output Delay Fire alarm Fault Fire alarm Fault Fire alarm Fault Buzzer ON Reset ON Fault [1] Fire alarm Fault [1] Fire alarm Fault [1] Buzzer ON Reset ON Buzzer ON Reset ON Fire alarm Extinguishing activation Extinguishing preactivation...
  • Page 101 Appendix A: Configuration presets Preset ON status Output Delay Hold ON Abort ON Manual-only mode Manual-automatic mode Extinguishing activation disabled Pressure low fault Safety door fault Extinguishing agent flow ON Extinguishing activation Extinguishing released Fire sounders [2] Extinguishing sounders [2] Extinguishing released optical warning [2] Actuator ON [2]...

  • Page 102: 54-13 Supervision And Class A Expansion Board Outputs

    Appendix A: Configuration presets Preset ON status Output Delay Fire routing ON Fire Sounders ON Extinguishing sounders ON [4] Fire Sounders ON Extinguishing sounders ON Extinguishing activation sounders ON Extinguishing released sounders ON [1] Fail-safe mode (output is active when there is no fault). [2] Faults and disable options are linked to the expansion board indications.
  • Page 103 Appendix A: Configuration presets Preset ON status Output Delay Z3 alarm Z1 and Z2 alarm Z2 and Z3 alarm Z1 or Z2 alarm Z2 or Z3 alarm Fire alarm Fault Fire alarm Fault Fault [1] Fire alarm Fault [1] Buzzer ON Reset ON 1X-X3E Series Installation Manual...
