DESCRIPTION OF THE DEVICE.......................................................2
Description of terminals / settings ................................................2
Technical characteristics ..............................................................3
INSTALLATION .................................................................................3
PROGRAMMING ..............................................................................4
Confi guration programming .........................................................4
Confi guration parameters .............................................................4
Default confi guration ....................................................................5
Name programming ......................................................................6
Programming of door-opener codes ............................................6
Audio adjusting .............................................................................6
Calls to users ................................................................................7
Transmission of special codes .....................................................8
Entry of door-opener codes .........................................................8
"Postman" function ......................................................................8
Programming via Bluetooth ..........................................................8
CAMERA MODULE Ref. 1758/40 .....................................................9
REPERTORY MODULE Ref.1158/50 .............................................10
BLIND MODULE Ref.1158/59 ........................................................10
2 VOICE - Technical Manual
SECTION 3L
CALL MODULE
Download from www.urmet.com Technical Manuals area.
SECTION CONTENTS
2
1
sec.3l −−−−

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sinthesi steel 1083/14 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus sinthesi steel 1083/14

  • Page 1: Table Of Contents

    SECTION 3L CALL MODULE Download from www.urmet.com Technical Manuals area. SECTION CONTENTS DIGITAL CALL MODULE Ref.1083/14 (2 Modules) DESCRIPTION OF THE DEVICE............2 Description of terminals / settings ..........2 Technical characteristics ..............3 INSTALLATION .................3 PROGRAMMING ................4 Confi guration programming ............4 Confi guration parameters .............4 Default confi...
  • Page 2: Digital Call Module Ref.1083/14 (2 Modules)

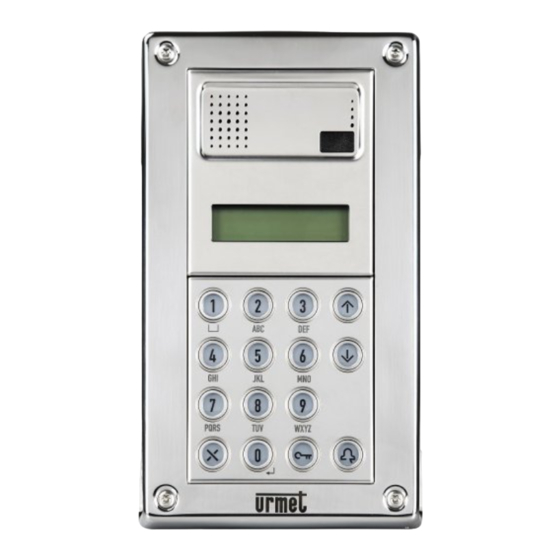

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) DESCRIPTION OF THE DEVICE STRUCTURE DIGITAL CALL MODULE Ref.1083/14 (2 Modules) FRONT VIEW REAR VIEW The Sinthesi Steel digital call module for 2VOICE consists of two Microphone modules. Modularity and vandal-proof protection with an elegant Bluetooth port design enhanced by a bright polished stainless steel fi...
  • Page 3: Technical Characteristics

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) INSTALLATION TECHNICAL CHARACTERISTICS Power voltage (LINE): ............36 – 48 Vdc Power voltage (+ -): ............36 – 48 Vdc Stand-by consumption: ............. Max 85 mA Max. consumption (Video call): ..........220 mA Lock output SE+ e SE-: ....capacitance discharge 22-24 Vdc + holding current max 200 mAdc Lock relay C/NC/NO:............
  • Page 4: Programming

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) PROGRAMMING PROGRAMMING CONFIGURATION PROGRAMMING The confi guration menu is as follows: Enter the code 99999 to access the confi guration and programming menu; the display shows: CONFIGURATION Exit programming PASSWORD MODULE TYPE Enter the password (default 1000) and press to access the <PRI>...
  • Page 5: Default Configuration

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) PROGRAMMING secondary module. • Door opener T2 – Two main stations cannot have the same ID. Two secondary The electric lock may be controlled in “private” or “unrestricted” stations may have the same ID but must have a different mode.
  • Page 6: Name Programming

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) PROGRAMMING NAME PROGRAMMING press to modify the data following the same screen pages as for insertion. The name programming menu is as follows: • Delete ENTER From this menu, the repertory can be scrolled using the arrow keys; pressing , confi...
  • Page 7: Calls To Users

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) PROGRAMMING CALLS TO USERS If the system is busy, the display shows: In stand-by mode, the call module displays: LINE BUSY SELECT NAME WAIT ↑↓ AND PRESS When the system is free again, the call can be repeated. If no names have been inserted in the repertory, the display shows If the repertory contains a high number of names, to make a faster TYPE CODE...
  • Page 8: Transmission Of Special Codes

    DIGITAL CALL MODULE Ref.1083/14 (2 Modules) PROGRAMMING TRANSMISSION OF SPECIAL CODES PROGRAMMING VIA BLUETOOTH If the system comprises special decoders, the call module can send The call module is equipped with a Bluetooth receiver-transmitter commands to activate load driving outputs (lights, gates, etc.) to facilitate programming of confi...
  • Page 9: Camera Module Ref. 1758/40

    CAMERA MODULE Ref.1758/40 INSTALLATION CAMERA MODULE Ref. 1758/40 Camera unit with colour, 50Hz, wide-angle camera and LED light for coax and fi ve-wire video door phone systems. INSTALLATION 1. Install the module at the height shown 2. Fit the module holder in the embedding box 3.
  • Page 10: Repertory Module Ref.1158/50

    REPERTORY MODULE Ref.1158/50 BLIND MODULE Ref.1158/59 CAMERA MODULE CONNECTION REPERTORY MODULE Ref.1158/50 A connector is provided for connecting the Ref. 1758/40 (colour) camera module to the back of the calling module : RED - Power positive (+TC) BLACK - Power negative (R1) WHITE - Video signal coax (V3, V5) Camera Leds Off...
