Chapter 1. Introduction; Overview - Microchip Technology dsPIC33CK User Manual

1.1

OVERVIEW

The dsPIC33CK Low-Voltage Motor Control Board is targeted to drive a low-voltage,
three-phase Permanent Magnet Synchronous Motor (PMSM) or Brushless DC (BLDC)
motor using the dsPIC33CK256MP508. This dsPIC
single-core 16-bit DSC with enhanced on-chip peripherals, such as
High-Resolution PWM (HRPWM),12-bit high-speed ADC cores, analog comparators with
DAC, op amps, QEI, CAN-FD, SENT, UART, SPI, I
In some instances of the document text, the dsPIC33CK Low-Voltage Motor Control Board
is also referred to as the 'Motor Control Board' to enhance readability. The Motor Control
Board is shown in

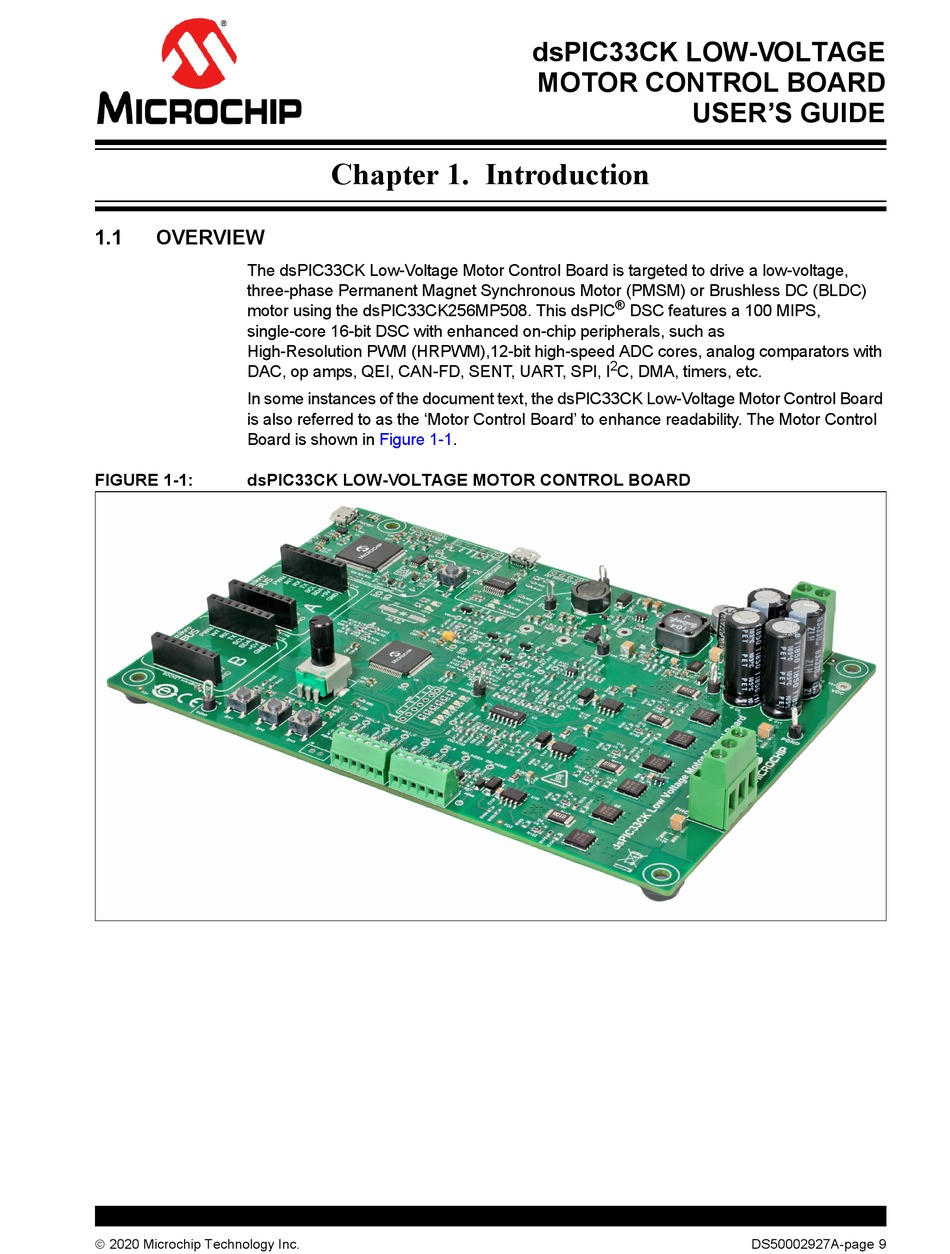

FIGURE 1-1: dsPIC33CK LOW-VOLTAGE MOTOR CONTROL BOARD
 2020 Microchip Technology Inc.

Chapter 1. Introduction

Figure 1-1.
dsPIC33CK LOW-VOLTAGE
MOTOR CONTROL BOARD
USER'S GUIDE
®
DSC features a 100 MIPS,
2
C, DMA, timers, etc.
DS50002927A-page 9
