dsPIC33CK Low-Voltage Motor Control Board User's Guide

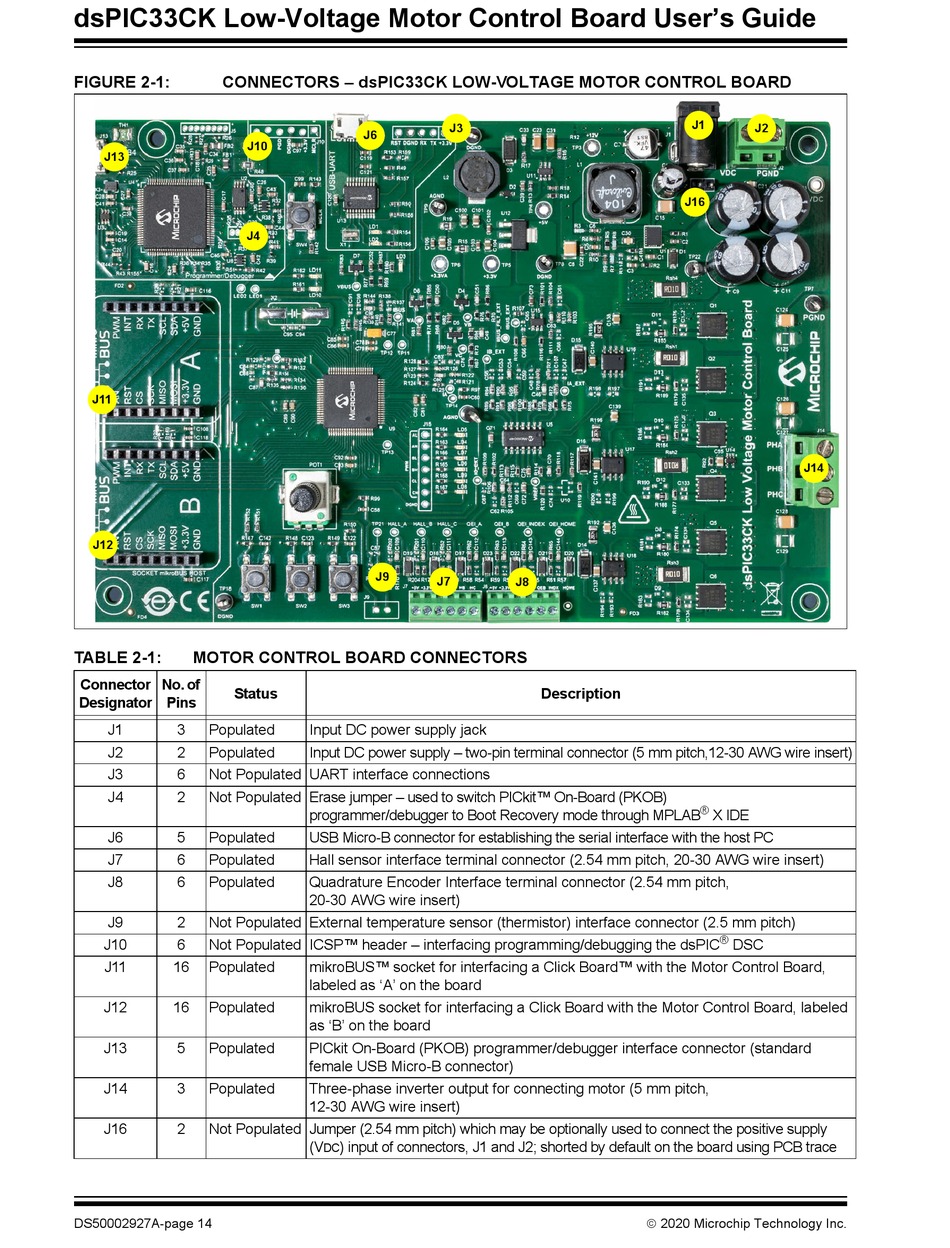

FIGURE 2-1: CONNECTORS – dsPIC33CK LOW-VOLTAGE MOTOR CONTROL BOARD
J10
J13
J4
J11
J12
TABLE 2-1: MOTOR CONTROL BOARD CONNECTORS
Connector No. of
Status
Designator Pins
J1 3 Populated
J2 2 Populated
J3 6 Not Populated UART interface connections
J4 2 Not Populated Erase jumper – used to switch PICkit™ On-Board (PKOB)
J6 5 Populated
J7 6 Populated
J8 6 Populated
J9 2 Not Populated External temperature sensor (thermistor) interface connector (2.5 mm pitch)
J10 6 Not Populated ICSP™ header – interfacing programming/debugging the dsPIC
J11 16 Populated
J12 16 Populated
J13 5 Populated
J14 3 Populated
J16 2 Not Populated Jumper (2.54 mm pitch) which may be optionally used to connect the positive supply
DS50002927A-page 14
J3
J6
J9
J7
Input DC power supply jack
Input DC power supply – two-pin terminal connector (5 mm pitch,12-30 AWG wire insert)
programmer/debugger to Boot Recovery mode through MPLAB
USB Micro-B connector for establishing the serial interface with the host PC
Hall sensor interface terminal connector (2.54 mm pitch, 20-30 AWG wire insert)
Quadrature Encoder Interface terminal connector (2.54 mm pitch,
20-30 AWG wire insert)
mikroBUS™ socket for interfacing a Click Board™ with the Motor Control Board,
labeled as 'A' on the board
mikroBUS socket for interfacing a Click Board with the Motor Control Board, labeled
as 'B' on the board
PICkit On-Board (PKOB) programmer/debugger interface connector (standard
female USB Micro-B connector)
Three-phase inverter output for connecting motor (5 mm pitch,
12-30 AWG wire insert)
(V ) input of connectors, J1 and J2; shorted by default on the board using PCB trace
DC
J1
J16
J8
Description
 2020 Microchip Technology Inc.
J2
J14
®
X IDE
®
DSC
