2.3.3
The potentiometer on the Motor Control Board (shown in
one of the analog inputs of the device and can be used for setting the speed reference.

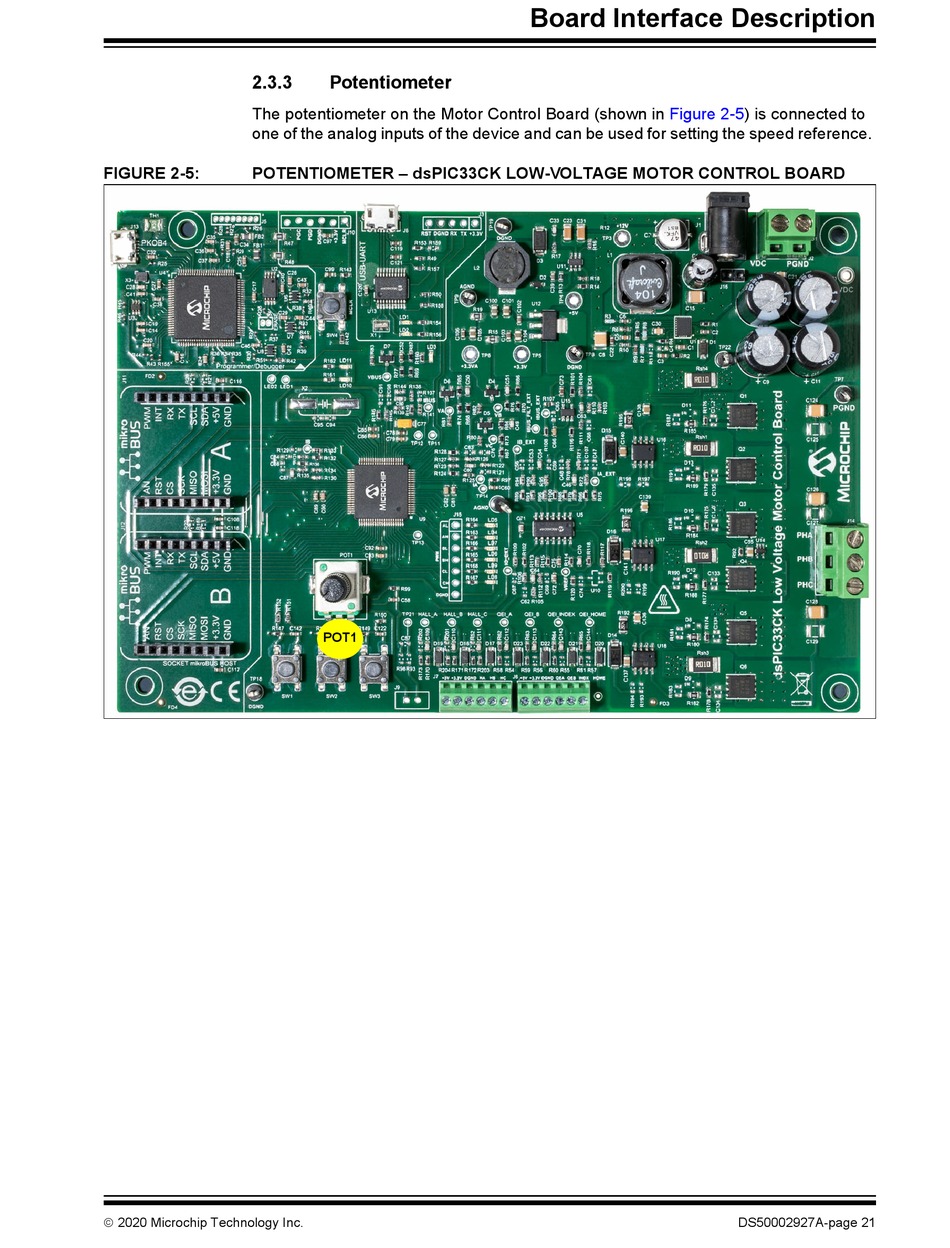

FIGURE 2-5:
POTENTIOMETER – dsPIC33CK LOW-VOLTAGE MOTOR CONTROL BOARD
2020 Microchip Technology Inc.
Potentiometer
POT1
Board Interface Description
Figure
2-5) is connected to
DS50002927A-page 21
