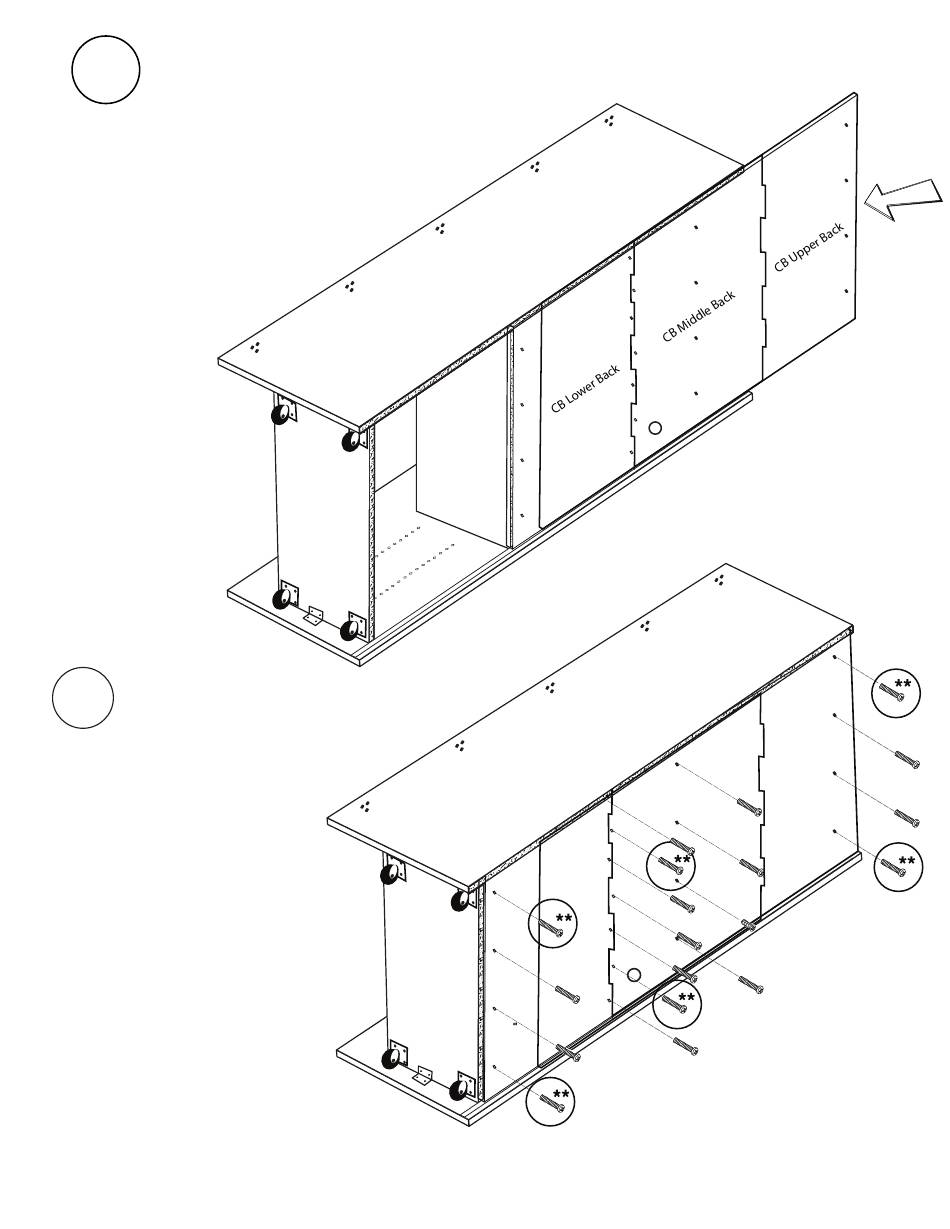

Carefully slide CB Back Panels into
back grooves one at a time, start-
ing with CB Lower Back. Be sure that
holes are aligned with
corresponding pilot holes.
ct and assembly instructions. Do not copy or d
13
Screw in four corners of each
panel first.
Install (19) #5: 28 mm Panhead
Screws into corresponding holes
on back panel to secure. It is safe
to use an electric screwdriver
for this step.
*Make sure back fits
tightly and holes line up
with pilot holes in built
section.
Proprietary, patented product and assembly instructions. Do not copy or distribute.
