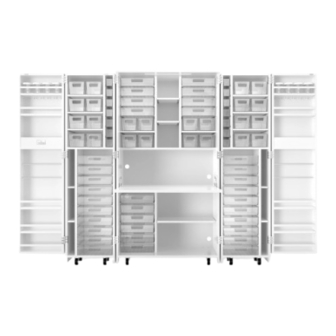

Create Room oh happy day DREAMBOX 2 Manual

Hide thumbs Also See for oh happy day DREAMBOX 2:

Advertisement

Quick Links

Download this manual
oh happy day
YO U' V E REC E I VE D T HE D RE A M BOX 2 !
It's already time for your first project.
The DreamBox 2 assembly instructions are easy to follow. All of the hardware you will need
can be found in one box.
If you have questions at any point of the assembly process, our friendly furniture experts will
be happy to help you.
C U STOM E RS E RV ICE@ C RE AT ERO O M .C O M
W WW.C R EAT ERO O M .CO M
U SA / CANADA : 8 01-2 26-26 8 6
U K / EU :
+4 9 4 0 6 9 6 3 2 9 55 O R + 4 4 7 759 3 3 58 6 8
We are excited for you to enjoy your inspiring new workspace and can't wait to see pictures!
Share your photos on Facebook and Instagram and don't forget to tag @createroomco.
Happy crafting!
(Proprietary patented product and instructions. Do not copy or distribute.)
DreamBox 2 Assembly Instructions
( M -F 9 A M - 5PM M ST )
0823B

Advertisement

loading
Need help?

Need help?

Do you have a question about the oh happy day DREAMBOX 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Create Room oh happy day DREAMBOX 2

Summary of Contents for Create Room oh happy day DREAMBOX 2

  • Page 1 oh happy day YO U’ V E REC E I VE D T HE D RE A M BOX 2 ! It’s already time for your first project. The DreamBox 2 assembly instructions are easy to follow. All of the hardware you will need can be found in one box.
  • Page 2 Use the included Safety Kit with Safety Brackets to properly attach the DreamBox to your wall. Thank you for your attention. Please do not hesitate to reach out with any questions or concerns. Sincerely, The Create Room Team customerservice@createroom.com 801-226-2686...
  • Page 3 center box H A R DWA RE YO U ’ L L NE E D : Base Dowels 13mm Euro Connecting Back Screws Wheels Pins Screws Bolts L/R Table Angle Bracket Stabilizers Confirmant Lifter Wheel Bolt Posts Screws Light strip Wheel Nut Cams 5 mm Hole...
  • Page 4 Install wheels in the corresponding holes. Secure with 10mm wrench. Wheel Nuts Wheel Bolts Wheels 10mm Wrench (not included) Install Cams with arrow pointing towards the edge of the wood. Hammer in Dowels until secure into the side of CB Base. Cams Dowels Arrow...
  • Page 5 Install Posts, Connecting Bolts, Base Pins, Dowels, and Cams into corresponding holes. Dowels Locking Posts Cams Base Pins Connecting Bolts TIPS: 1. Install connecting bolts in 7th hole from gap if using Long Dividers. If purchased short dividers install on the 14th hole. 2.
  • Page 6 Install Dowels and Cams to the corresponding holes on the CB Shelf 1. Dowels Cams TIP: Tap in Dowels lightly with hammer. Insert Posts into corresponding holes on the CB Lid. Posts...
  • Page 7 Attach CB base to CB2. Tighten Cams to secure. Attach CB Shelf 1 to CB2. Secure by tightening Cams. TIP: Over tightening Cams can damage wood.
  • Page 8 CAU T IO N : This step requires 2 people. Attach CB1 onto CB Shelf and Base. Secure by tightening 6 Cams. Install Angle Brackets using Euro Screws. Angle Euro Bracket Screws Attach CB Lid to CB1 and 2. Secure by tightening 6 Cams.
  • Page 9 Slide CB Upper, Middle, Lower Back onto grooves located on CB 1 and CB2. Install Back Screws into corresponding holes manually with screwdriver. Back Screws TIPS: 1. To speed up build manually tighten all back screws about half way then use drill to tighten all the way. 2.
  • Page 10 CAU T I O N: This step requires 2 people. Stand up CB onto wheels. Install CB shelf 2. Tighten White Cams at 45 degree angle. Short divider: Hole 14 Long divider: Hole 7 45° angle TIP: 1. Build against desired wall. 2.
  • Page 11 Insert 4 Connecting Bolts to CB shelf 2 and CB Lid. Insert 2 Connecting Bolts to CB Shelf 1 and CB Base. Connecting Bolts...
  • Page 12 U P PER SHO RT DI V ID ERS : (Does not come with DreamBox, purchase separately). Slide CB Dividers in one at a time (Finished edge in front) and secure by pushing into installed white cams until tight. U PP ER LO NG DIVIDE RS : (The upper long dividers that come with the DreamBox).
  • Page 13 Install 11 Back Screws to the corresponding holes. If installing Short Dividers install 9 Back Screws. SH O RT D IVID E RS : Do NOT install bottom Back Screws if using Short Dividers. Back Screws 5 mm Hole Plugs (Insert 5 mm hole plugs into the two open Right side holes from the INSIDE of the box).
  • Page 14 Install 2 stabilizers. Stabilizers...
  • Page 15 left and right side boxes H A R DWA RE YO U ’ L L NE E D : Base 13mm Euro Door Handles Locking Connecting Support Dowels Screws (screws included) Cams Bolts Pins Angle 5 mm Hole Fixed Posts Wheel Nut Wheel Bolt Wheels...
  • Page 16 LEFT BOX BASE SHOWN. (Repeat steps for Right Base). Install Wheels in the corresponding holes. Secure with 10mm wrench. Wheel Nuts Wheel Bolts Wheels 10mm Wrench (not included) Install Dowels and Cams in corresponding holes. Arrow Dowels Locking TIP: Cams Tap in Dowels lightly with hammer.
  • Page 17 Install Posts, Cams and Base Pins into LB1 and LB2. Base Pins Base Pins Posts Base Support Locking Pins Cams...
  • Page 18 Install Dowels and Cams to the corresponding holes. Dowels Locking Cams TIP: Tap in Dowels lightly with hammer.
  • Page 19 Attach LB Base, LB Shelf, and LB Lid. Secure by tightening 9 Cams. Unfinished Edges Unfinished Edges Unfinished Edges...
  • Page 20 CAU TIO N : This step requires two people. Attach LB2 to LB base, LB Shelf, LB Lid. Secure by tightening 9 Cams. Install 2 Angle Brackets using 8 Euro Screws. TOP of LB lid Euro Screws Angle Bracket...
  • Page 21 Install 10 Posts to the corresponding holes. Flip the door onto LB 1 and 2. Door handle holes on right Posts TIP: Do NOT force posts into holes on LB1 and 2. They will drop into place.
  • Page 22 Flip section over with door facing the ground. Tighten 10 cams to secure door. Install 6 hinges using 18 Euro Screws to secure. 13mm Euro Fixed Screws Hinges...
  • Page 23 Install hardware into RIGHT SIDE pieces. RB Base: RB Lid: Wheel Nuts Dowels Cams Wheel Bolts Caster Wheels Dowels Cams RB1 and RB2: R/L Lower Divider: Metal Shelf Pegs (4 white cams are on other side) Cams Cams Base Support Pins Posts Base Support Pins Posts...
  • Page 24 RIGHT SIDE BOX SHOWN. Repeat steps used to build the Left Side Box. Remember to add angle brackets for strength.
  • Page 25 CAU T IO N: This step requires two people. Attach both Left and Right Boxes to Center Box using 6 Hinges and 18 Euro Screws. Install Door Handles by placing screws through predrilled holes in Left and Right boxes and attaching them to door handle.
  • Page 26 14.1: Install tote tracks into R/L Upper Divider. 14.2: Install metal shelf pegs on R/L Lower Divider. 14.3: Install tote tracks on LB1, and shelf pegs on LB2 corresponding with tracks/pegs in dividers. Tote Tracks Metal Shelf Pegs TIP: 1. First, place dividers in the DreamBox to test their fit. Once you have determined the correct placement, remove the dividers and install the tracks accordingly.
  • Page 27 15.1: Place 12 Connecting Bolts in the corresponding holes on both the left and right boxes. 15.2: Install R/L Upper and Lower Dividers with the white cams facing away from the small tote section. 15.3: Install the 4 remaining connecting bolts under LB and RB Shelf. Secure by locking 16 white cams. LEFT SIDE SHOWN: (Repeat steps for right side) 15.1...
  • Page 28 Add Stabilizers to Side Boxes. Stabilizers...
  • Page 29 left and right swing door HAR DWARE YO U’ L L NE ED : Closed Swing Locking Door Catch 13mm Euro Cams Screws (screws included) Open Swing Door Catch Posts (screws included) PA RTS I NCLUDE : Swing Door Lid Swing Door Base (Lid) (Base)
  • Page 30 Install post and cams into the corresponding holes. Locking Cams Posts...
  • Page 31 Attach Lid and Shelf to S1. Secure by tightening 4 cams.
  • Page 32 Insert S2 into Lid and Shelf. Secure by tightening cams. Slide Back Panel into grooves of S1 and S2. TIP: Grab a friend to help install Back Panel.
  • Page 33 Attach Base. Secure by locking 4 cams. TOP of Base...
  • Page 34 Repeat these steps for another swing door Side 1: Side 2: Posts Posts Lid and Base: Cams Cams Shelf: Back Panel: Cams...
  • Page 35 Repeat steps used to build the previous Swing Door. (Numbered in order of install).
  • Page 36 IMP ORTA NT: Position DreamBox like the below graphic before installing crafting supplies to reduce tipping hazard. DreamBox MUST remain in this enclosed position until the security brackets are installed. All wheels should be facing FORWARD, as shown below, for maximum stability.
  • Page 37 CAU T I O N: This step requires two people. Attach swing doors using 18 Euro Screws. 13mm Euro Screws...
  • Page 38 Place Right and Left Channel Covers onto the corresponding Table lifter. Once attached, use 7 Confirmant Screws to install them to the corresponding holes on Table Top. Left Table Right Table Lifter Lifter Right Channel Cover Left Channel Cover Table Top Confirmant Screws TIP: 1.
  • Page 39 CAU T IO N: This step requires two people. Carefully slide the Table Top and attach the Left and Right Table Lifter to CB 1/2. Secure with 14 Euro Screws. cle needed here? 13mm Euro Screws TIP: Secure 2 Euro Screws in each side before installing all Euro Screws.
  • Page 40 Install 2 sets of Door Catches. (There are no pre-drilled holes as these are optional.) Install Light Kit. Closed Swing Closed Swing Door Catch Door Catch Open Swing Open Swing Open Swing Door Magnet Door Catch Door Catch Light Plug (screws included) Closed Swing...
  • Page 41 moving in! CO NG R ATS O N FI NI S H I NG YO U R D RE AM BOX ASSE M BLY. FRO M H ER E ON O UT IS WHE RE YO U CA N STA RT C USTOM IZING YO UR D RE AMBOX . H A R DWA RE YO U ’...
  • Page 42 WARNING: Serious or fatal crushing injuries can occur from tipping furniture. To prevent tip-over hazard, secure the DreamBox to the wall before use. Determine the appropriate distance of the safety bracket from the wall. Secure the Safety Brackets in place by tightening 4 Short Screws into the DreamBox. Locate the wall studs to find the optimal posi- tion for attachment.
  • Page 43 Skip this step if you did not purchase the Deluxe Crown with Double Light. 4.1: Insert Cams into Crown Base and Center Box Lid. Insert Double Ended Bolts into Crown base. Tighten Cams 4.2: Connect Crown base to Center Box Lid, and tighten cams by turning until locked. 4.3: Insert Posts into Crown Sides and Crown Front.
  • Page 44 Skip this step if you did not purchase the crown. 3.1: Install crown sides and front into crown base and center box lid by inserting posts into corresponding holes. Tighten Cams by turning until tight. 3.2: Install Light Strip by threading cords through right or left hole on Crown Base. Remove adhesive back from lights, and adhere it into the grooves underneath the crown lid.
  • Page 45 three cheers YOU ’R E D OING GREAT! The fun is just beginning. Now it’s time to customize your DreamBox and start moving in. •Begin by customizing your tracks, totes, and shelves to fit your organization needs. •All medium totes require a shelf. All shelves use 4 metal shelf pegs. Tote Tracks Half Set - x56 Full Set - x86...
  • Page 46 Screw in Metal Hooks to Hook Shelf and Swing Door Shelf Support in Swing Door. Install shelves where you like. Swing Door Shelves Swing Door Shelf Metal Hooks Supports TIP: Two swing door shelves needed per pocket.
  • Page 47 Install White Guards and Acrylic Cups. Place Metal Rods into Acrylic Cups and push down. Fill lower divider holes that were not used with 5 mm Hole Plugs. Acrylic Cups Acrylic Guards (for metal rod) Metal Rods 5 mm Hole Plugs...
  • Page 50 yipee! YOU’ VE D O N E I T. Now it’s time to fill up your new DreamBox 2 with all your crafting goodies. Remember to share pictures of your crafts and craft space with us on Facebook @CreateRoomFamily.
  • Page 51 troubleshooting for the dreambox 2 1 –“Can my DreamBox 2 be on carpet?” We highly recommend our furniture on wheels to be on a hard floor. The DreamBox 2 can weigh up to 1200 lbs or more with all of your treasures. The wheels need to “give” a little so the strain isn’t added to the connecting joints of the box. Please use a hard surface under your DreamBox 2 wheels.
