Valor 715CVI Installation Manual

INSTALLATION MANUAL
Cast Surround 715CVI
Use with Valor G3 738 and 739 models ONLY
The 715CVI Cast Surround is finished in Vintage Iron
paint and intended to be used on any Valor G3 model
738 and 739 heaters fitted with either a 741SFB, 743FVI
or a 744FVI inner front trim.
The combined 742CFB Traditional Cast Front + 715CVI
Cast Surround may ONLY be used with 739 direct vent
appliances; installed together on a 738 natural vent
appliance, they will cause vent switch activation and
pilot shutdown.
Installation of the 715CVI Cast Surround does not affect
clearances, framing dimensions, or other specifications
listed in the heater installation manual.
Note: Although not usually necessary, some
installations may require backing or screw anchors
(not supplied) behind decorative cap to secure cast
surround to the wall.

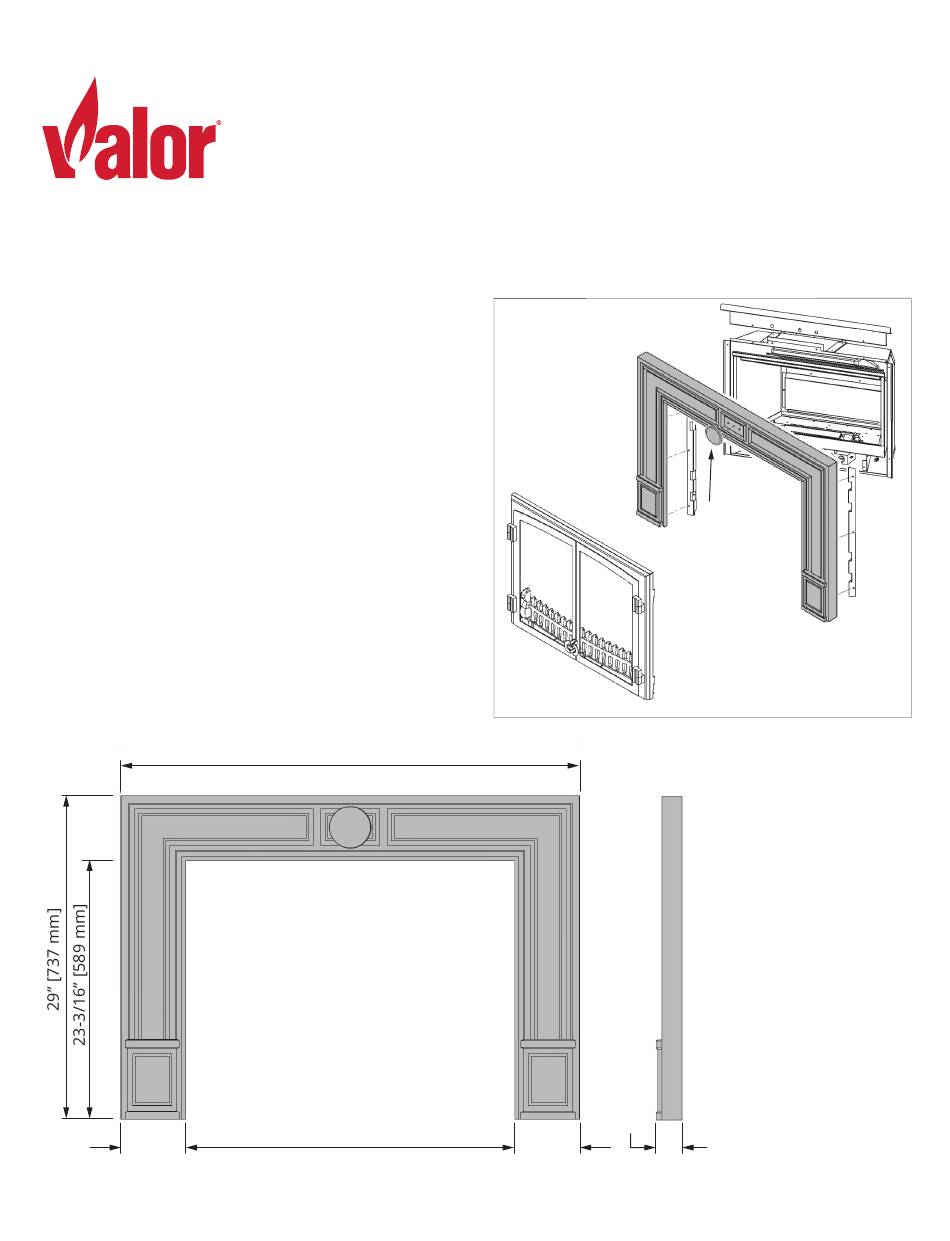

Dimensions
5-3/4"
[146 mm]
4000646-03
© Copyright Miles Industries Ltd., 2020
G3
41" [1041 mm]
29-1/2" [749 mm]
738 or 739
715CVI

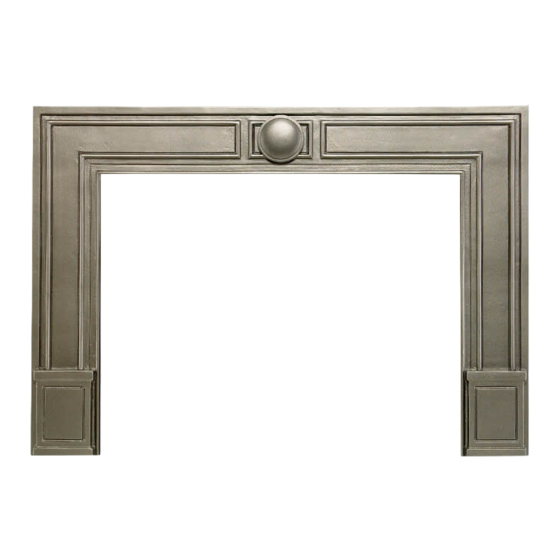

Cast Iron Surround
Choice of Inner Front Trim
(supplied separately)
741SFB Standard Front
743FVI FenderFire Double Door Front
744FVI FenderFire Single Door Front
Overview
2-3/8"
[60 mm]
5-3/4"
[146 mm]
Choice of
Decorative
Caps
(supplied)
