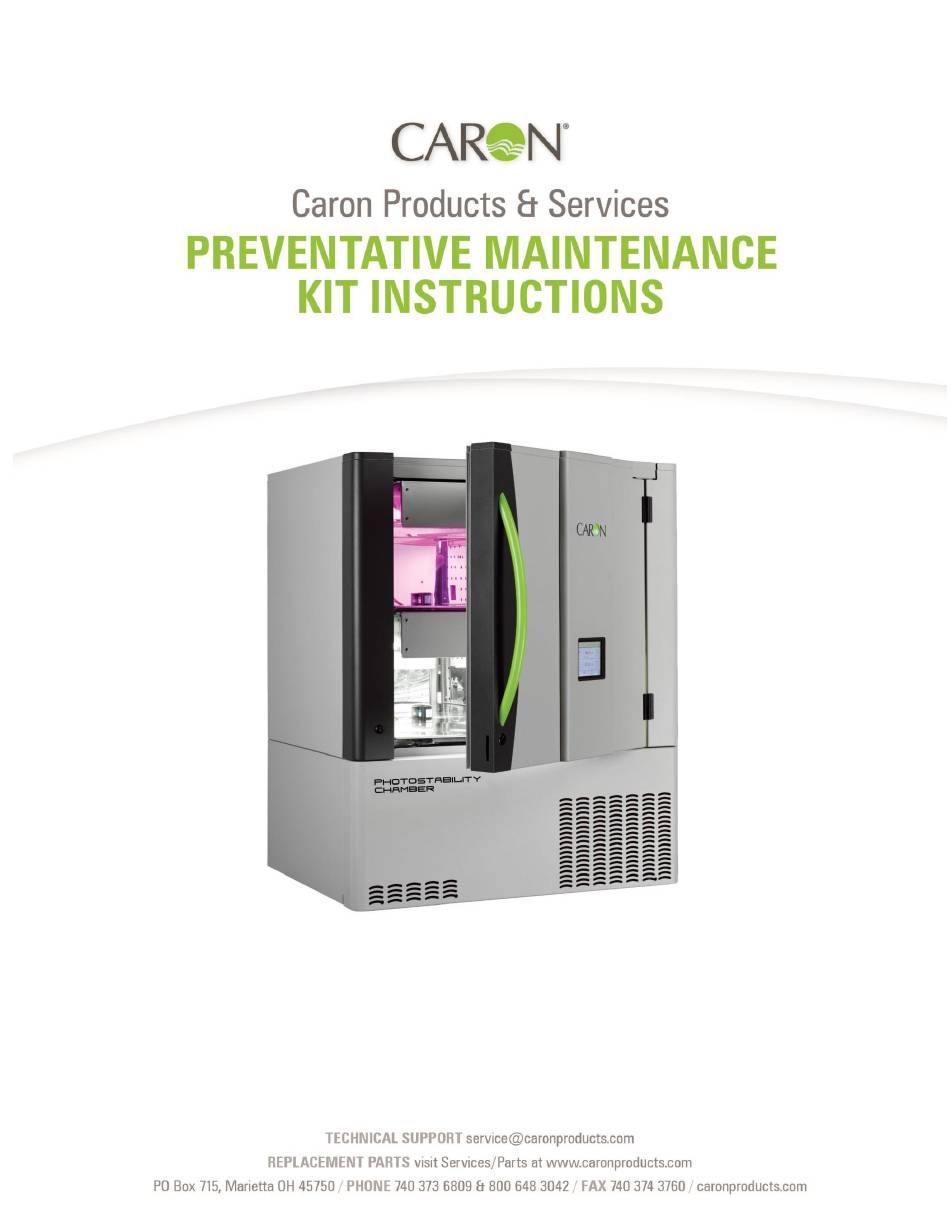

- Page 1 MODEL 6540-1 INST-PM-6540-1-VIS...
- Page 2 Revision Log Revisions Description Letter Date 12-06-2016 Initial release. New cover. 04-04-2018...
-
Page 3: Replacing Lamps
INSTRUCTIONS FOR REPLACING VIS LAMPS IN MODEL 6540-1 Parts Required: (10) Lamps Tools Required: None Parts included in Preventative Maintenance Kit for Model 6540-1 are shown below. Lamps REPLACING LAMPS Note: Photos may have a different appearance depending on chamber options. - Page 4 2. Slide bottom light bank shelf out of chamber as shown below. Bottom Light Bank Shelf 3. Remove light bank shelf and place lamp side up on flat surface as shown below. INST-PM-6540-1-VIS Rev B 04/04/2018...
- Page 5 Repeat for each lamp to be replaced. 6. Slide light bank shelf into chamber and press firmly to seat rear connector as shown below. Light Bank Shelf Press Here to Seat Rear Connector 7. Plug in power cord and turn on chamber. INST-PM-6540-1-VIS Rev B 04/04/2018...
- Page 6 8. Reset lamp life hours by pressing Setup Menu button on right side of MAIN SCREEN as shown below. Setup Menu Button 9. Press LAMP LIFE button as shown below. LAMP LIFE Button 10. Press RESET VIS LAMP HOURS button as shown below. RESET VIS LAMP HOURS Button INST-PM-6540-1-VIS Rev B 04/04/2018...
- Page 7 Check Mark Button Button 12. Press Check Mark button to confirm selection as shown below. Check Mark Button Button 13. Press Check Mark button to return to MAIN SCREEN as shown below. Check Mark Button Button INST-PM-6540-1-VIS Rev B 04/04/2018...
