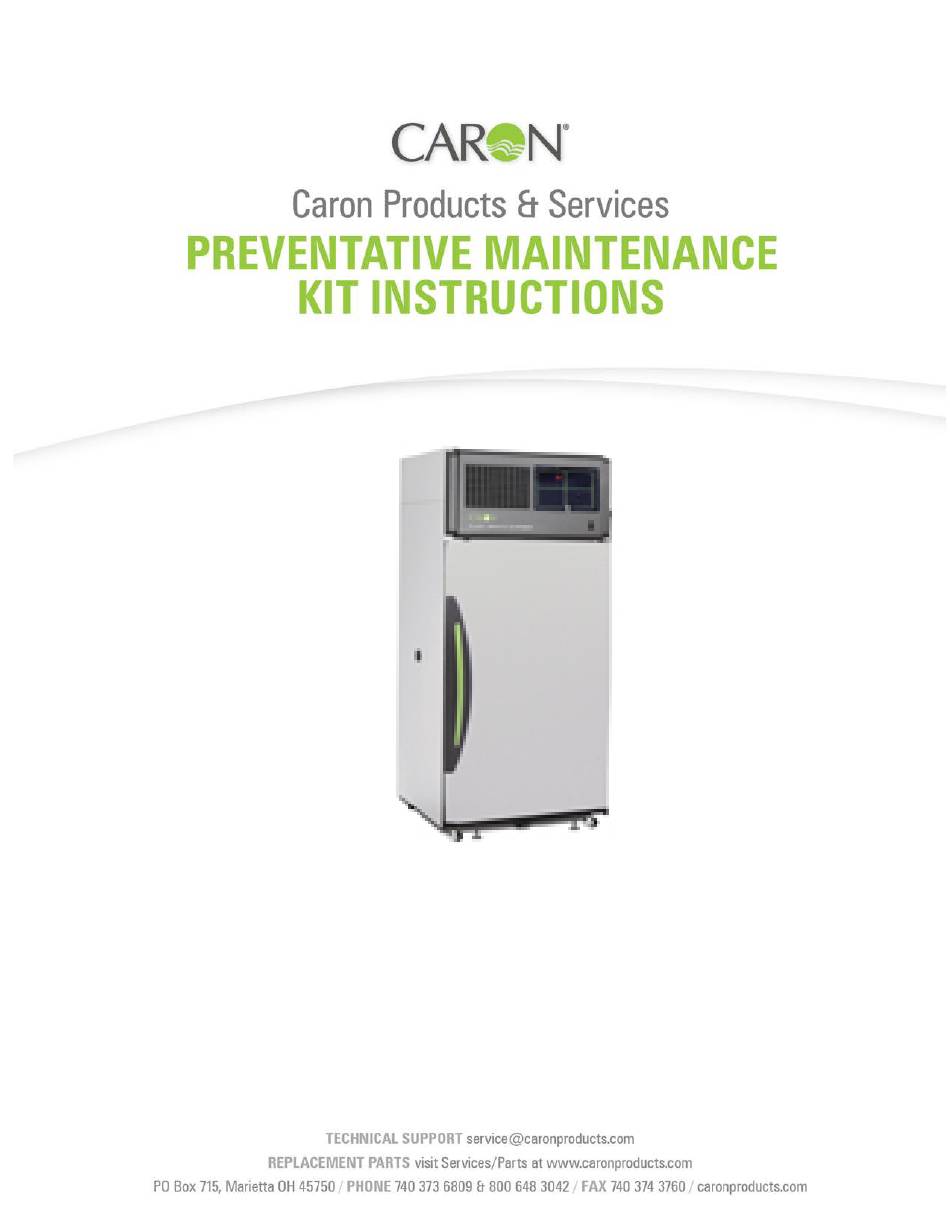

- Page 1 MODEL 6321 INST-PM-6321...
-
Page 2: Revision Log
Revision Log Revisions Description Letter Date 08-15-2018 Initial release. Added new air filter instructions for tab design, new 02-20-2020 parts pics. -
Page 3: Replacing Air Filter
INSTRUCTIONS FOR REPLACING AIR FILTER AND LAMPS IN MODEL 6321 Parts Required: (1) Air Filter, (12) Lamps Tools Required: None Parts included in Preventative Maintenance Kit for Model 6321 are shown below. (1) Air Filter (12) Lamps REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options. - Page 4 4. Install air filter cover with angled edge at top while aligning air filter with guide tracks on both sides and snap into place as shown below. Note: Right side is shown in photos. Guide Track INST-PM-6321 Rev A 08/15/2018...
-
Page 5: Replacing Lamps
Note: Shelves may have multiple light banks. Light banks will be front to back in Model 6321. Light Bank Power Cord 3. Remove shelf with light bank(s) and place lamp side up on flat surface as shown below. - Page 6 9. Insert one end of lamp into lamp socket at an angle and snap into place. Repeat for other end of lamp. 10. Twist each lamp holder cover clockwise to tighten. 11. Fasten lamp shield onto lamp with (2) clamps. 12. Repeat steps above for each lamp to be replaced. INST-PM-6321 Rev A 08/15/2018...
- Page 7 17. Reset “REPLACE LAMPS” indicator light by pressing the “RESET” button on the control panel using a pen or something similar as shown below. “RESET” Button 18. Continue to instructions for replacing additional accessory preventative maintenance items if applicable. INST-PM-6321 Rev A 08/15/2018...
