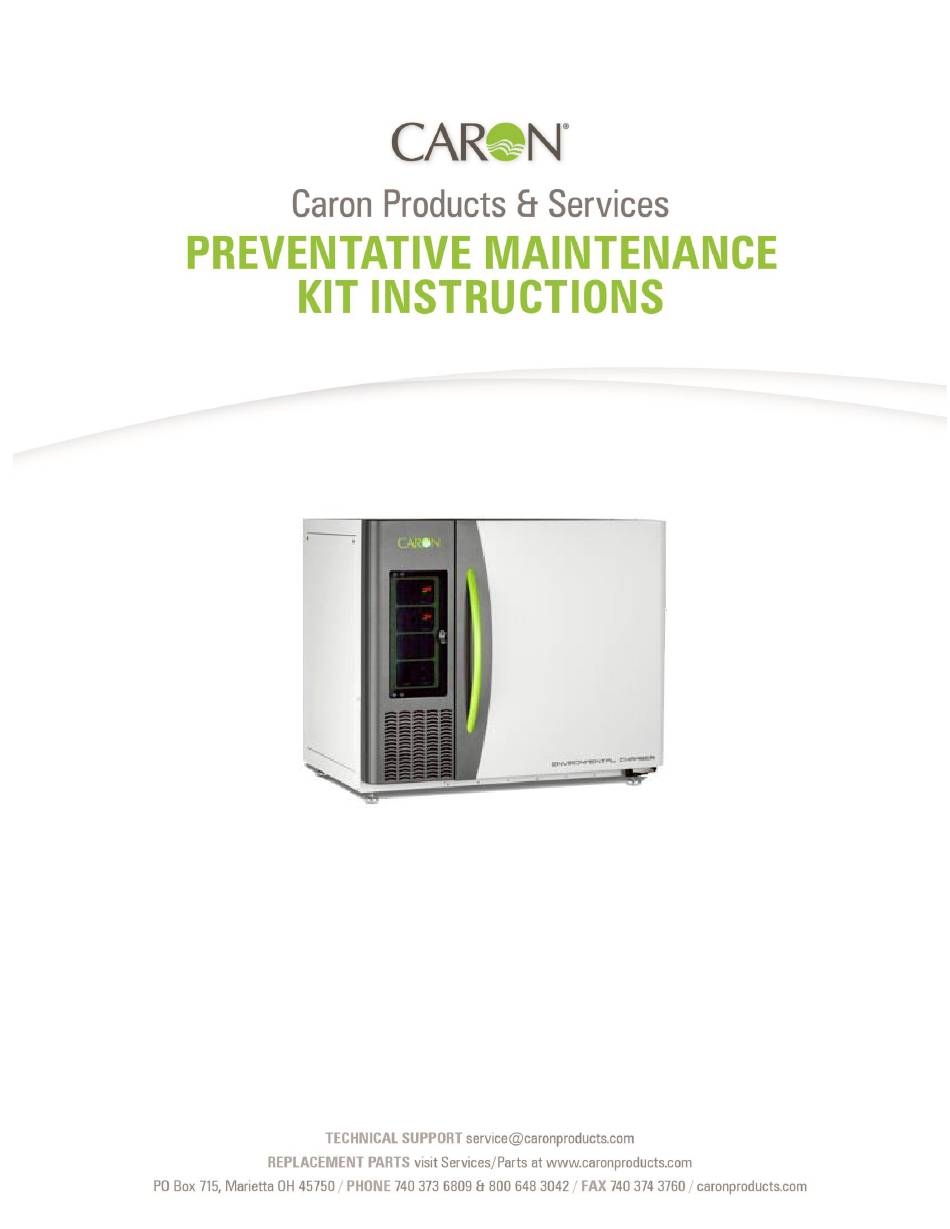

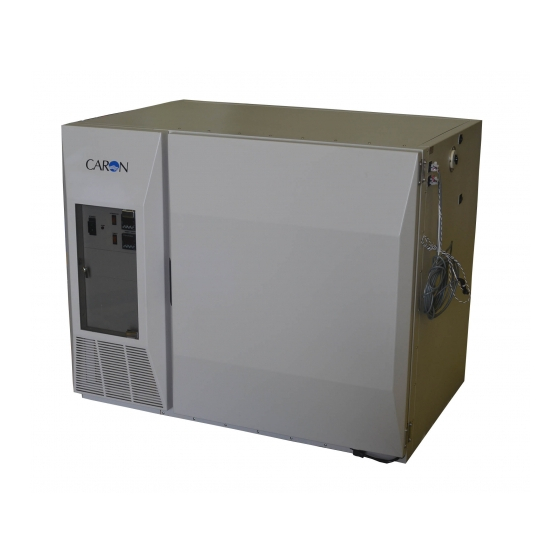

- Page 1 MODEL 6010 INST-PM-6010...
- Page 2 Revision Log Revisions Description Letter Date 05-30-2017 Initial release. New cover. 04-04-2018...
- Page 3 MODEL 6010 Parts Required: (1) Air Filter, (1) Atomizer Tools Required: Phillips Screwdriver, Ratchet with 5/8″ Socket and 6″ Extension Parts included in Preventative Maintenance Kit for Model 6010 are shown below. Air Filter Atomizer REPLACING AIR FILTER Note: Photos may have a different appearance depending on chamber options.
- Page 4 3. Remove left shelf channels. 4. Remove false floor by pulling upward on access ports as shown below. False Floor Access Ports 5. Release (2) latches on top left interior wall as shown below. Left Interior Wall Latches INST-PM-6010 Rev B 04/04/2018...
- Page 5 7. Tilt top of left interior wall down towards bottom of chamber, remove and set aside. 8. Release (2) latches on left side interior false wall and slide to center of chamber to support interior ceiling as shown below. Left Side Interior False Wall Latches Left Side Interior False Wall INST-PM-6010 Rev B 04/04/2018...
- Page 6 11. Reinstall left side interior false wall. Note: Align drain tube with cutout in left side interior wall as shown below. Left Side Interior False Wall Drain Tube 12. Secure (2) latches on left side interior false wall. INST-PM-6010 Rev B 04/04/2018...
- Page 7 15. Latch (2) latches on top left interior wall. 16. Reinstall false floor. 17. Reinstall shelf channels. 18. Reinstall shelves. 19. Continue to instructions for replacing additional accessory preventative maintenance items if applicable or plug in power cord and turn on chamber. INST-PM-6010 Rev B 04/04/2018...
