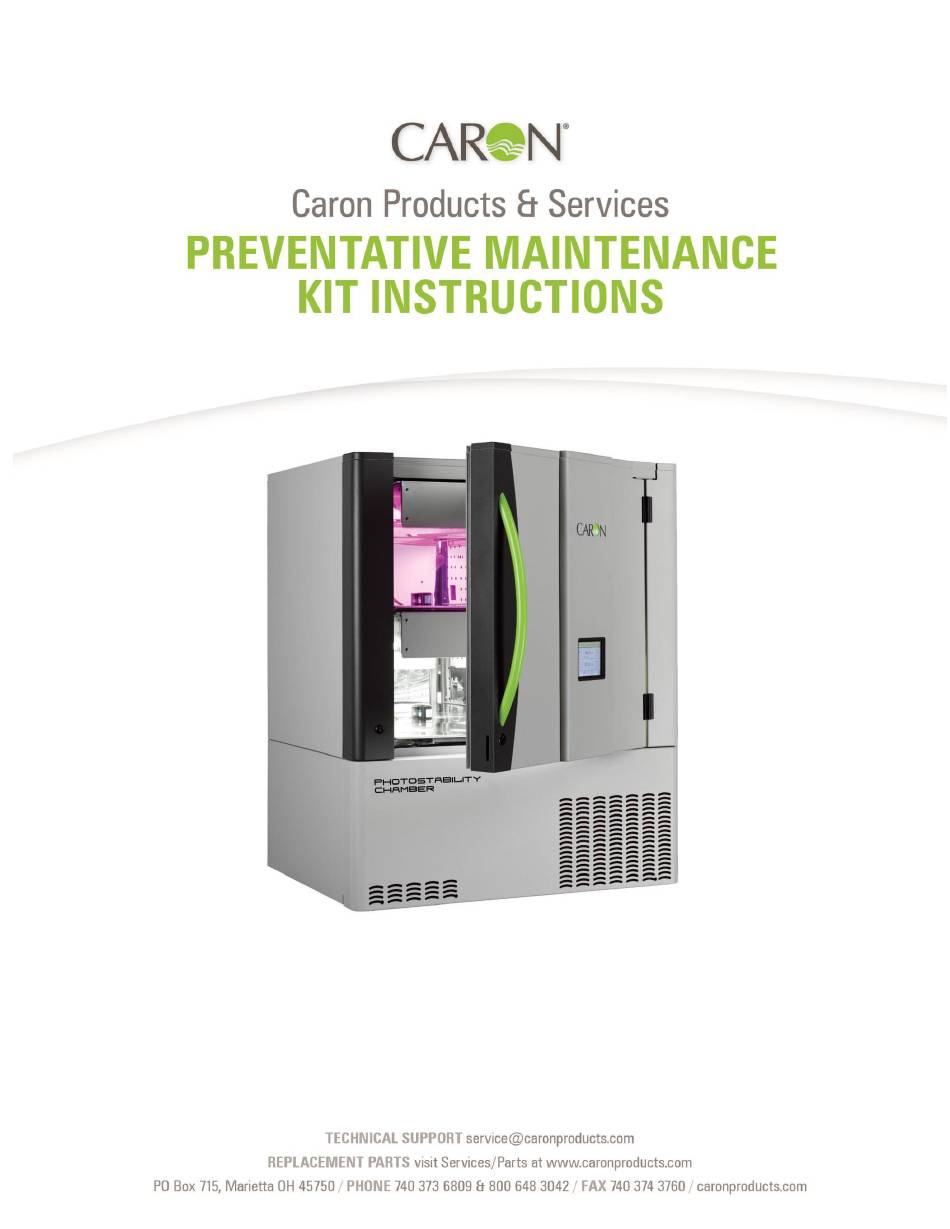

- Page 1 MODEL 6540-1 INST-PM-6540-1-UVA...
- Page 2 Revision Log Revisions Description Letter Date 12-06-2016 Initial release. New cover. 04-04-2018...
- Page 3 INSTRUCTIONS FOR REPLACING UVA LAMPS IN MODEL 6540-1 Parts Required: (6) Lamps Tools Required: None Parts included in Preventative Maintenance Kit for Model 6540-1 are shown below. Note: Lamps may be black or white depending on kit Revision Level. Lamps REPLACING LAMPS Note: Photos may have a different appearance depending on chamber options.
- Page 4 4. Remove and discard old lamp by rotating lamp ¼ turn and lifting out of lamp sockets. Repeat for each lamp to be replaced. 5. Insert new lamp ends into lamp sockets and rotate ¼ turn. Repeat for each lamp to be replaced. INST-PM-6540-1-UVA Rev B 04/04/2018...
- Page 5 Press Here to Seat Rear Connector Light Bank Shelf 7. Plug in power cord and turn on chamber. 8. Reset lamp life hours by pressing Setup Menu button on right side of MAIN SCREEN as shown below. Setup Menu Button INST-PM-6540-1-UVA Rev B 04/04/2018...
- Page 6 9. Press LAMP LIFE button as shown below. LAMP LIFE Button 10. Press RESET UVA LAMP HOURS button as shown below. RESET UVA LAMP HOURS Button 11. Press Check Mark button as shown below. Check Mark Button Button INST-PM-6540-1-UVA Rev B 04/04/2018...
- Page 7 12. Press Check Mark button to confirm selection as shown below. Check Mark Button Button 13. Press Check Mark button to return to MAIN SCREEN as shown below. Check Mark Button Button INST-PM-6540-1-UVA Rev B 04/04/2018...
