Hall Research Technologies KVM-HDU-4 User Manual

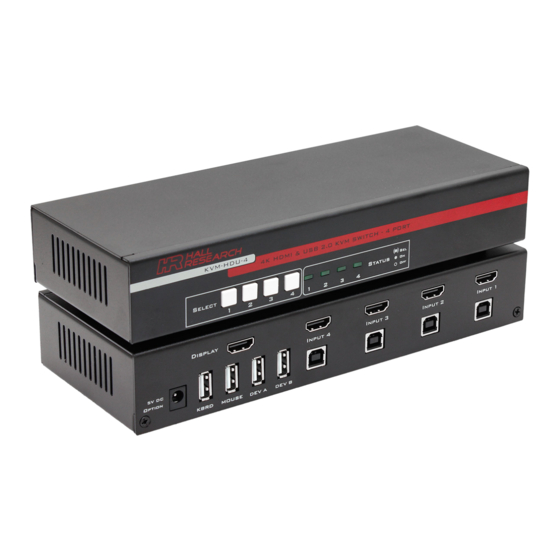

4-port hdmi kvm switch with usb 2.0 and 4k video support
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
USB 2.0 and 4K Video Support
CUSTOMER
SUPPORT
INFORMATION
KVM-HDU-4
4-Port HDMI KVM Switch
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
with
UMA1273 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KVM-HDU-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hall Research Technologies KVM-HDU-4

Summary of Contents for Hall Research Technologies KVM-HDU-4

  • Page 1 User’s Manual KVM-HDU-4 4-Port HDMI KVM Switch with USB 2.0 and 4K Video Support UMA1273 Rev D Order toll-free in the U.S. 800-959-6439 FREE technical support: 714-641-6607 or support@hallresearch.com CUSTOMER Hall Research, 1163 Warner Ave. Tustin, CA 92780 SUPPORT www.hallresearch.com...
  • Page 2 Table of Contents KVM-HDU-4 1.0 Introduction 2.0 Features 3.1 Hotkey Sequences 3.0 Setup and Operation 3.2 Smart EDID management 4.0 Troubleshooting 5.0 Specifications TRADEMARKS USED IN THIS MANUAL Hall Research and its logo are trademarks of Hall Research. Any other trademarks mentioned in this manual are acknowledged as the property of the trademark owners.
  • Page 3 4-Port KVM Switch with 4K HDMI & USB 2.0 The KVM-HDU-4 is a compact 4 port HDMI KVM Switch that features high 1.0 Introduction speed video switching with HDMI Sink emulation technology, integrated 2-port USB hub, and Keyboard & mouse emulation for each PC input.
  • Page 4 USB connections from the host PCs. If the KVM-HDU-4 is used for switching video only with no USB inputs, then a power supply needs to be connected. This separately sold power supply is part number 511-U5V2AP5.
  • Page 5 4-Port KVM Switch with 4K HDMI & USB 2.0 To select inputs press the following key sequence 3.1 Hotkey Sequences (1 represents the desired input channel in the example below) • To start SCAN MODE press the following key sequence •...
  • Page 6 KVM-HDU-4 5.0 Specifications Standard HDMI Video Number of inputs Bandwidth 600 MHz pixel clock or 18 Gbps video data rate Max Resolution 3840 x 2160 @ 60Hz Standard Version 2.0 Connectors 4x USB Type B Female for Hosts (PCs) 1x Keyboard Type A Female 1x Mouse Type A Female 2x USB 2.0 Peripherals from Built in Hub.
  • Page 8 © Copyright 2020. Hall Research, LLC. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...

Table of Contents
