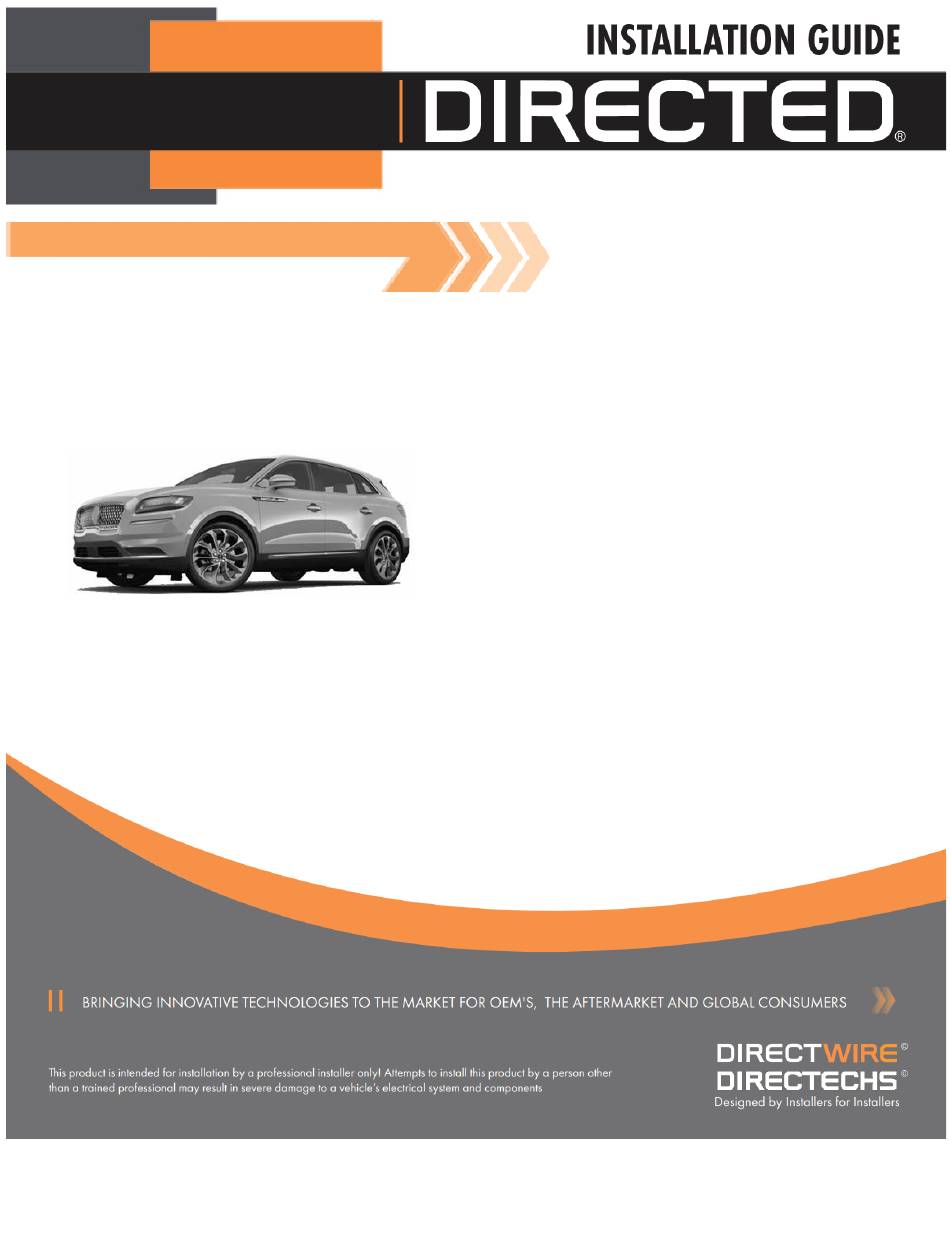

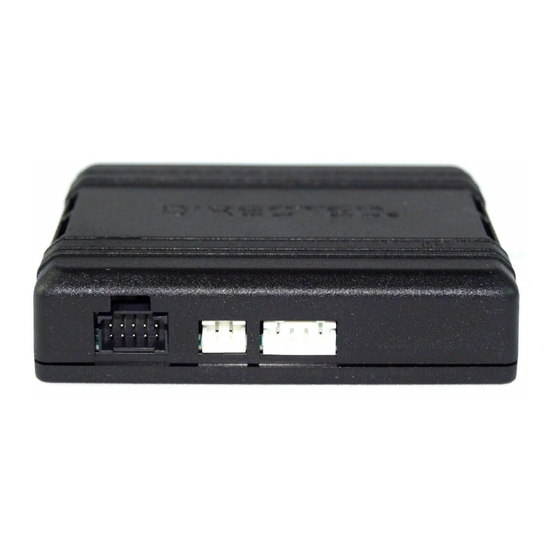

- Page 1 403.FORD18 v1.06 2021 Lincoln Nautilus (Smart Key)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Wiring diagram Vehicle connections Module programming Module programming for convenience only (skip transponder) SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting Parking light error codes Soft reset Hard reset Feature programming Feature and option list Limited one year consumer warranty... -
Page 3: Introduction
SmartStart (all sold separately). Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.FORD18 1.06 2021 Lincoln Nautilus (Smart Key) -
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Parking Lights Control Remote Start Ready Arm Factory Security Remote Start Takeover Disarm Factory Security... -
Page 5: Pre-Installation And Application Warnings
Hood pin: In vehicles not equipped with a factory hood pin, you must permanently ground the vehicles N.C. OEM Hood Pin input Š for successful operation. See Directechs for hood pin location. Remote Start Ready (RSR) installations are not compatible with vehicles equipped with a manual transmission. -
Page 6: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( (-) Ground: Black/Gray, pin 4 OBDII HS CAN Low: White, pin 38 Diagnostic Connector HS CAN High: White/Blue or Blue, pin 37 DIAG CAN High: White/Brown, pin 6 (+)12V: Gray/Red, pin 16 DIAG CAN Low: Gray/Yellow, pin 14... -
Page 7: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2021 Lincoln Nautilus (Smart Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1... - Page 8 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H2/12 Blue/Red No Connection No Connection Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green No Connection No Connection H3/2 Blue No Connection No Connection...
-
Page 9: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Convenience-Only programming, see next section. Ensure vehicle is in a safe location and cannot move forward during programming. The harnesses must be connected in this exact order: ... -
Page 10: Module Programming For Convenience Only (Skip Transponder)
Module programming for convenience features only (skip transponder) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. The harnesses must be connected in this exact order: 1. -
Page 11: Smartstart/Xl202 Installation Notes
SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202. -
Page 12: Connecting The Module
DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2. -
Page 13: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power. - Page 14 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
-
Page 15: Parking Light Error Codes
Parking light error codes The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below. Flashes Diagnostic Runtime expired. Over-rev shutdown. Low or no RPM. Shutdown without remote. Brake shutdown. -
Page 16: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g. -
Page 17: Feature And Option List
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page. -
Page 18: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor. -
Page 19: Quick Reference Guide (Customer Copy)
Quick Reference Guide (customer copy) Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there The vehicle pit stop/idle mode feature is not available in this firmware. are 3 possible ways you can send commands to your vehicle, using the: Factory remote. - Page 20 List of available commands (DCS) network linking car, app, end user, and the Internet. Note that the information below is for many Viper ® , Clifford ® , Python ® , Avital ® , Automate ® For more information, visit www.mysmartstart.com. Autostart ®...
