Assembly instructions for Legend 2 with Onetool Block

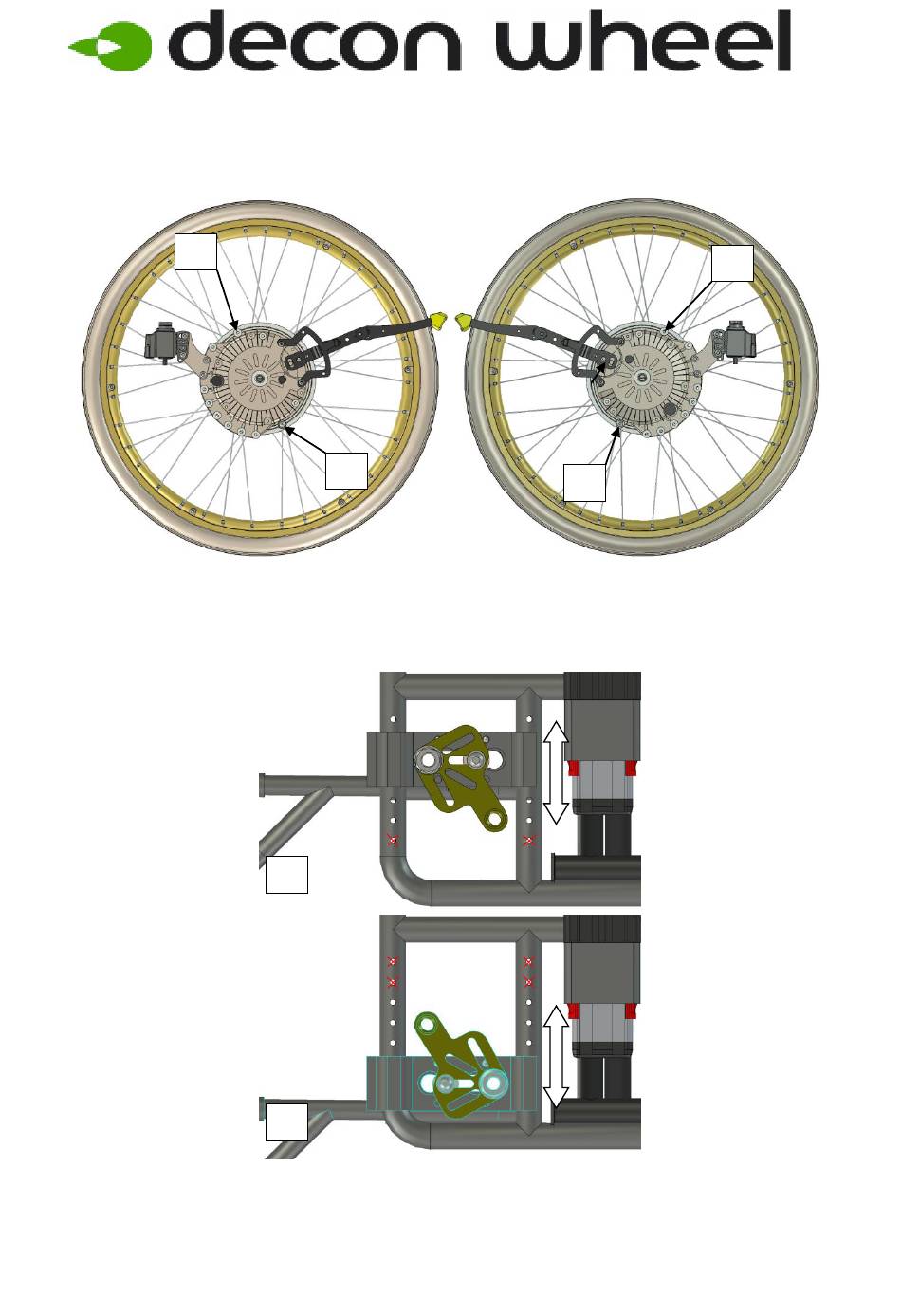

1. Remove wheels on both sides.
B
2. Check the correct placement for the stop pin, remove battery and anti tip devices from
the E-drive.
3. Anti tip devices from the chair are in use, see pictures below.
4. Placement for the adapter plate.
2022-09-26
MED3152
A
A
B
B
A
1(6)
