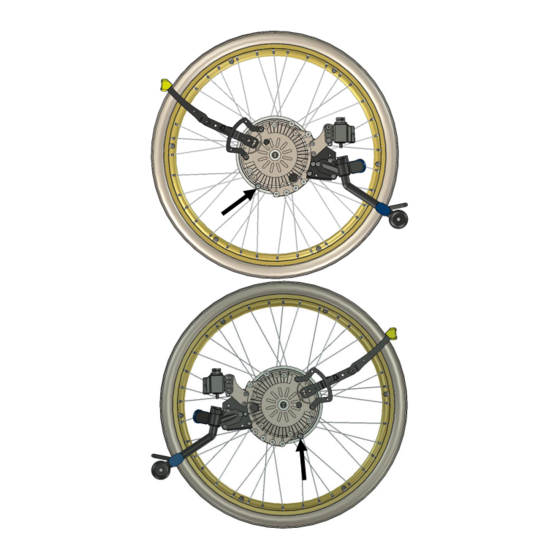

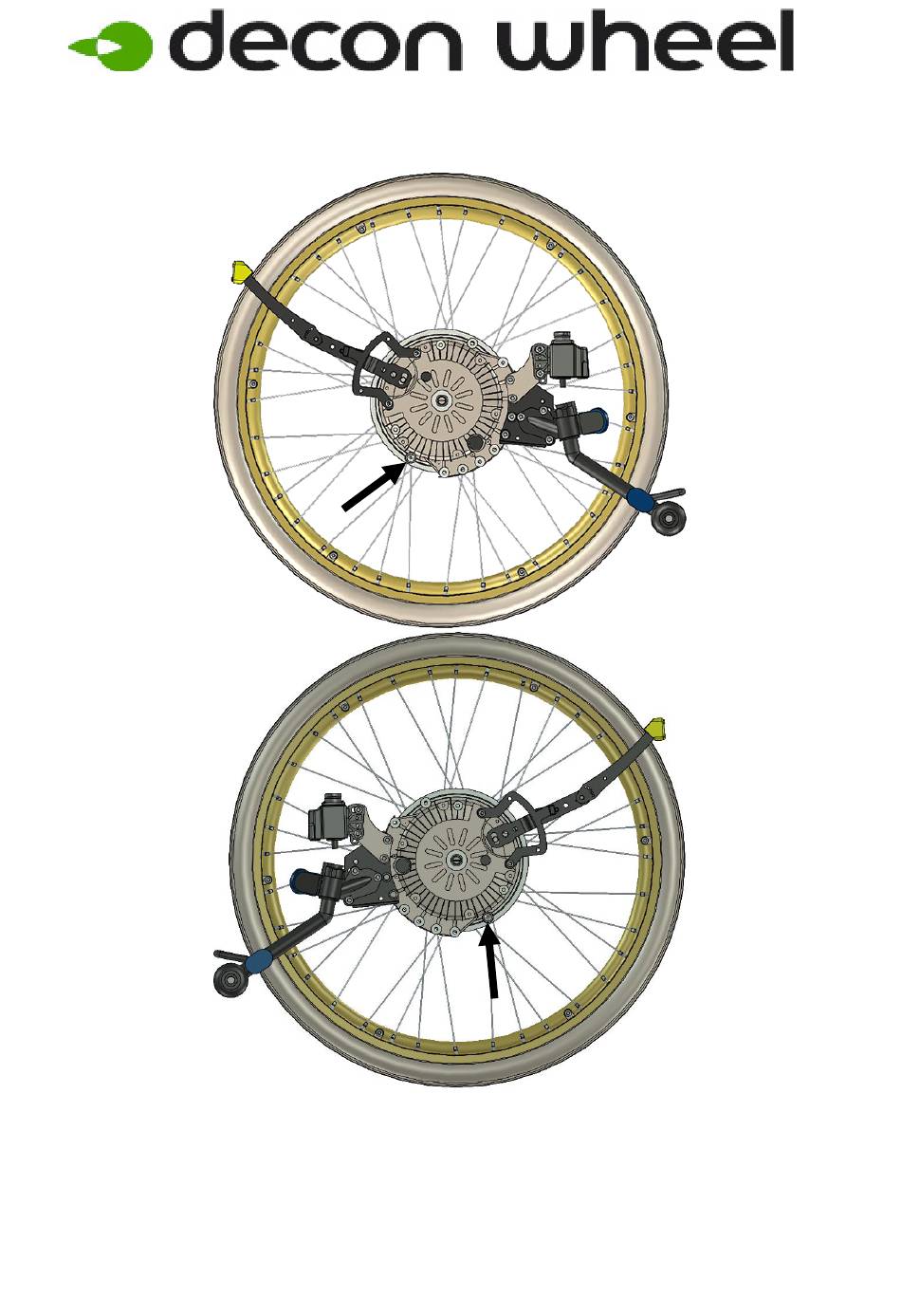

- Page 1 Assembly instructions for Levo LCEV MED3125 1. Remove wheels and hub sleever on both sides. 2. Check the correct placement for the stop pin. Use the anti-tip devices on the eDrive. 2020-04-23...
- Page 2 Assemble the plate (right side) according to picture. Parts pair mounting set: Item No. Part Number Description 300065 Clamp Levo XSM8ML Nut Self-Locking M8 XSM8X35 Screw Round M8 x 35 MED1390 Bracket Levo 3. Assemble the back placed battery bag under and forward on the wheelchair. 2020-04-23...
- Page 3 Joystick assembly Item No. Part Number Description MED1376 Assy Joystick Bracket Levo MED1363 Clamp 25 mm XSM8X45 Screw : Round - M8 x 45 XSM8ML Nut : Self-Locking - M8 XOC-48160-B0 Upper holder assembly 2 MED1362 Clamp 30 mm 2020-04-23...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
