Assembly instructions for Berollka Tourer
MED3189

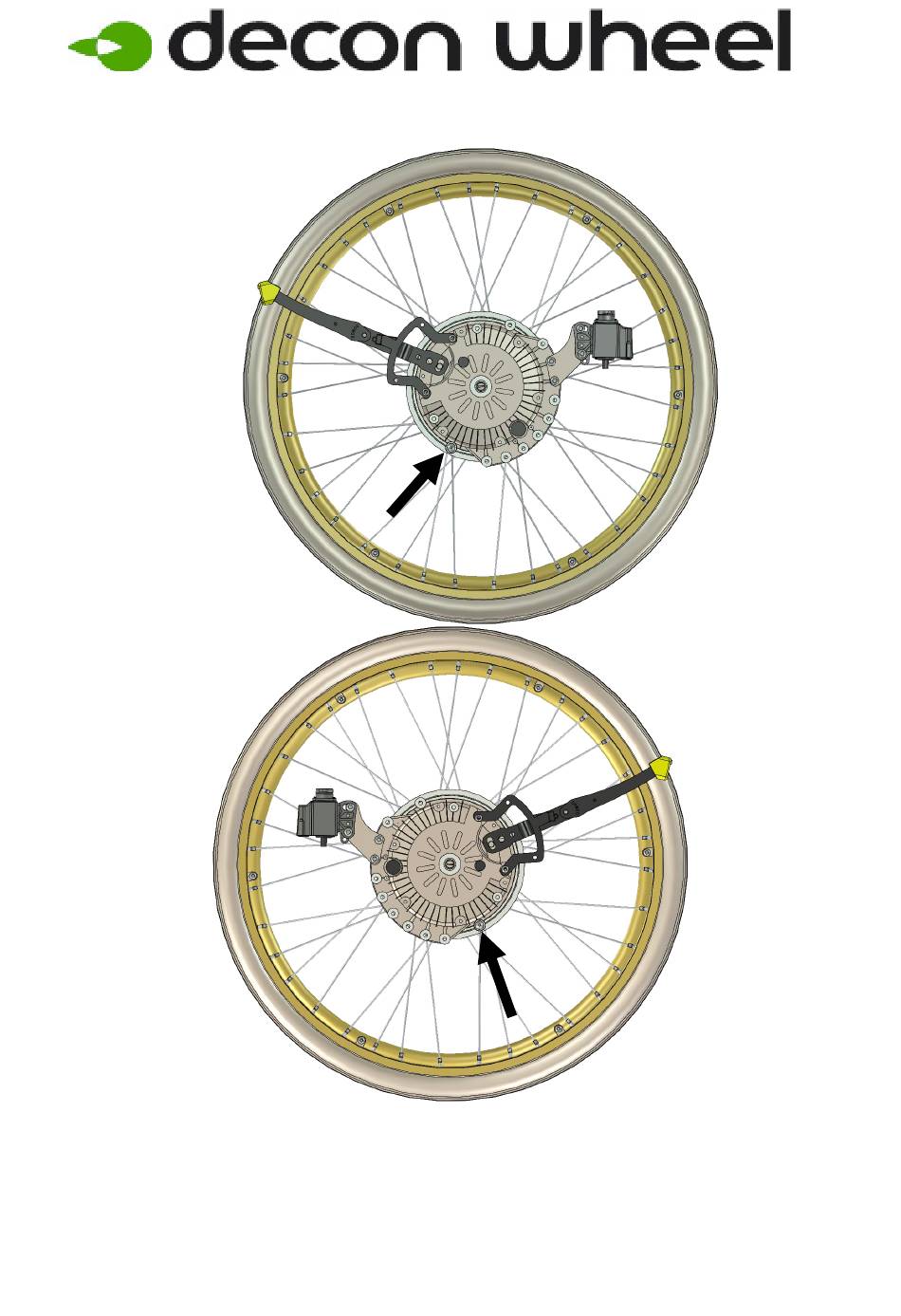

1. Remove wheels and hub sleeves on both sides.
2. Check the correct placement for the stop pin on the E-drive unit, and that the
anti-tip devices are removed. Use the wheelchairs original anti-tip devices.
2019-05-27
Advertisement
Related Manuals for Decon wheel MED3189
Summary of Contents for Decon wheel MED3189
- Page 1 Assembly instructions for Berollka Tourer MED3189 1. Remove wheels and hub sleeves on both sides. 2. Check the correct placement for the stop pin on the E-drive unit, and that the anti-tip devices are removed. Use the wheelchairs original anti-tip devices.
- Page 2 3. Assembly the plate (right side) according to picture and see the placement for the adapter plate. 4. Parts pair mounting set: Item No. Part Number Description 405239 Nordlock Washer M16 XSM16M Nut M16X1 Low 100 400 016 Spacer 100 400 007 Spacer 100 400 003 Spacer...
- Page 3 6. Remove and place the handle to the left side instead. Assembly of assist control Item No. Part Number Description XSM6X20 Screw Round M6 x 20 XSM6BRTG Thorn Washer M6 Xklamma2 Clamp 2019-05-27...
