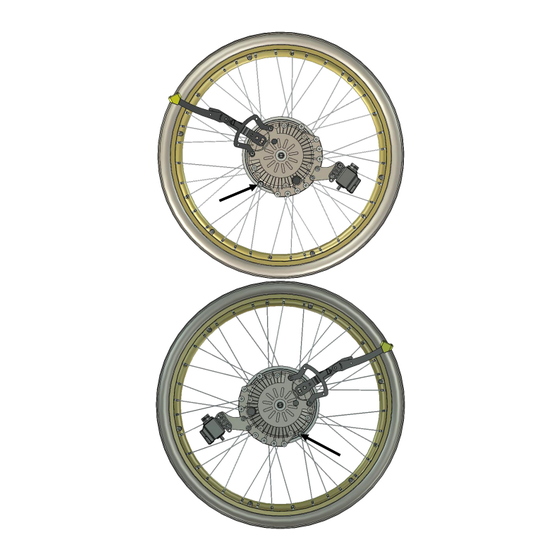

- Page 1 Assembly instructions for Champion 2008- MED3117 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin, and that the anti-tip devices and Battery box are removed. 2021-03-15...
- Page 2 3. Assembly the plate (right side) according to picture. 4. Parts pair mounting set: Item No. Part Number Description 100 400 003 Spacer 100 400 005 Spacer XSM8X35 Screw Round M8 x 35 XSM8ML Nut Self-Locking M8 HW069 Sleeve M16x1/12,7 100 400 004 Spacer XSM16M...
- Page 3 Assembly of joystick on right side MED1663 Item No. Part Number Description MED1550 Bracket XSM6X16 Screw - Round - M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 XOC-48160-B0 Upper holder assembly 2 X0F-48160-D00 Slide Away Bracket NJF1022 Ball pin with pin 2021-03-15...
- Page 4 MED1210 Assembly instructions for Attendant control Item No. Part Number Description XSM6BRTG Thorn Washer M6 XSM6X20 Screw Round M6 x 20 8500-1042-01 Clamp dia. 20mm 2021-03-15...
- Page 5 Montering av joystick som vårdarstyrning (båda sidor) MED1436 This places on the other side when the joystick shall be mounted on the left side. Item No. Part Number Description MED1317 Bracket XSM6X35 Screw Round M6 x 35 XSM6X16 Screw Round M6 x 16 XSM6BR Plain Washer M6 XSM6ML...
- Page 6 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
