- Page 1 Assembly instructions for Dietz AS(01) MED3176 1. Remove wheels and brakes on both sides. 2. Placement for the stop screw and for the handle. 2020-04-21...

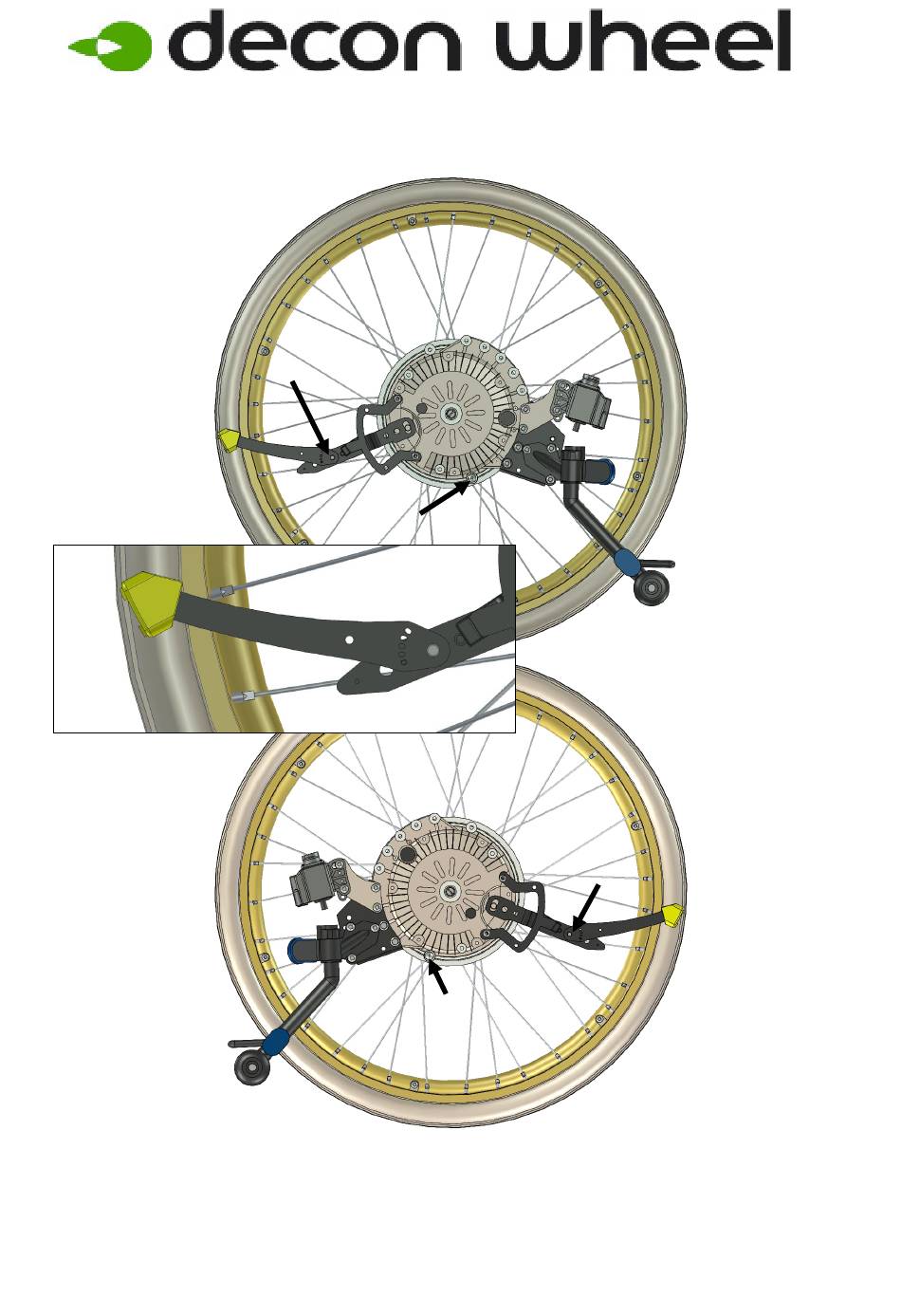

- Page 2 3. Assembly the plate (right side) according to picture. Parts pair mountingset: Item No. Part Number Description HW084 Sleeve M18X1 100 400 015 Spacer 100 400 014 Spacer 100 400 008 Spacer 405241 Nordlock M18 Washer XSM18M Nut M18 x1 100 400 012 Spacer XSM8ML...
- Page 3 Assemble the Joystick ITEM PART NUMBER DESCRIPTION XOC-48160-B0 SwingAway Bracket MED1500 Bracket XSM6X16 Screw Round M6 x16 XSM6BR Plain Washer M6 XSM6ML Lock Nut M6 MED1320 Bracket NJF1022 Ball pin with pin X0F-48160-D00 Sliding bracket assembly 2020-04-21...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
