Summary of Contents for Decon wheel MED3115

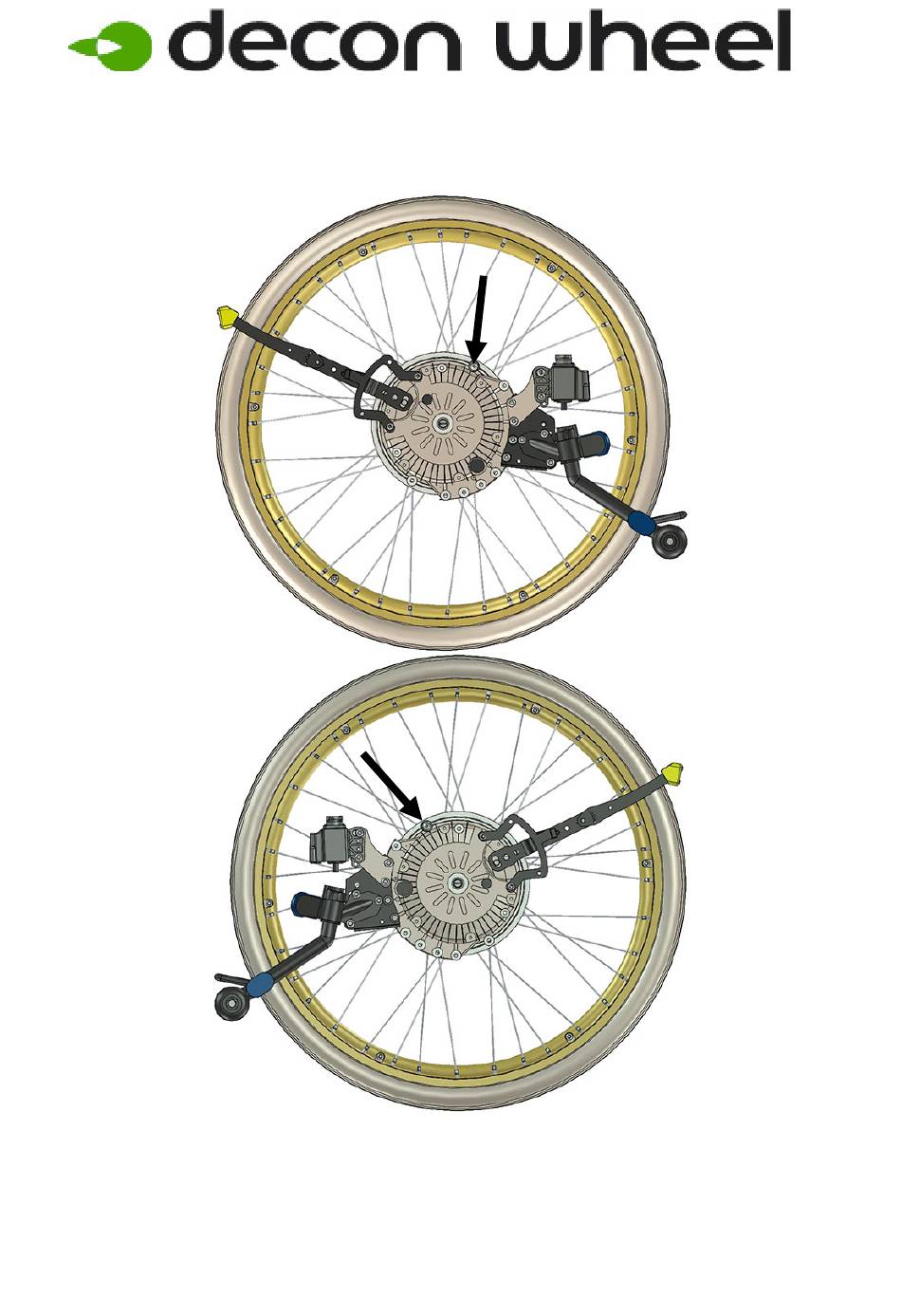

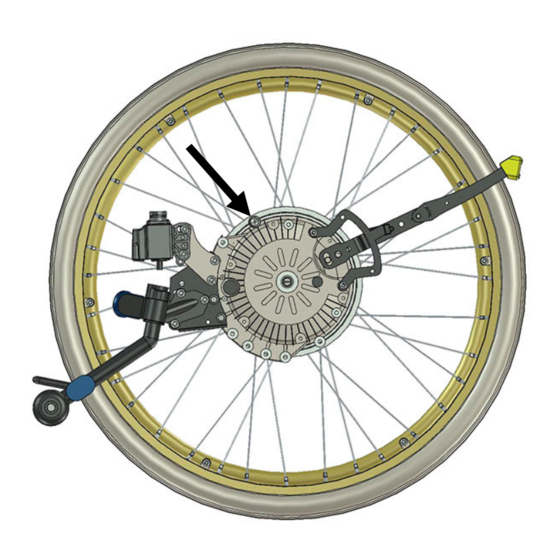

- Page 1 Assembly instructions for Life, - R, -SA, -T, -RT MED3115 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin. 2022-02-01...
- Page 2 3. Assembly the plate (right side) according to pictures. Parts pair mountingset: Item No. Part Number Description 100 400 006 Spacer 100 400 013 Spacer MED2000 Bracket 100 400 017 Spacer 405239 Nordlock Washer M16 HW069 Hub sleeve M16x1/12,7 XSM16M Nut M16X1 Low 100 400 007 Spacer...
- Page 3 MED1404 4. Assemble the joystick as the pictures above. Item No. Part Number Description XOC-48160-B0 Upper holder assembly 2 MED1500 Bracket XSM6X16 Screw - Round - M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 Screw Original Not Included Screw Original Not Included 5.
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
