Assembly instructions for Otto Bock Motus
MED3116
1. Remove wheels, brakes and brake handles.

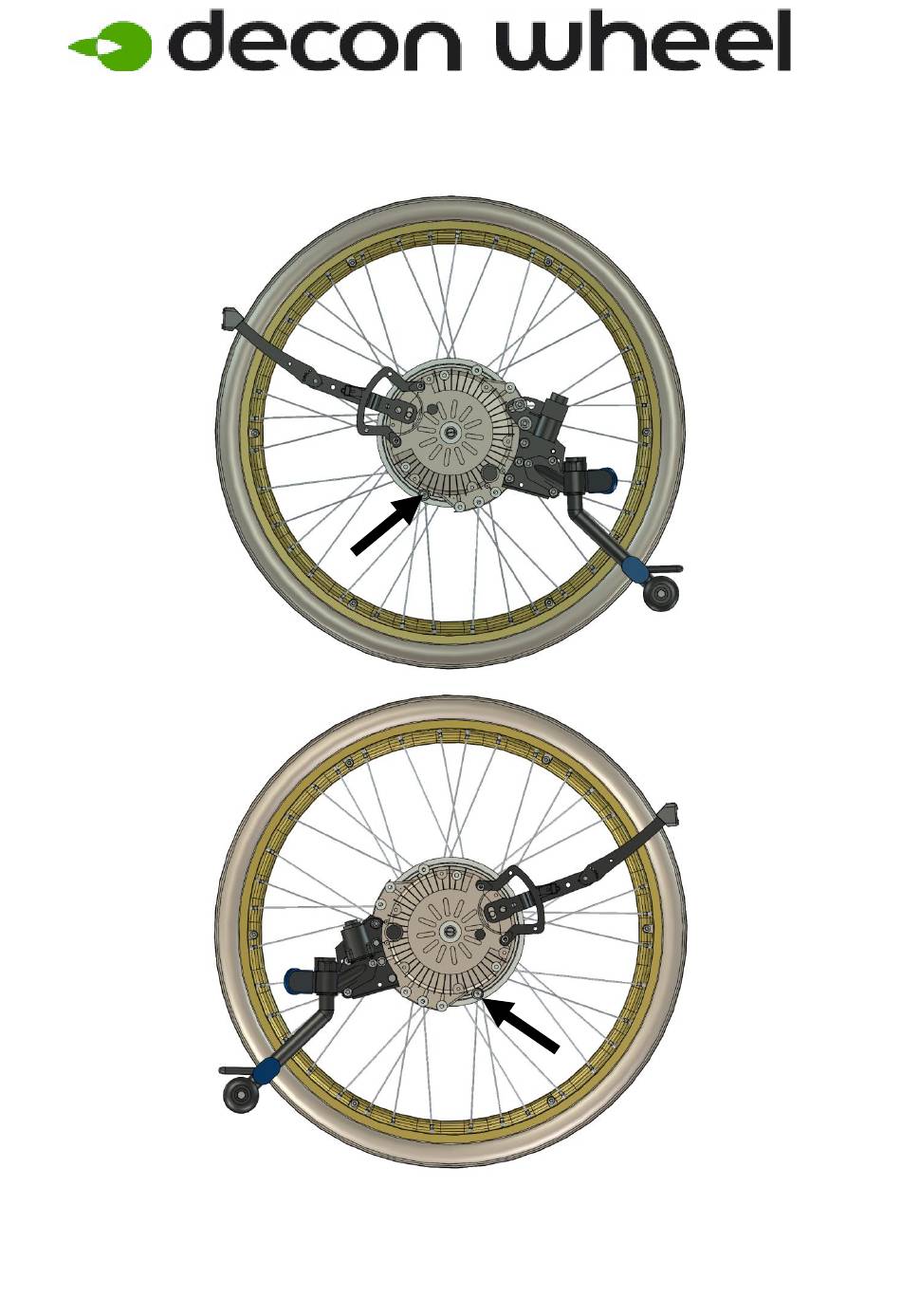

2. Check the correct placement for the stop pin and that the battery box is
removed from the E-drive unit.
2015-11-09

Advertisement

loading
Need help?

Need help?

Do you have a question about the MED3116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Decon wheel MED3116

Summary of Contents for Decon wheel MED3116

  • Page 1 Assembly instructions for Otto Bock Motus MED3116 1. Remove wheels, brakes and brake handles. 2. Check the correct placement for the stop pin and that the battery box is removed from the E-drive unit. 2015-11-09...
  • Page 2 3. Assemble the plate (right side) according to picture. 4. Parts pair mounting set: Item No. Part Number Description XSM8X40 Screw : Round - M8 x 40 XSM8ML Nut : Self-Locking - M8 100 400 007 Spacer 290002 Spacer 100 400 017 Spacer HW069 Hubsleever M16x1/12,7...
  • Page 3 Assembly of the joystick 6. Assembly the joystick according to the picture above. The parts you need for assemble the joystick Item No. Part Number Description XOC-46295-00 Sheet Metal Bracket XSM6X16 Screw - Round - M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1367...
