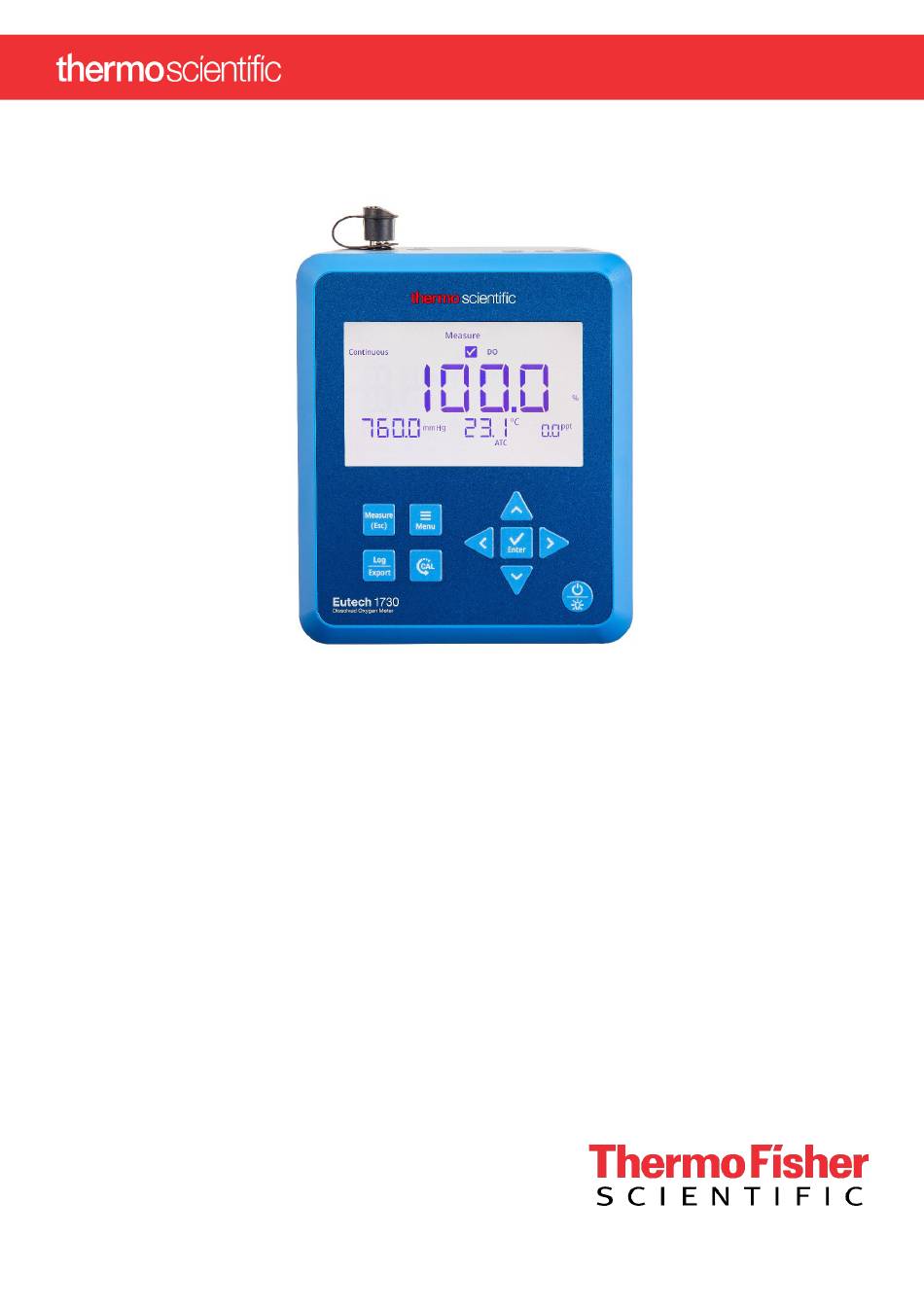

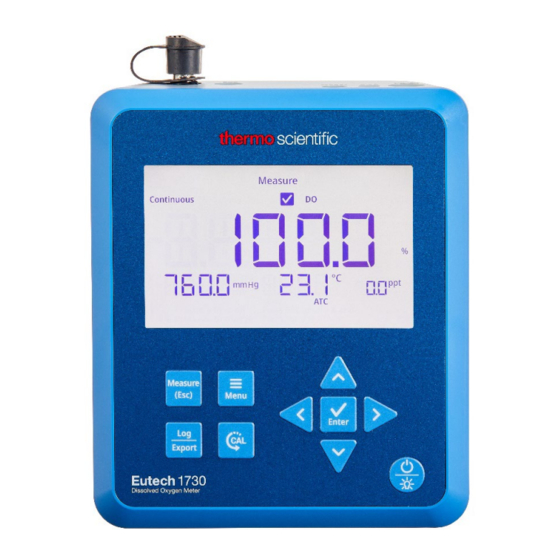

- Page 1 Operations Manual Electrochemistry Meters Eutech DO 1730 Dissolved Oxygen Meter User Manual 68X002228 | Revision 01 | August 2022...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 ..............6 Introduction ............ 6 1.1 Intended Use ........6 1.1.1 Intended Use ..........6 1.1.2 Non-Intended Use ........6 1.1.3 Safety ............6 1.1.4 Power Connection ........6 1.2 Cleaning Instructions (Meter Only) ..6 Chapter 2 .............. - Page 4 3.2.4a Temperature Calibration ....... 16 3.2.4b Manual Temperature Input ....16 3.2.5 Measure Mode ........17 3.2.6 DO Resolution ......... 17 3.2.7 Barometric Pressure Units ....... 18 3.2.8 Barometric Pressure Value ....... 18 3.2.9 Salinity Value ..........19 3.2.10 Read Type ..........19 3.2.11 Timed Interval ........
- Page 5 5.4.2 Remote Commands ......... 31 5.5 Software Update Procedure ....32 Chapter 6 .............. 33 Troubleshooting ..........33 6.1 Meter Troubleshooting ......33 6.2 Measurement Troubleshooting ... 33 6.3 Technical Support ......33 Chapter 7 .............. 34 Meter Info ............. 34 7.1 Meter Specifications ......
-
Page 6: Chapter 1
Before using it, verify that this product is suitable for its The Eutech DO 1730 dissolved oxygen meters are capable intended use. If the product is used in a of measuring dissolved oxygen as % saturation or... -
Page 7: Chapter 2
Replace the screw from step 3 to attach the base plate to the meter. Turn the meter over, with meter display facing up. Insert the stand with electrode holder into the metal post on the base plate. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 8: Universal Power Supply Assembly
2.2 Universal Power Align the two tabs on the power adapter connector Supply Assembly with the two slots on the meter power input. A universal power adapter (Catalog Number EB1700PWR) with US/Japan, Euro, UK/Singapore, Australia/New Zealand and China wall plug plates is included with the meter. -
Page 9: Keypad Functions
Press to power on the meter. When the meter is on, press to turn the backlight off or on. When the meter is on, press and hold for three seconds to power off the meter. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 10: Display Overview
2.4 Display Overview Icon Description Calibration Icon: Indicates meter is in the calibration mode; also shown with the Setup Menu Icon and Memory Icon when viewing the calibration log. Setup Menu Icon: Indicates meter is in the Setup Menu mode. Measure Icon: Indicates meter is in the Measure mode. -
Page 11: Meter Connections
2.6 Electrode Information Screw the membrane cap onto the electrode until the cap is hand-tight. The Eutech DO 1730 dissolved oxygen meter is Allow at least 1 hour for the electrode to equilibrate compatible with galvanic dissolved oxygen electrodes with before usage. -
Page 12: Chapter 3
Chapter 3 Setup Menu Item Description View up to 500 data log points View Logs and active dissolved oxygen and temperature calibrations Setup Menu Set the export type as computer Log Export Type or printer or turn export off Send all saved data logs and Export All Logs calibration logs to the selected export device... -
Page 13: Setup Menu Items
If desired, press the “Log/Export” key to export the individual data log point being viewed. Press the “Menu” key to return to the main Setup Menu list. Press the “Enter” key to view the display log. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 14: Viewing The Calibration Log
3.2.1b Viewing the Calibration Log Press the “Enter” key to view the display log. Press key For the calibration log, press the or key to change the view from the date/time screen to the calibration data screen. If desired, press the “Log/Export”... -
Page 15: Log Export Type
Note: If a large amount of data is exported, the meter may take a few minutes to complete exporting all saved data logs and calibration logs to the selected device. Press the “Enter” key to save the change. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 16: Temperature Calibration Or Manual Temperature Input
3.2.4 Temperature Calibration or 3.2.4b Manual Temperature Input Manual Temperature Input When DO electrode without built-in ATC sensor is connected, use the Manual Temperature Input menu to 3.2.4a Temperature Calibration enter the sample temperature value, from -5.0 °C to 105.0 °C. When DO electrode with built-in ATC sensor is connected, Press the ... -
Page 17: Measure Mode
Press the or key to set the measure mode. Press the or key to set the DO resolution. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 18: Barometric Pressure Units
3.2.7 Barometric Pressure Units 3.2.8 Barometric Pressure Value Set the barometric pressure units as mmHg (mm mercury) Enter the barometric pressure value as 400.0 to 850.0 or bar. mmHg or 0.533 to 1.133 bar. The entered barometric pressure value is used for barometric pressure corrected Press the ... -
Page 19: Salinity Value
Press the “Enter” key to save the change. Menu list until the Read Type item is shown. Press the or key to set the read type. Press the “Enter” key to save the change. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 20: Timed Interval
3.2.11 Timed Interval 3.2.12 Calibration Due Alarm When Timed is set as the Read Type, set the time interval Set the calibration due alarm interval from 0 hours (off) to from 5 seconds to 60 minutes. This time interval is used to 168 hours. -
Page 21: Set Date Format
The year value will flash. Press the or key to adjust the year. a. Press the key to increase by one year. Press and hold the key to quickly increase. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 22: Set Time Value
b. Press the key to decrease by one year. 3.2.15 Set Time Value Press and hold the key to quickly decrease. Set the time in AM/PM format. Press the “Enter” key to save the change. Press the or key to scroll through the Setup Menu list until the Set Time Value item is shown. -
Page 23: Audio Mode
Press the or key to set the audio mode. Press the or key to set the sleep mode. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 24: Clear Data
3.2.18 Clear Data 3.2.19 Factory Reset Erase all data logs or erase all calibration logs Erase all data logs, calibration logs and settings and return the meter to its factory default state. Press the or key to scroll through the Setup Menu list until the Clear Data item is shown. -
Page 25: Chapter 4
Calibration Error Calibration Error 4.1.1 DO Calibration Overview 4.1.2 DO Cal. Procedure for 100% The Eutech DO 1730 dissolved oxygen meter measures Saturation dissolved oxygen as percent saturation, dissolved oxygen as concentration in mg/L and dissolved oxygen as Calibration of a DO electrode can be done quickly and concentration in ppm. -
Page 26: Do Cal. Procedure For 0% Saturation
4.1.3 DO Cal. Procedure for 0% 4.1.4 DO Cal. Procedure for Saturation Concentration When measuring a low concentration sample (less than For a dissolved oxygen as concentration calibration, a 10% saturation), a second percent saturation calibration minimum value of 2.0 mg/L (ppm) must be entered and the point for a zero oxygen standard is often recommended. -
Page 27: Do Calibration Example
Once the reading is stable, press the “Enter” key. The meter will save the calibration. The calculated slope value is shown and then the Calibration Done screen is shown. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 28: Temperature Calibration
4.2 Temperature Calibration The thermistor sensor used for automatic temperature compensation and measurement is both accurate and stable, so frequent calibration is not required. When an ATC probe is connected to the meter, use the Temperature Calibration item within the Setup Menu to perform a one-point offset calibration, up to ±5.0 °C. -
Page 29: Chapter 5
Chapter 5 5.2 DO Measurements The Eutech DO 1730 dissolved oxygen meter measures Measurements dissolved oxygen as percent saturation, dissolved oxygen as concentration in mg/L and dissolved oxygen as concentration in ppm. In the main measure mode, press and hold (long press) the 5.1 Read Types... -
Page 30: Data Viewing
5.3 Data Viewing 5.4 Data Exporting Store up to 500 data points in the meter memory. Use the Export data from the meter to a computer or printer. Use View Logs item in the meter Setup Menu to view the data Log Export Type item in the meter Setup Menu to set log points, active dissolved oxygen as percent saturation... -
Page 31: Remote Commands
MODE = PERC or MGL or PPM Prints all logged measurement data Output format is based GETLOG on the Log Export Type <CR> setting If no data is logged, returns “>” to receive next command Eutech DO 1730 Dissolved Oxygen Meter... -
Page 32: Software Update Procedure
5.5 Software Update a. Select “Serial” as the connection method. b. Enter the COM port location of the USB Procedure computer cable (viewable in Device Manager under Ports). A computer with Microsoft Windows 10, 64bit (x64 based c. Enter the meter baud rate as 9600. processor) operating system is required to perform the software update procedure. -
Page 33: Chapter 6
(65) 6778 6876. in the sample solution, with the electrode membrane and temperature sensor submerged below the top of the sample solution Verify cables do not have any damage Perform a factor reset on the meter Eutech DO 1730 Dissolved Oxygen Meter... -
Page 34: Chapter 7
Chapter 7 Timed interval 5 seconds to 60 minutes Data log 500 data sets with time and date Active DO as % saturation, DO as Meter Info Calibration log concentration, temperature with time and date Calibration alarm Yes, 1 to 168 hours or off Sleep mode Yes, optional 7.1 Meter Specifications... -
Page 35: Meter Dimensions
A restocking charge will be made on all unauthorized returns. Note: The manufacturer reserves the right to make improvements in design, construction, and appearance of products without notice. Eutech DO 1730 Dissolved Oxygen Meter... -
Page 36: Chapter 8
Chapter 8 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference Regulatory when the equipment is operated in a commercial environment. -
Page 37: Weee Compliance
Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito http://www.thermofisher.com/ WEEE Compliance. -
Page 38: Chapter 9
Eutech DO 1730 dissolved oxygen bench meter with electrode stand, PC cable, universal power EBDX173000 adapter Eutech DO 1730 dissolved oxygen bench meter kit, includes meter with electrode stand, PC cable, universal power adapter, DO6HANDY galvanic DO/ATC probe with two membrane caps, electrolyte EBDX173001... - Page 39 Notes _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ Eutech DO 1730 Dissolved Oxygen Meter...
- Page 40 Thermo Scientific Eutech DO 1730 Dissolved Oxygen Meter Thermo Scientific Eutech electrochemistry meters, electrodes and solutions provide economical, reliable laboratory testing for pH, conductivity and dissolved oxygen analysis. We offer budget-friendly, simplified and easy-to-use instruments for routine testing of a wide variety of samples.
