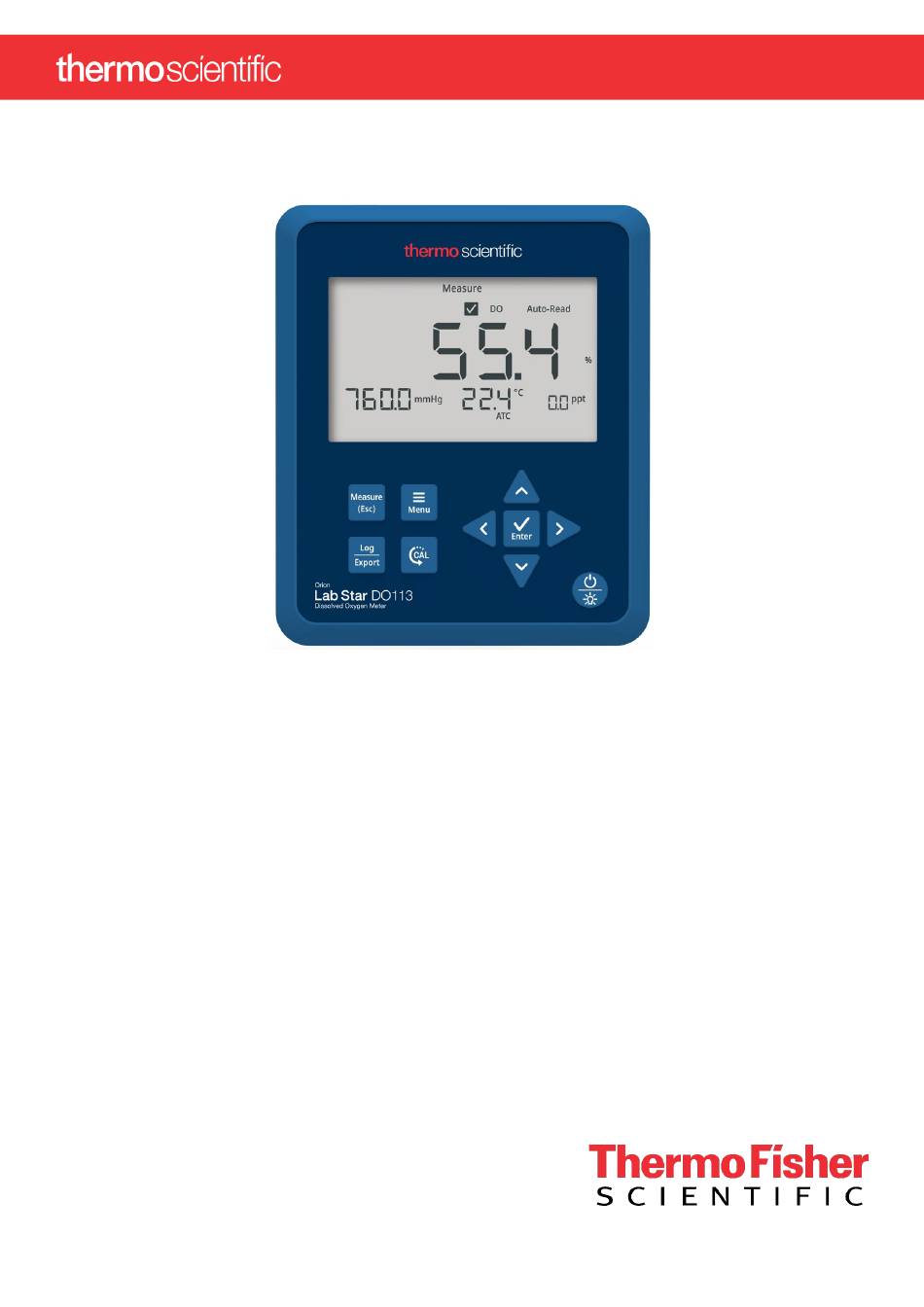

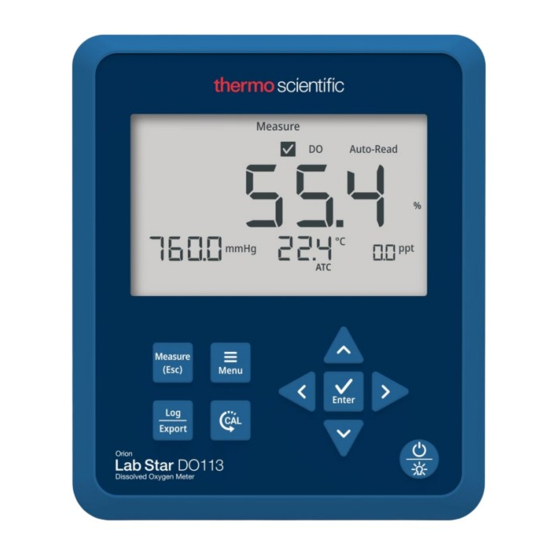

- Page 1 Operations Manual Electrochemistry Meters Orion Lab Star DO113 Dissolved Oxygen Meter User Manual 68X002224 | Revision 01 | June 2022...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 ..............6 Introduction ............ 6 1.1 Intended Use ........6 1.1.1 Intended Use ..........6 1.1.2 Non-Intended Use ........6 1.1.3 Safety ............6 1.1.4 Power Connection ........6 1.2 Cleaning Instructions (Meter Only) ..6 Chapter 2 .............. - Page 4 3.2.4a Temperature Calibration ....... 16 3.2.4b Manual Temperature Input ....16 3.2.5 Measure Mode ........17 3.2.6 DO Resolution ......... 17 3.2.7 Barometric Pressure Units ....... 18 3.2.8 Barometric Pressure Value ....... 18 3.2.9 Salinity Value ..........19 3.2.10 Read Type ..........19 3.2.11 Timed Interval ........
- Page 5 5.4.1 USB Computer Cable Interfacing ..... 31 5.4.2 Remote Commands ......... 32 5.5 Software Update Procedure ....33 Chapter 6 .............. 34 Troubleshooting ..........34 6.1 Meter Troubleshooting ......34 6.2 Measurement Troubleshooting ... 34 6.3 Technical Support ......34 Chapter 7 ..............
-
Page 6: Chapter 1
Before using it, verify that this product is suitable for its The Orion Lab Star DO113 dissolved oxygen meters are intended use. If the product is used in a capable of measuring dissolved oxygen as % saturation or... -
Page 7: Chapter 2
Replace the screw from step 3 to attach the base plate to the meter. Turn the meter over, with meter display facing up. Insert the stand with electrode holder into the metal post on the base plate. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 8: Universal Power Supply Assembly
2.2 Universal Power Align the two tabs on the power adapter connector Supply Assembly with the two slots on the meter power input. A universal power adapter (Catalog Number LSTAR-PWR) with US/Japan, Euro, UK/Singapore, Australia/New Zealand and China wall plug plates is included with the meter. -
Page 9: Keypad Functions
Press to power on the meter. When the meter is on, press to turn the backlight off or on. When the meter is on, press and hold for three seconds to power off the meter. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 10: Display Overview
2.4 Display Overview Icon Description Calibration Icon: Indicates meter is in the calibration mode; also shown with the Setup Menu Icon and Memory Icon when viewing the calibration log. Setup Menu Icon: Indicates meter is in the Setup Menu mode. Measure Icon: Indicates meter is in the Measure mode. -
Page 11: Meter Connections
2.6 Electrode Information The meter info screen shows the meter model number and current software revision. The Orion Lab Star DO113 dissolved oxygen meter is After the meter info screen, the meter performs a series of compatible with polarographic dissolved oxygen electrodes internal self-tests to verify that the meter is operating with a MiniDIN connector. -
Page 12: Chapter 3
Chapter 3 Setup Menu Item Description View up to 500 data log points View Logs and active dissolved oxygen and temperature calibrations Setup Menu Set the export type as computer Log Export Type or printer or turn export off Send all saved data logs and Export All Logs calibration logs to the selected export device... -
Page 13: Setup Menu Items
If desired, press the “Log/Export” key to export the individual data log point being viewed. Press the “Menu” key to return to the main Setup Menu list. Press the “Enter” key to view the display log. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 14: Viewing The Calibration Log
3.2.1b Viewing the Calibration Log Press the “Enter” key to view the display log. Press key For the calibration log, press the or key to change the view from the date/time screen to the calibration data screen. If desired, press the “Log/Export”... -
Page 15: Log Export Type
Note: If a large amount of data is exported, the meter may take a few minutes to complete exporting all saved data logs and calibration logs to the selected device. Press the “Enter” key to save the change. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 16: Temperature Calibration Or Manual Temperature Input
3.2.4 Temperature Calibration or 3.2.4b Manual Temperature Input Manual Temperature Input When DO electrode without built-in ATC sensor is connected, use the Manual Temperature Input menu to 3.2.4a Temperature Calibration enter the sample temperature value, from -5.0 °C to 105.0 °C. When DO electrode with built-in ATC sensor is connected, Press the ... -
Page 17: Measure Mode
Press the or key to set the measure mode. Press the or key to set the DO resolution. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 18: Barometric Pressure Units
3.2.7 Barometric Pressure Units 3.2.8 Barometric Pressure Value Set the barometric pressure units as mmHg (mm mercury) Enter the barometric pressure value as 400.0 to 850.0 or bar. mmHg or 0.533 to 1.133 bar. The entered barometric pressure value is used for barometric pressure corrected Press the ... -
Page 19: Salinity Value
Press the “Enter” key to save the change. Menu list until the Read Type item is shown. Press the or key to set the read type. Press the “Enter” key to save the change. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 20: Timed Interval
3.2.11 Timed Interval 3.2.12 Calibration Due Alarm When Timed is set as the Read Type, set the time interval Set the calibration due alarm interval from 0 hours (off) to from 5 seconds to 60 minutes. This time interval is used to 168 hours. -
Page 21: Temperature Units
Press the or key to set the temperature units. Press the or key to set the date format. Press the “Enter” key to save the change. Press the “Enter” key to save the change. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 22: Set Date Value
3.2.15 Set Date Value b. Press the key to decrease by one year. Press and hold the key to quickly decrease. Set the month, day and year values. Press the “Enter” key to save the change. The date format used for this Setup Menu item will match the setting in the Set Date Format item. -
Page 23: Set Time Value
Press and hold the key to quickly increase. b. Press the key to decrease by one minute. Press and hold the key to quickly decrease. Press the “Enter” key to save the change. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 24: Sleep Mode
3.2.18 Sleep Mode 3.2.19 Clear Data Set the sleep mode on or off. When the meter sleep mode Erase all data logs or erase all calibration logs is on, the meter will enter sleep mode when no keys are Press the or key to scroll through the Setup pressed for 20 minutes. -
Page 25: Factory Reset
Press the “Enter” key again to ensure all meter data is not accidentally erased. The meter will confirm when the factory reset is fully complete. The meter will restart and then return to the measurement screen. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 26: Chapter 4
Calibration Error Calibration Error 4.1.1 DO Calibration Overview 4.1.2 DO Cal. Procedure for 100% The Orion Lab Star DO113 dissolved oxygen meter Saturation measures dissolved oxygen as percent saturation, dissolved oxygen as concentration in mg/L and dissolved Calibration of a DO electrode can be done quickly and oxygen as concentration in ppm. -
Page 27: Do Cal. Procedure For 0% Saturation
Note: Press the “Measure” key at any time to abort the Note: Press the “Measure” key at any time to abort the calibration and return to the main measure mode. calibration and return to the main measure mode. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 28: Do Calibration Example
4.1.5 DO Calibration Example The following is an example of a DO calibration for 100% percent saturation. Press the “Cal” key to start the DO calibration. The calibration type is shown. Rinse the DO electrode and place into the prepared The meter will proceed to the main measure mode. -
Page 29: Temperature Calibration
Press and hold the key to quickly decrease. Press the “Enter” key to save the change. Note: Press the “Measure” key at any time to abort the calibration and return to the main measure mode. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 30: Chapter 5
Chapter 5 5.2 DO Measurements The Orion Lab Star DO113 dissolved oxygen meter Measurements measures dissolved oxygen as percent saturation, dissolved oxygen as concentration in mg/L and dissolved oxygen as concentration in ppm. In the main measure mode, press and hold (long press) the 5.1 Read Types... -
Page 31: Data Viewing
LIMs, Putty, LabView, HyperTerminal or similar programs. a. To record the COM port location of the computer cable, use the computer’s Device Manager tool. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 32: Remote Commands
5.4.2 Remote Commands Remote Example Action Command Command Remote commands allow the meter to be interfaced with Prints the system computer software like LIMs and HyperTerminal. information including SYSTEM meter model, serial <CR> The remote engine receives input from the serial port and number, software processes it. -
Page 33: Software Update Procedure
Follow all prompts, including reviewing and accepting the licensing agreement, to start the software update. If any security warning messages appear, select the run software option. Set the interface parameters for running the software update program. Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 34: Chapter 6
Chapter 6 6.2 Measurement Troubleshooting Troubleshooting Reading is unstable, slow to stabilize • Clean electrode to remove build-up or contaminants • Replace DO electrode sensing membrane and 6.1 Meter Troubleshooting electrolyte solution • Ensure DO electrode is connected to the meter and Meter display not powering on: fully polarized •... -
Page 35: Meter Info
Up to ±5 ºC, up to ±9 ºF Protection class Features Display 5” backlit LCD Time and Date Time format 12 hour AM/PM or 24 hour Selectable, DD-MM-YYYY or MM- Date format DD-YYYY Read types Continuous, Auto-Read, Timed Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 36: Meter Dimensions
7.2 Meter Dimensions 7.3 Warranty This meter is supplied with a warranty against significant deviations in material and workmanship for a period of three (3) years from date of purchase. Electrode warranties are separate from the meter and differ based on the selected electrode. -
Page 37: Chapter 8
Any changes or modifications not expressly approved by • Polybrominated biphenyls (PBB) (0,1 %) the party responsible for compliance could void the user’s authority to operate the equipment. • Polybrominated diphenyl ethers (PBDE) (0,1 %) Orion Lab Star DO113 Dissolved Oxygen Meter... -
Page 38: Weee Compliance
Ulteriori informazioni sulla conformità di Thermo Fisher Scientific con queste Direttive, l’elenco delle ditte di riciclaggio nel Vostro paese e informazioni sui prodotti Thermo Scientific che possono essere utili alla rilevazione di sostanze soggette alla Direttiva RoHS sono disponibili sul sito http://www.thermofisher.com/ WEEE Compliance. -
Page 39: Chapter 9
Orion Lab Star DO113 dissolved oxygen bench meter with electrode stand, PC cable, universal LSTAR1130 power adapter Orion Lab Star DO113 dissolved oxygen bench meter kit, includes meter with electrode stand, PC cable, universal power adapter, 083005MD polarographic DO/ATC probe with calibration sleeve, LSTAR1135... - Page 40 Thermo Scientific Orion Lab Star DO113 Dissolved Oxygen Meter Scientists have trusted Thermo Scientific Orion Lab Products for over 60 years to provide them with accurate and reliable analytical testing instruments in the lab and in the field. Since 1962, Thermo Scientific Orion products have set the standard for quality in electrochemistry.
