Evaluating the ADMV4640 10.7 GHz to 12.7 GHz, Microwave Downconverter
FEATURES
Fully featured evaluation board for the ADMV4640
►
On-board
SDP-S
connector for SPI control
►
Simplified power-up with on-board LDO regulators
►
5 V operation
►
ACE
software interface for SPI control
►
EVALUATION KIT CONTENTS
EVAL-ADMV4640Z evaluation board
►
Mini USB to USB cable
►
SDP-S
controller board
►
EQUIPMENT NEEDED
5 V dc power supply
►
DC clips
►
RF signal generator
►
Spectrum analyzer
►
Power supply cables, 2.92 mm coaxial cables
►
PC for
ACE
software
►
DOCUMENTS NEEDED
ADMV4640 data sheet
►

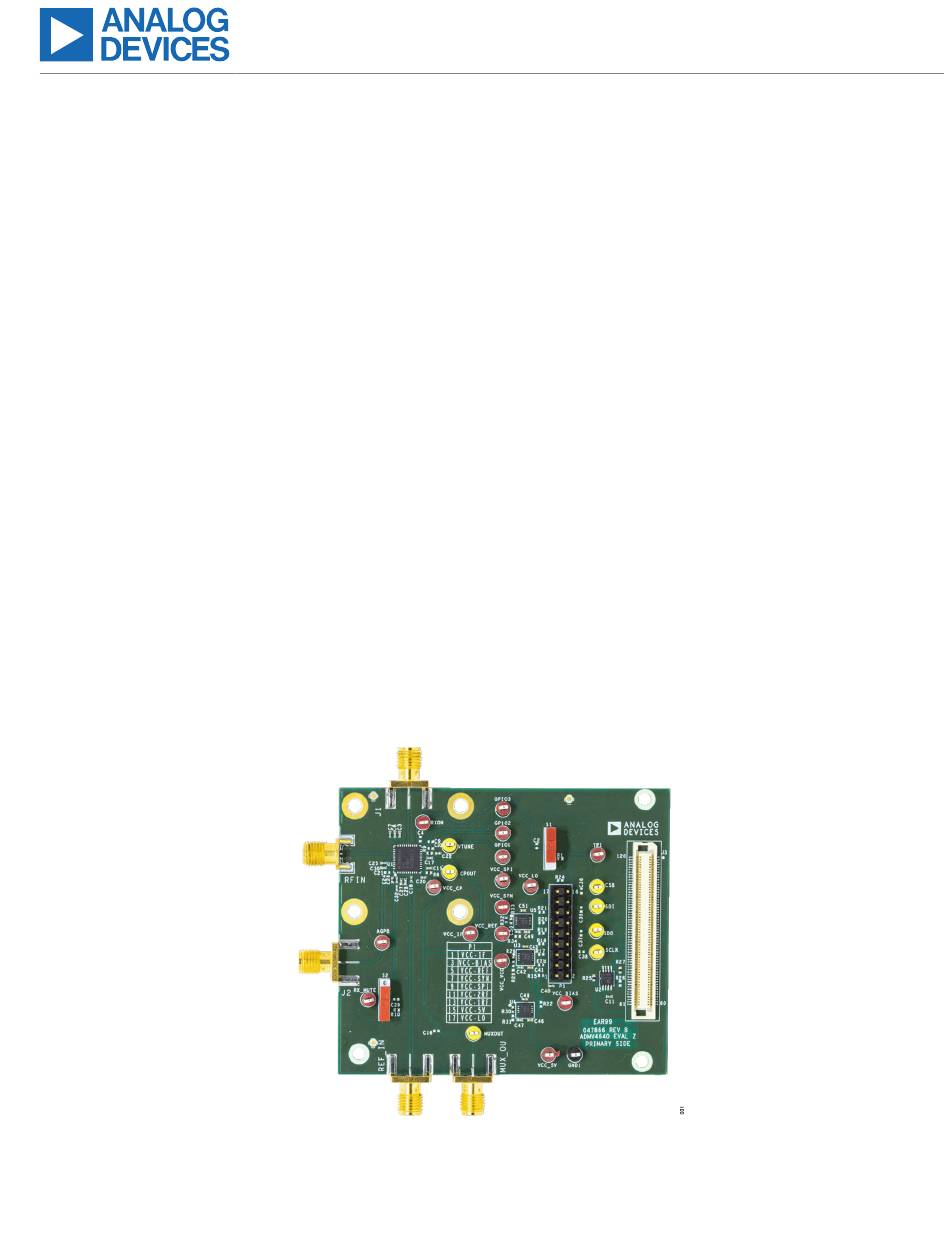

EVALUATION BOARD PHOTOGRAPH
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
User Guide | EVAL-ADMV4640
SOFTWARE NEEDED
ACE
software
►
ADMV4640 plugins
►
GENERAL DESCRIPTION
The EVAL-ADMV4640Z evaluation board incorporates the
ADMV4640, low dropout (LDO) regulators, and the
CS1Z
(SDP-S) controller board to allow simplified, efficient evalu-
ation of the ADMV4640. The
configuration of the ADMV4640 register map through the
Control, Evaluation
(ACE) software. The LDO regulators allow the
EVAL-ADMV4640Z to be powered by a 5 V single supply.
The ADMV4640 is a microwave downconverter optimized for vari-
ous satellite communication (SATCOM) user terminals operating in
the 10.7 GHz to 12.7 GHz frequency range.
The ADMV4640 downconverter comes in a compact, thermally
enhanced, 6 mm × 6 mm, 40-lead frame chip scale package
(LFCSP). The ADMV4640 operates over the −40°C to +85°C case
temperature range.
For full details on the ADMV4640, see the
which must be consulted in conjunction with this user guide when
using the EVAL-ADMV4640Z.
Figure 1.
UG-1644
EVAL-SDP-
SDP-S
controller board allows the
Analysis,
ADMV4640
data sheet,
Rev. A | 1 of 10
