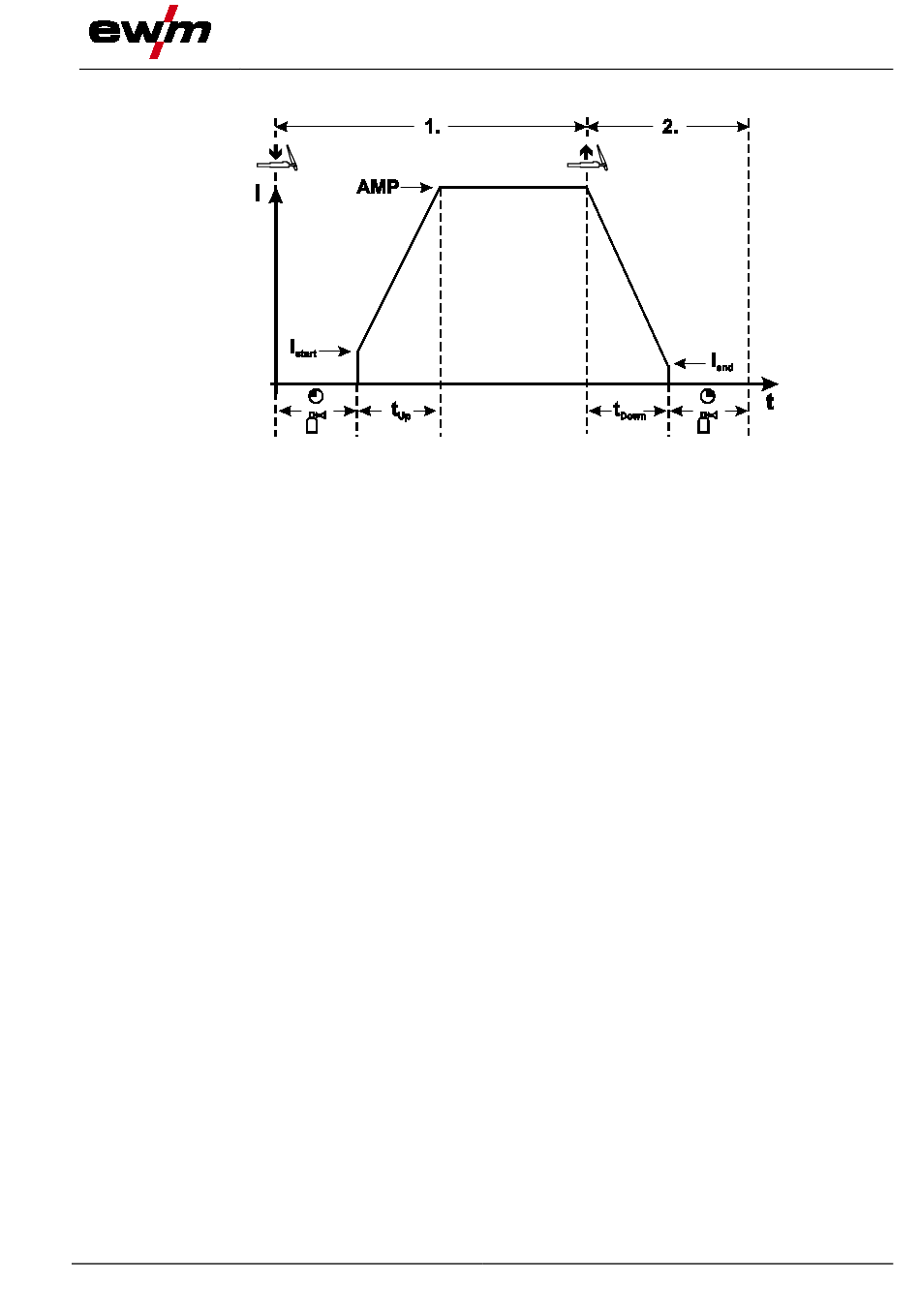

Non-latched mode
1st cycle
• Press and hold torch trigger.
• Shielding gas is expelled (gas pre-flows).
The arc is ignited using liftarc.
• The welding current flows with the value set for the starting current I
• Welding current increases to the main current in the set upslope time.
2nd cycle
• Release torch trigger.
• The main current falls in the set downslope time to the end-crater current I
If the torch trigger is pressed again during the downslope time,
the welding current returns to the set main current!
• The main current reaches the end-crater current I
• Gas post-flow time elapses.
099-M183xA-EW501
15.7.2022
Functional characteristics
Figure 5-25
start
, the arc extinguishes.
end
TIG welding
.
.
end
