EWM M1.83-A-1 Operating Instructions Manual page 15

Item Symbol
8
9
10
11
12
13
14
099-M183xA-EW501
15.7.2022

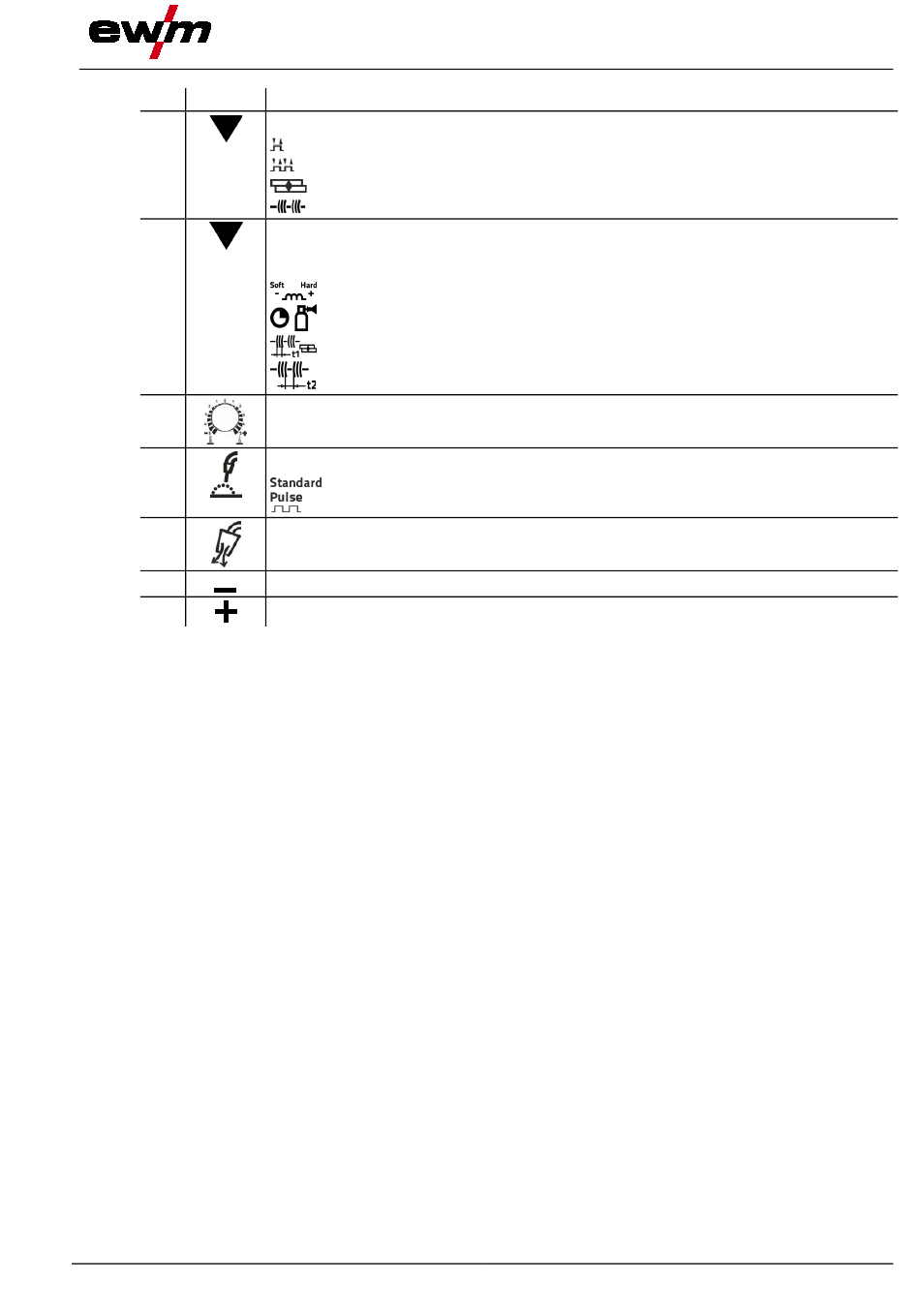

Machine description – quick overview
Description 0
Operating mode button
---------- Non-latched
-------- Latched
----- Spots
------ Interval
Runtime parameters button
For selecting the parameters to be set. Also for entering and exiting the menus for ad-
vanced settings.
---- Choke effect/dynamics
---- Gas post-flow time
---- Spot time
---- Pause time
Rotary knob for correcting the arc length (voltage correction)
Push-button for welding type
--- Standard arc welding
------ Pulsed arc welding
Push-button gas test / rinse hose package > see 5.1 chapter
Signal light polarity setting
Signal light polarity setting
Documents which also apply
15
