Machine description – quick overview
Documents which also apply
4 Machine description – quick overview
Item Symbol
1
2
3
4
5
6 JOB-
LIST
7
14
Description 0
"Collective interference" signal light
"Excess temperature" signal light
Welding data display (3-digit)
Displays the welding parameters and the corresponding values > see 4.1 chapter
Push-button for welding parameter display mode / power-saving mode
--------- Welding current
--------- Material thickness
--------- Wire feed speed
Press for 2 s to put the machine into power-saving mode.
To reactivate, operate any control element > see 5.6 chapter.
Display, JOB
Shows the currently selected welding task (JOB number).
Welding task push-button (JOB)
Select the welding task from the welding task list (JOB-LIST). The list can be found in-
side the protective cap on the wire feeder and in the appendix to these operating in-
structions.
Welding parameter setting dial
For setting the welding performance, for selecting the JOB (welding task) and for set-
ting other welding parameters.

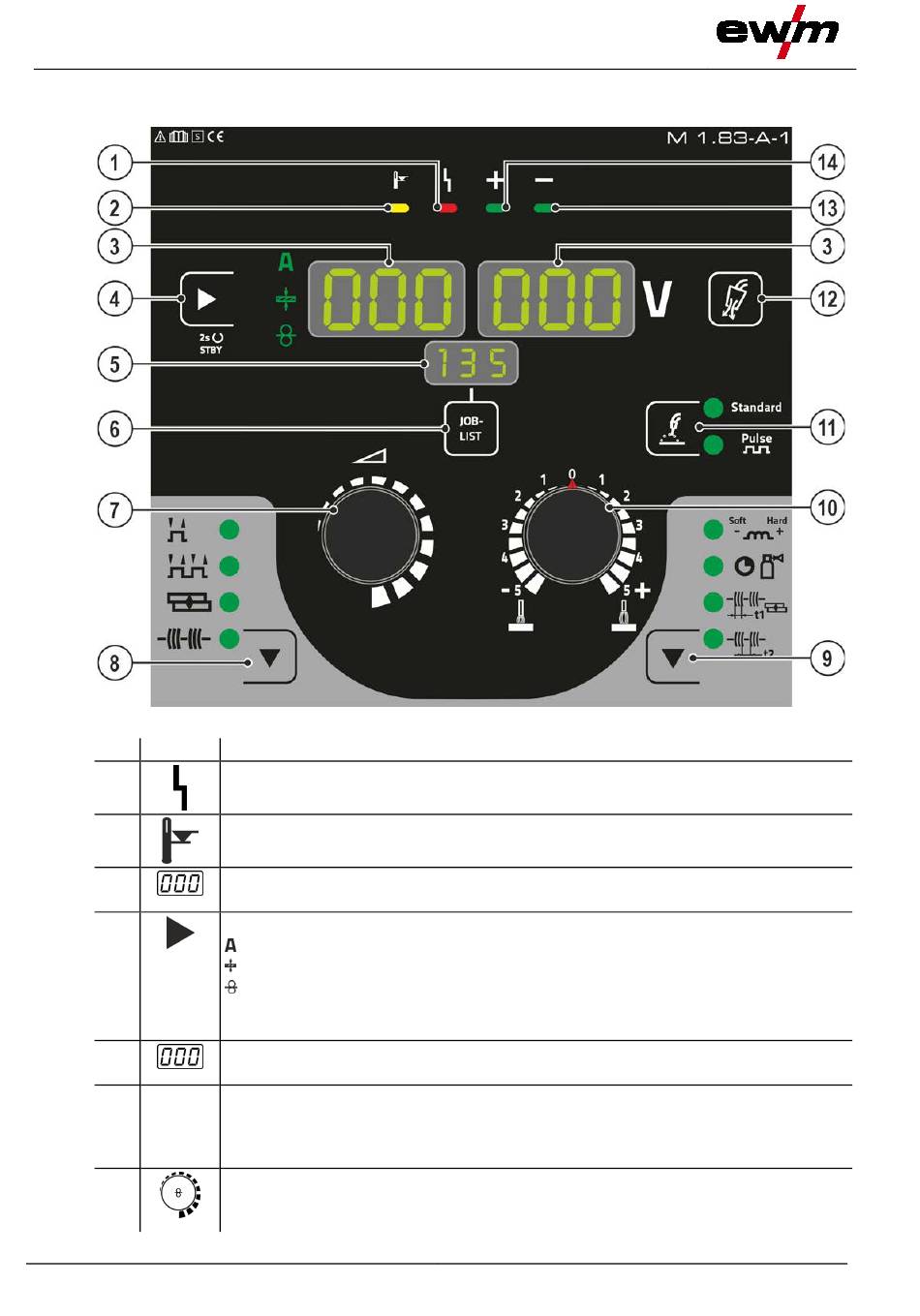

Figure 4-1
