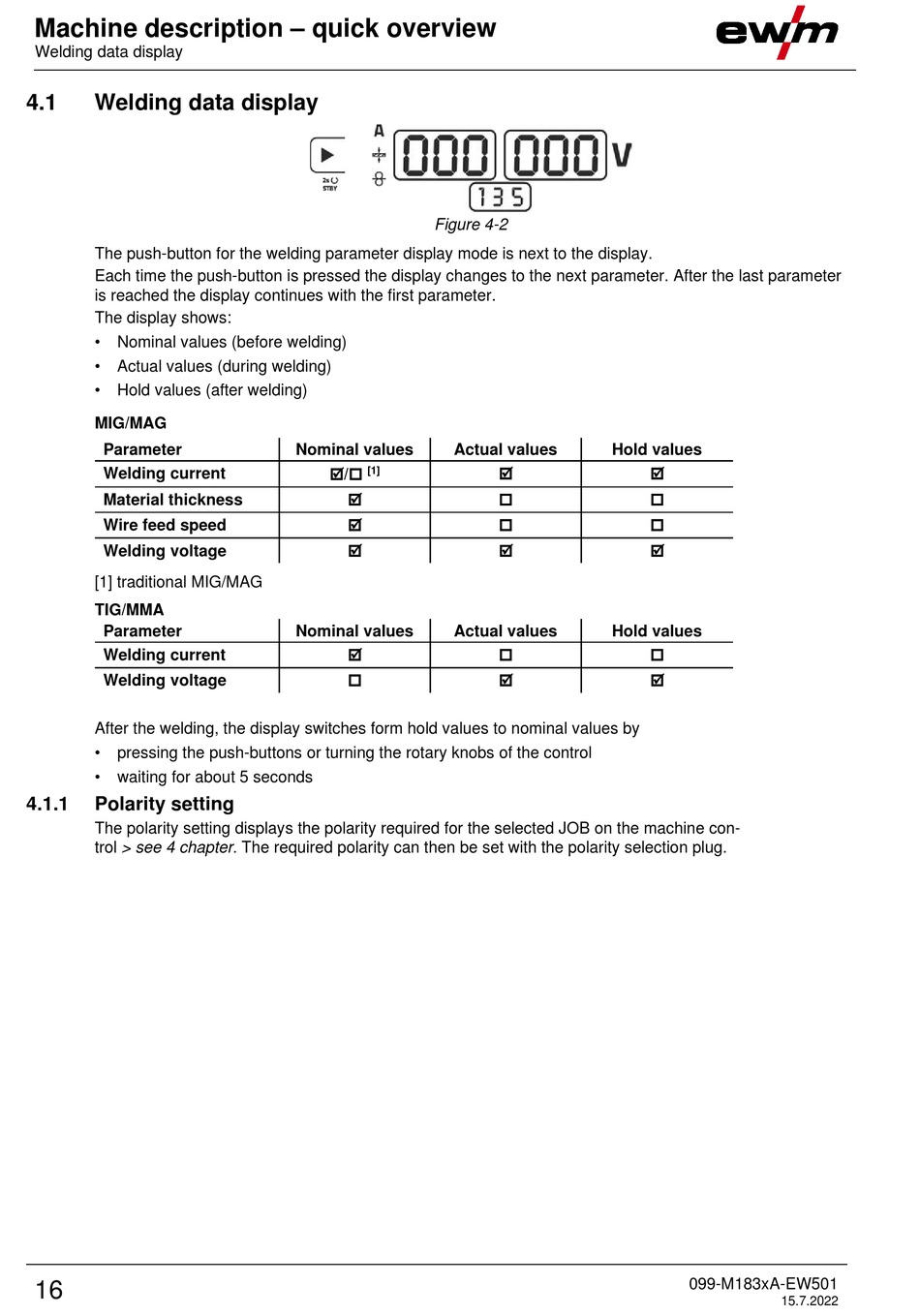

Machine description – quick overview
Welding data display
4.1
Welding data display
The push-button for the welding parameter display mode is next to the display.
Each time the push-button is pressed the display changes to the next parameter. After the last parameter
is reached the display continues with the first parameter.
The display shows:
•
Nominal values (before welding)
•
Actual values (during welding)
•
Hold values (after welding)
MIG/MAG
Parameter
Welding current
Material thickness
Wire feed speed
Welding voltage
[1] traditional MIG/MAG
TIG/MMA
Parameter
Welding current
Welding voltage
After the welding, the display switches form hold values to nominal values by
•
pressing the push-buttons or turning the rotary knobs of the control
•
waiting for about 5 seconds
4.1.1
Polarity setting
The polarity setting displays the polarity required for the selected JOB on the machine con-
trol > see 4 chapter. The required polarity can then be set with the polarity selection plug.
16
Figure 4-2
Nominal values
Actual values
/
[1]
Nominal values
Actual values
Hold values
Hold values
