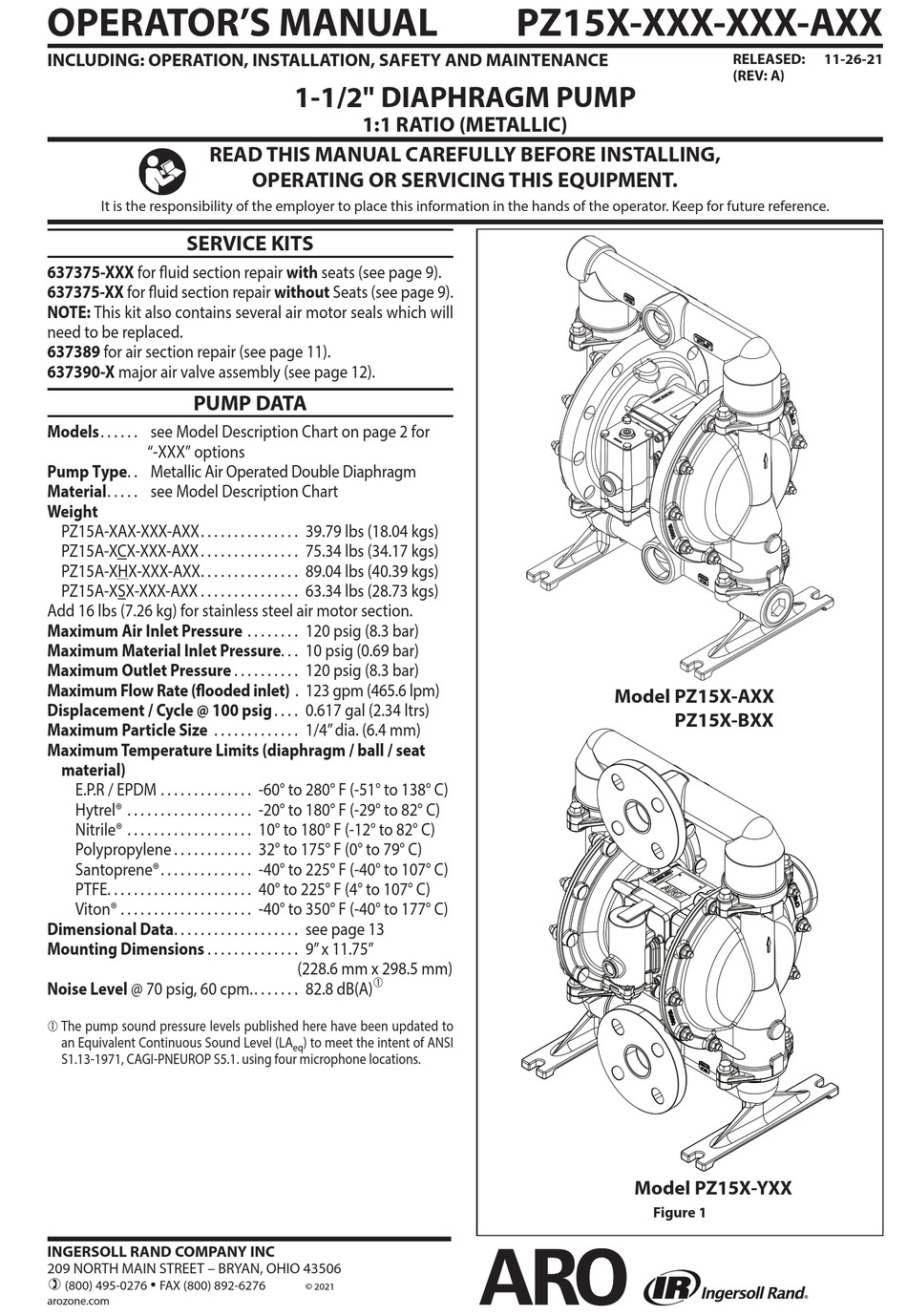

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION, SAFETY AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
637375-XXX for fluid section repair with seats (see page 9).
637375-XX for fluid section repair without Seats (see page 9).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637389 for air section repair (see page 11).
637390-X major air valve assembly (see page 12).
PUMP DATA
Models . . . . . . see Model Description Chart on page 2 for
"-XXX" options
Pump Type . . Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart
Weight
PZ15A-XAX-XXX-AXX . . . . . . . . . . . . . . . 39.79 lbs (18.04 kgs)
PZ15A-XCX-XXX-AXX . . . . . . . . . . . . . . . 75.34 lbs (34.17 kgs)
PZ15A-XHX-XXX-AXX . . . . . . . . . . . . . . . 89.04 lbs (40.39 kgs)
PZ15A-XSX-XXX-AXX . . . . . . . . . . . . . . . 63.34 lbs (28.73 kgs)
Add 16 lbs (7.26 kg) for stainless steel air motor section.
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) . 123 gpm (465.6 lpm)
Displacement / Cycle @ 100 psig . . . . 0.617 gal (2.34 ltrs)
Maximum Particle Size . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
E.P.R / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Nitrile® . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 32° to 175° F (0° to 79° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 13
Mounting Dimensions . . . . . . . . . . . . . . 9" x 11.75"
Noise Level @ 70 psig, 60 cpm. . . . . . . . 82.8 dB(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1. using four microphone locations.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1-1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
(228.6 mm x 298.5 mm)
) to meet the intent of ANSI
eq
© 2021
PZ15X-XXX-XXX-AXX
Model PZ15X-AXX
PZ15X-BXX
Model PZ15X-YXX
Figure 1
RELEASED:
11-26-21
(REV: A)
