Commercial Electric 0018-0005 Use And Care Manual

Commercial Electric 0018-0005 Use And Care Manual

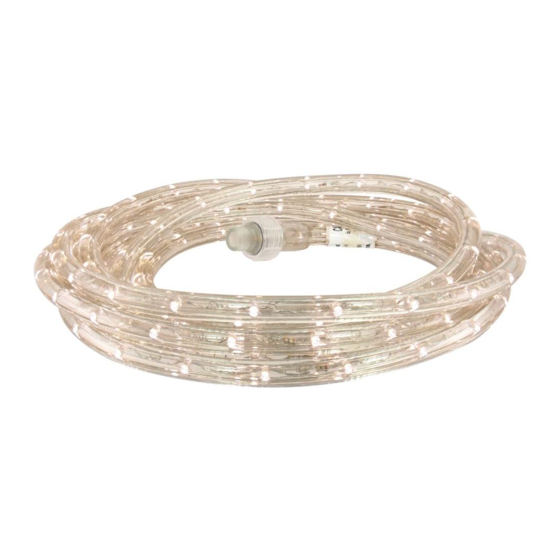

18 ft. led rope light kit

Advertisement

Quick Links

Ensure that all rope lights unplugged
before adding additional rope lights to
the series.
Turn the end cap (1) on the last LED
rope light in the series counterclockwise
and remove it.
Remove the power cord (2) from the
extension LED rope light (A).
Extend up to 198ft maximum. Use only
the following Commercial Electric rope
light extension segments: 718473 or
716691.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
All manuals and user guides at all-guides.com
Connect the last LED rope light in the
series and the extension LED rope light
(A) together by plugging the male and
female portions together.
Ensure the connections are tightly
secured.
Attach the end cap (1) to the last LED
rope light in the series and ensure the
connection is secure.
0.08A.
198
Insert the screws (C) through the
openings in the mounting clips (B).
Screw the mounting clips (B) into
position at the installation location.
Ensure that each clip is evenly spaced
apart and at least 1 cm apart from the
other mounting clips.
Place the rope lights (A) securely into
the mounting clips (B).
Mounting clips should be evenly spaced
and be a maximum of 3 ft (0.91m)
apart.
Make sure that the distance between
two lines of rope light is at least 1/2"
(12mm).
SJOW, SJTW
Item # 716691
Model # 0018-0005
