Item #1003 953 046
Model #CFL65-PC-GR

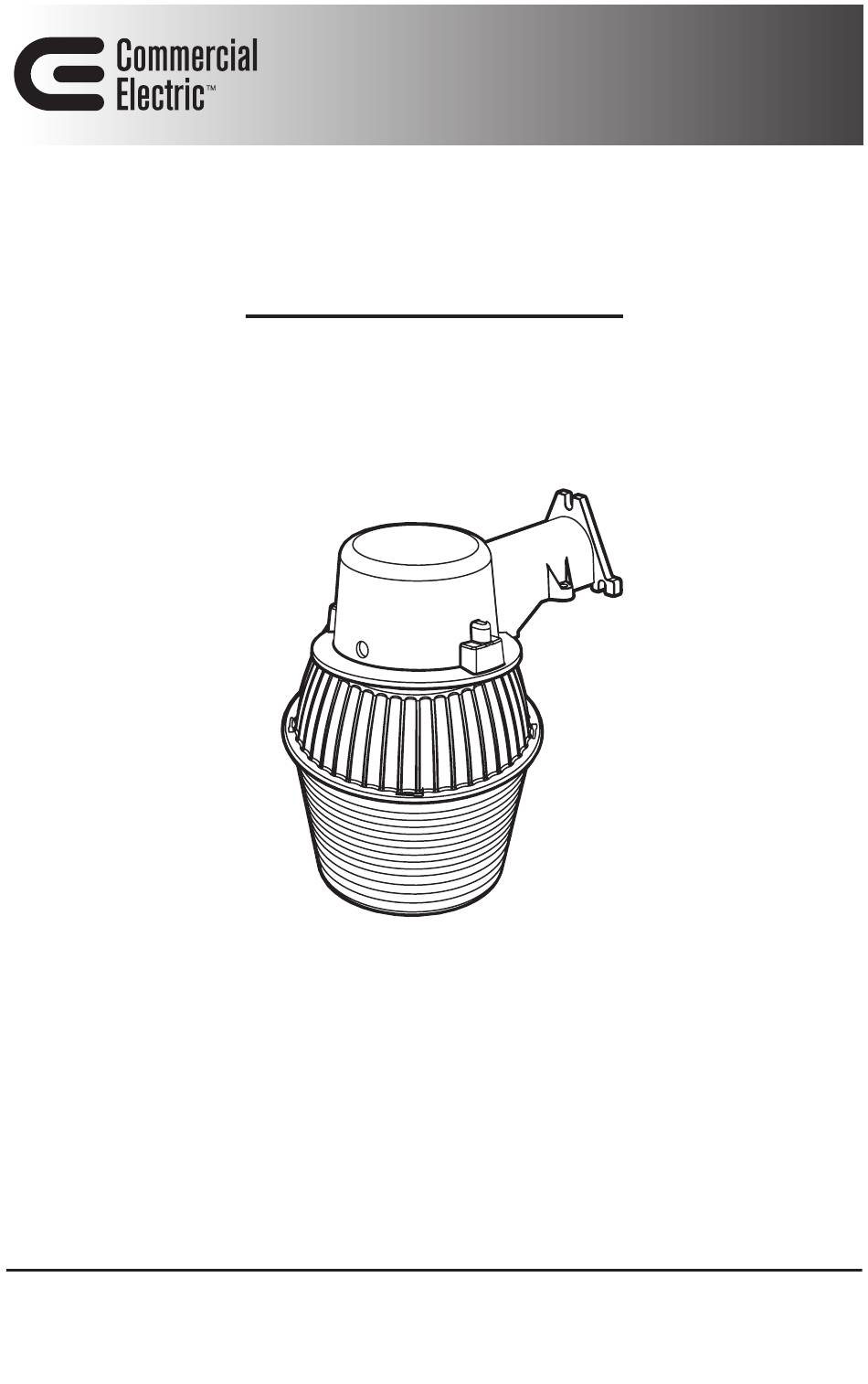

USE AND CARE GUIDE
ASTRA CFL AREA LIGHT
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
9 a.m. - 5 p.m., EST, Monday - Friday
1-844-548-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this CFL
area light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Related Manuals for Commercial Electric CFL65-PC-GR
Summary of Contents for Commercial Electric CFL65-PC-GR
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this CFL area light. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
-
Page 2: Table Of Contents
Table of Contents Safety Information .............2 Installation ..............5 Warranty..............2 Operation..............9 Pre-Installation ............3 Care and Cleaning .............9 Preparing for Installation ..........5 Troubleshooting ............10 Safety Information IMPORTANT WARNING: Risk of fire. Keep the light fixtures at least THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE 3 in. -
Page 3: Pre-Installation
Warranty (continued) LIMITATION OF LIABILITY In no event shall the manufacturer be liable for indirect, consequential, incidental or special damages, or lost profits. The manufacturer is not liable for any claims or damage arising out of or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of the manufacturer products, or supply of any replacement parts that exceed the purchase price of the manufacturer products giving rise to a claim. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Hex head lag bolts Wire nut Rubber grommet PACKAGE CONTENTS Part Description Quantity Light fixture Photocell lens Wire cover plate Fixture arm Reflector CFL Light (MXCFL65)
-
Page 5: Preparing For Installation
Preparing for Installation Review this information to ensure a successful installation: □ Install the light 12–30 ft. above the ground. □ When mounting the fixture, ensure the photocell is in an area that receives daylight and is not too close to reflective surfaces in order to ensure successful Dusk-to-Dawn operation. - Page 6 Installation (continued) Preparing for mounting the fixture Wall Mount NOTE: The fixture comes with the wire guard protection plate (C) already installed on the fixture arm (D). □ Remove the wire guard protection plate (C) from the arm (D) of the fixture by loosening the screws.
- Page 7 Installation (continued) Making the electrical connections Wall Mount □ Place rubber grommet (CC) into the hole of the wire cover plate before threading wires through. □ Thread the wires through the hole in the wire cover plate (C) before making wiring connections.
- Page 8 Installation (continued) Installing the reflector Preparing the reflector for installation □ Place the hooks from the bottom part of the lens reflector (E) into the holes provided in the upper part of the reflector’s (E) rim and twist the bottom lens to fit. □...
-
Page 9: Operation
Operation DUSK-TO-DAWN OPERATION Dusk-to-dawn operation enables the light fixture to automatically turn ON when dark outside and turn OFF when the sun rises, thus saving you energy. □ To allow normal dusk-to-dawn operation ensure the photocell (B) is unobstructed. □ Ensure the switch powering the outlet connected to the light fixture is turned to the ON position and leave it ON at all times to... -
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause Solution □ Check if circuit breaker is tripped. There is no power to □ Confirm wall switch is ON. Verify wiring to the fixture is correct the fixture. The light does not (turn power OFF to fixture beforehand). turn ON. - Page 11 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 9 a.m. - 5 p.m., EST, Monday-Friday 1-844-548-3776 HOMEDEPOT.COM Retain this manual for future use.
